The composite panels made have good performance in insulation, attractive surface flatness, light weight, high strength, etc.
Specifications:

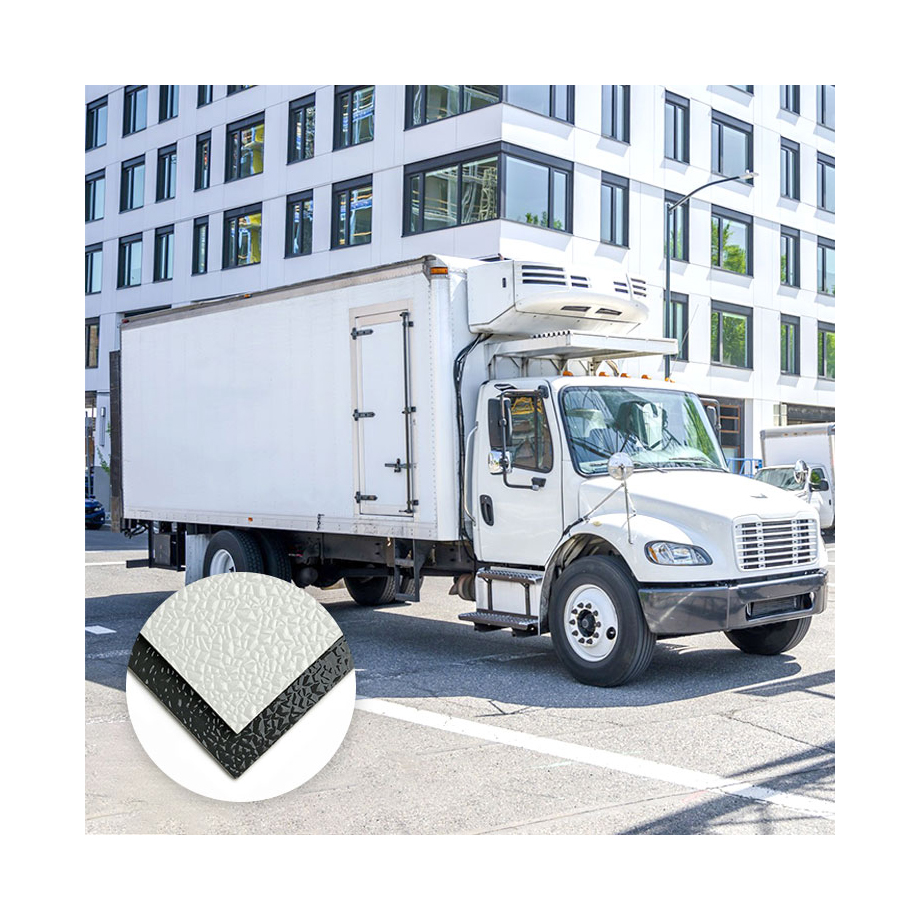

Applications: Mainly used in RV, logistic boxes, refrigerated vehicles, etc.

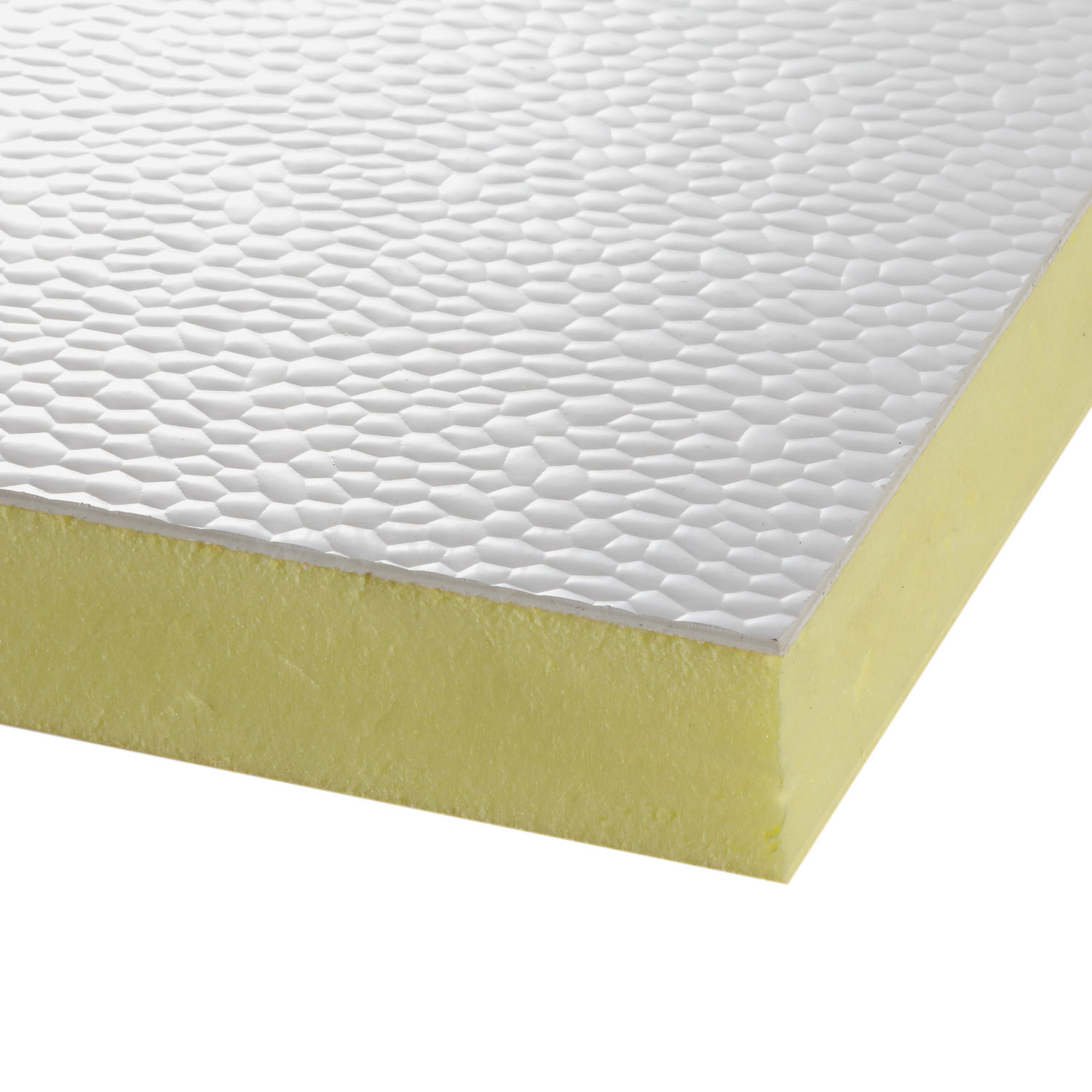

| Item | FRP PU composite panel |
|---|---|
| Core Material | PU Foam, Polyurethane Foam |
| FRP skin | 1.0-3.0MM |
| Core | 10-150MM |
| Width | Max 3200MM |
| Length | Max 16500MM |
| Color | White/colored |
| Thickness (mm) | Weight (kg/㎡) |
| 30 | 10.5 |
| 45 | 11 |
| 70 | 12.5 |
| 105 | 13.5 |
| 130 | 15 |
| Main Performance Data (PU) | |||
|---|---|---|---|
| No | Item | Test Results | Test Method |
| 1 | Flat compressive strength | ≥0.18MPa | GB/T1453 |
| 2 | Edgewise compressive strength | ≥2.0MPa | GB/T1454 |
| 3 | Tensile strength | ≥0.85MPa | GB/T1452 |
| 4 | Barcol hardness | ≥42 | GB/T3854 |
| 5 | Thermal conductivity | ≤0.025W/m.k | GB/T10295 |
| Note: FRP I beam is used in panels for tensile strength test while no I beams in panels in compressive strength tests. Test conditions of thermal conductivity: 25℃ average temperature and 15℃ temperature difference. | |||

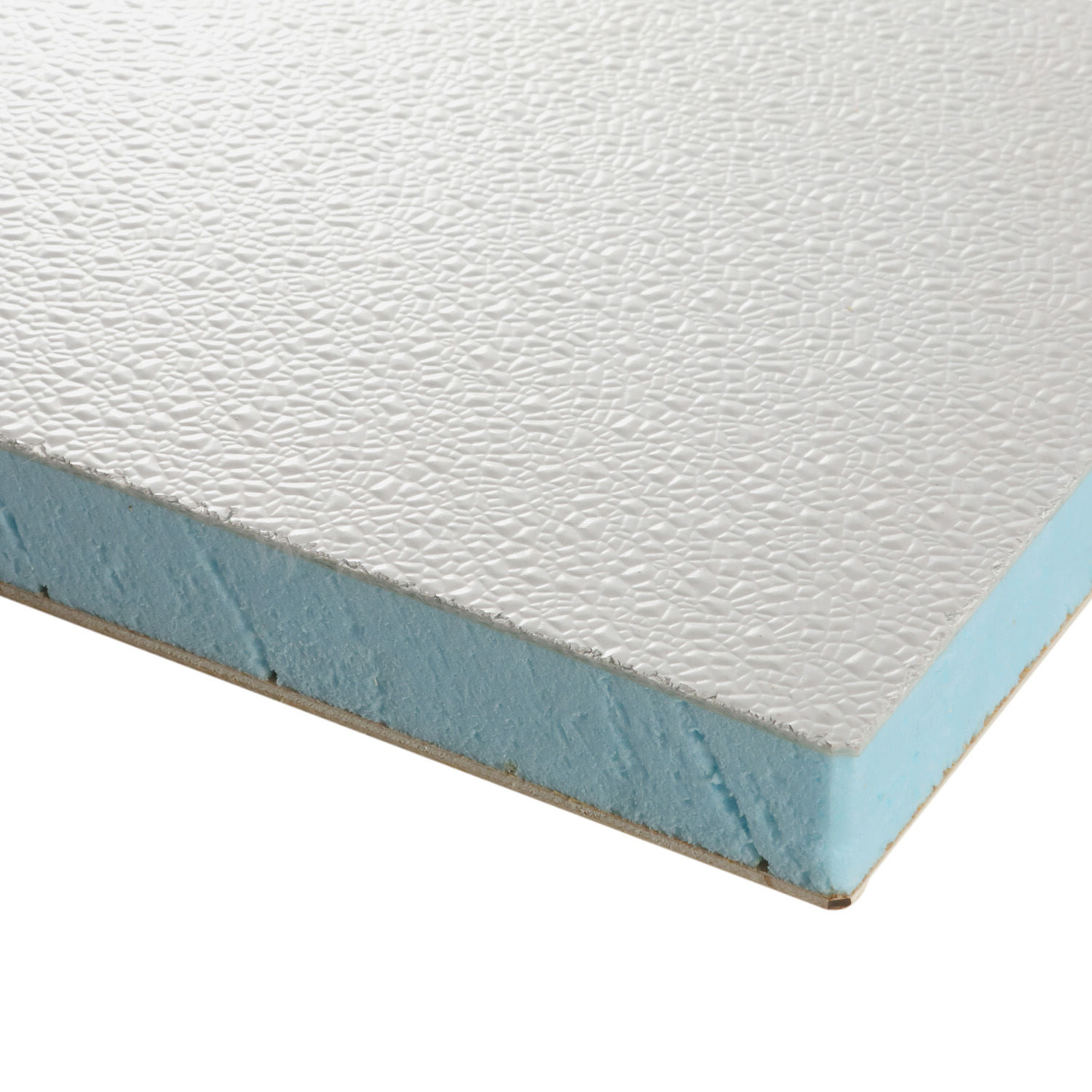

| Item | FRP XPS composite panel |
|---|---|
| Core Material | XPS foam, Extrude Polystyrene |
| FRP skin | 1.0-3.0MM |
| Core | 10-150MM |
| Width | Max 3200MM |
| Length | Max 16500MM |
| Color | White/colored |
| Thickness (mm) | Weight (kg/㎡) |
| 50 | 8.35 |
| 60 | 8.7 |
| 70 | 9.05 |
| 80 | 9.4 |
| Main Performance Data (XPS) | |||
|---|---|---|---|
| No | Item | Test Results | Test Method |
| 1 | Flat compressive strength | ≥0.25MPa | GB/T1453 |
| 2 | Edgewise compressive strength | ≥2.0MPa | GB/T1454 |
| 3 | Tensile strength | ≥0.75MPa | GB/T1452 |
| 4 | Barcol hardness | ≥42 | GB/T3854 |
| 5 | Thermal conductivity | ≤0.03W/m.k | GB/T10295 |

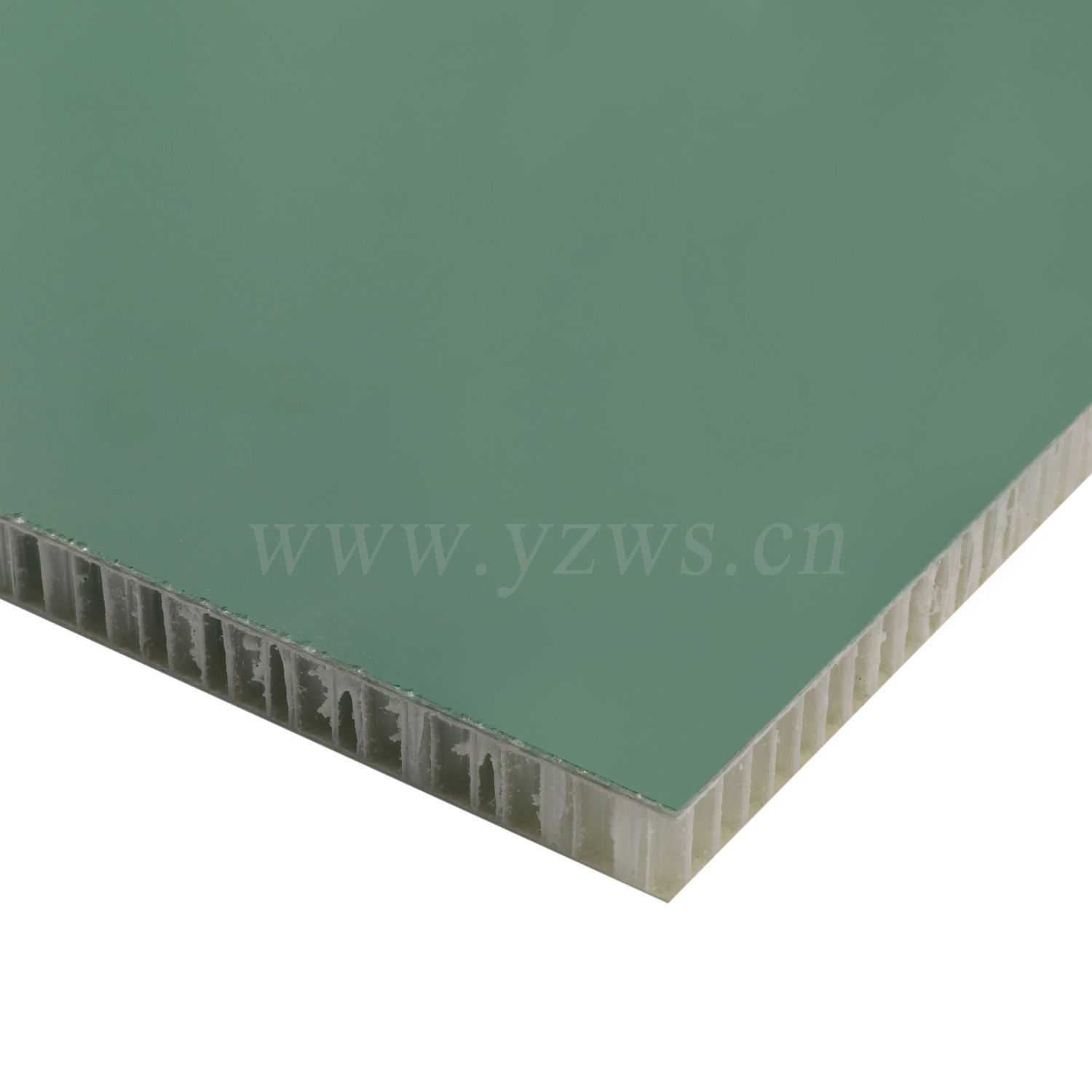

| Item | FRP PP composite panel |
|---|---|
| Core Material | PP Honeycomb |
| FRP skin | 1.0-3.0MM |
| Core | 10-100MM |
| Width | Max 3200MM |
| Length | Max 16500MM |
| Color | White/colored |
| Thickness (mm) | Weight (kg/㎡) |
| 15 | 7.5 |
| 18 | 8 |
| 21 | 8.5 |
| Main Performance Data (PP) | |||
|---|---|---|---|
| No | Item | Test Results | Test Method |
| 1 | Static strength | ≥25MPa | GB/T17657 |
| 2 | Elastic modulus | ≥2000MPa | |
| 3 | Flat compressive strength | ≥1.2MPa | GB/T1453 |
| 4 | Edgewise compressive strength | ≥10.5MPa | GB/T1454 |
| 5 | Tensile strength | ≥0.5MPa | GB/T1452 |
| 6 | Barcol hardness | ≥42 | GB/T3854 |

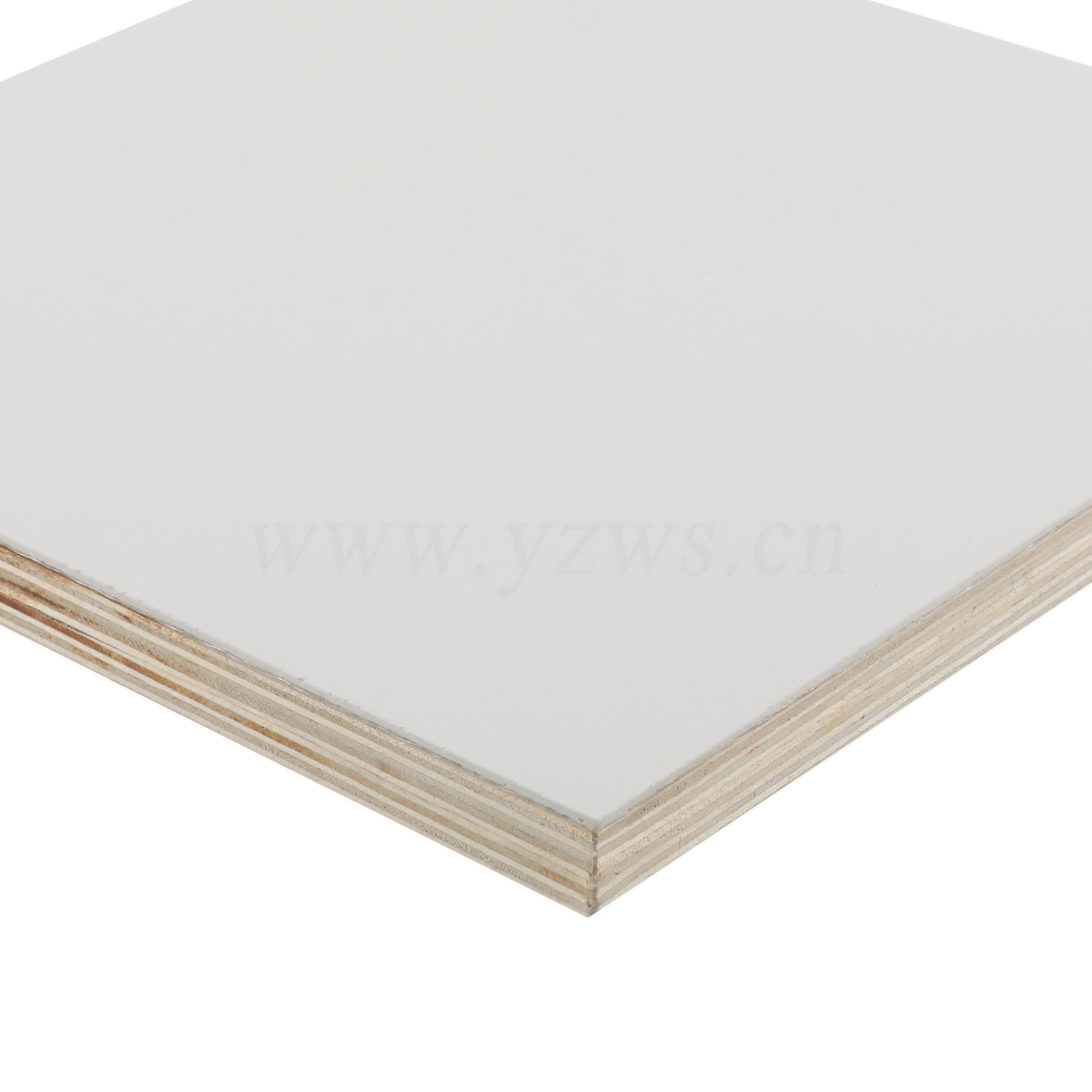

| Item | FRP Plywood composite panel |
|---|---|
| Core Material | Plywood |
| FRP skin | 1.0-3.0MM |
| Core | 10-100MM |
| Width | Max 3200MM |
| Length | Max 16500MM |
| Color | White/colored |
| Thickness (mm) | Weight (kg/㎡) |
| 15 | 12 |
| 18 | 14 |
| 21 | 16 |
| Main Performance Data (Plywood) | ||||
|---|---|---|---|---|
| No | Item | Test Results | Test Method | |
| 1 | Static strength | Along wood grain | ≥60MPa | GB/T17657 |
| Cross wood grain | ≥50MPa | |||
| 2 | Elastic modulus | Along wood grain | ≥6000MPa | |
| Cross wood grain | ≥4800MPa | |||
| 3 | Edgewise compressive strength | ≥35MPa | GB/T1454 | |
| 4 | Flat tension strength | ≥1.2MPa | GB/T1452 | |
| 5 | Barcol hardness | ≥42 | GB/T3854 | |
| 6 | Water boiling Test | No delamination in 72-hour water boiling | GB/T17567 | |
Shelter
Caravan
Camper
Ambulance
Travel trailer
Refrigerator truck
Dry Cargo Van
Tank Truck
Incubator

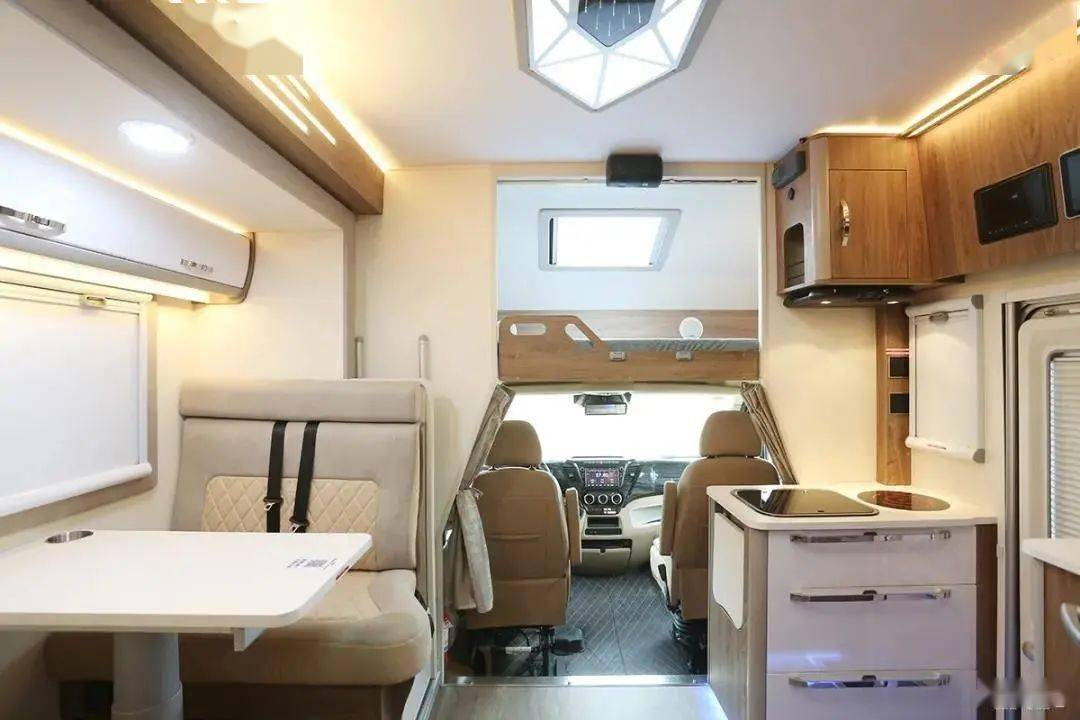

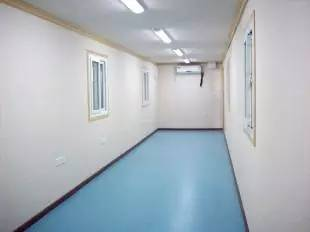

Internal wall panel
