Select high-performance building envelope designs engineered to exceed modern energy and structural specifications.
Ningbo Jonas Build Co., Ltd. is a professional China industrial construction panel manufacturer specializing in insulated building panel solutions for global industrial and commercial construction projects. With extensive industry experience and advanced manufacturing capabilities, the company is committed to delivering high-quality, energy-efficient, and customized panel systems that meet the diverse requirements of customers worldwide.
The company provides a comprehensive range of products, including insulated sandwich panels, industrial wall panels, roofing panels, cold room panels, cleanroom panels, fire-rated panels, and customized building envelope solutions. Designed for superior thermal performance, structural reliability, and rapid installation, these products are widely used in industrial plants, warehouses, logistics centers, cold storage facilities, commercial buildings, modular construction projects, and infrastructure developments.
Sustainability Directive: By utilizing advanced production technologies and premium raw materials, Jonas Build continuously enhances product performance in thermal insulation, fire resistance, weather protection, and energy efficiency.
Covering project consultation, custom structural drawing reviews, manufacturing, rigorous QA, and global logistics coordination.
Ningbo Jonas Build Co., Ltd. operates modern production facilities equipped with advanced automated manufacturing lines, precision processing equipment, and strict quality inspection systems.
Establishing long-term business relationships across Asia, Europe, the Middle East, Africa, and the Americas, facilitating optimized delivery lead times.
Understanding the core parameters of insulation density, thermal conductivity, and fire protection is critical for engineers and procurement directors.
Features low thermal conductivity (λ ≈ 0.020-0.022 W/m·K), excellent mechanical strength, lightweight build, and B1 class fire retardancy. Ideal for temperature-controlled cold storages and clean rooms.
Non-combustible core (Class A1), delivering optimal passive fire safety for high-risk buildings. Provides acoustic damping properties along with robust industrial longevity.

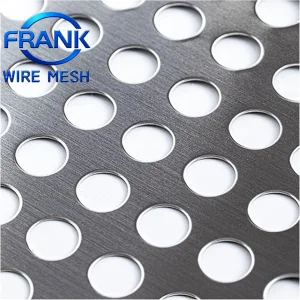

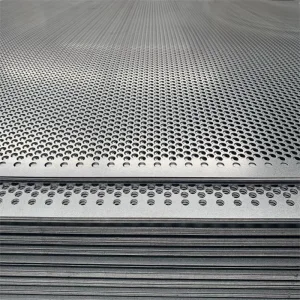

Aluminum alloy skin with precision-pattern laser cuts or punches. Combined with internal acoustic fleece for high-end exterior aesthetics and noise attenuation.
| Insulation Core Type | Density (kg/m³) | Thermal Conductivity (W/m·K) | Fire Classification | Primary Industrial Applications |
|---|---|---|---|---|
| PIR (Polyisocyanurate) | 38 - 42 | 0.020 - 0.023 | Class B-s1, d0 (EN 13501-1) | Cold Rooms, Pharmaceutical Warehouses, Food Processing Plants |
| PUR (Polyurethane) | 38 - 40 | 0.022 - 0.024 | Class B2 (DIN 4102) | Commercial Roofs, Modular Offsite Construction, External Walls |
| Rockwool (Mineral Wool) | 100 - 120 | 0.038 - 0.044 | Class A1 / A2 (Non-Combustible) | Power Stations, High-temperature Facilities, Firewalls, Acoustic Enclosures |
| EPS (Expanded Polystyrene) | 16 - 20 | 0.035 - 0.038 | Class B2 / B3 | Economic Warehouses, Temporary Housing, Standard Cladding Projects |
By manufacturing within the industrial cluster of Ningbo, Jonas Build harnesses a dense supply network of raw materials, premium galvanized steel coils, fluorocarbon coatings, and top-tier chemical systems. Our production facility implements computerized tracking and continuous double-belt production line technologies that ensure millimeter-level accuracy across length, width, and locking tongue tolerances.
This technological framework dramatically reduces material wastage, enhances panel flatness, and avoids core delamination over decades of thermal cycling. Our continuous automatic PU/PIR foaming process operates with zero ozone depletion potential (ODP) blowing agents, complying with stringent global eco-management frameworks.
Industrial projects require wall envelope solutions that match specific sector rules. At Jonas Build, we engineer distinct structural answers:
As structural engineering pushes toward zero-carbon benchmarks and smart architecture, Jonas Build is developing future-ready envelope technologies.
Phasing in agricultural-byproduct based polyols to replace fossil resources. This drastically reduces initial embodied carbon levels without degrading R-value performances.
Researching phase-change material (PCM) integration into the inner skin layer. Undergoing latent heat absorption during peak daylight hours, reducing HVAC load cycles.
Testing continuous sensor inserts inside panel joints. These micro-sensors monitor moisture infiltration, structural drift, and insulating degradation in real time.
Global projects face distinct building codes. Ningbo Jonas Build Co., Ltd. manages engineering support for varying wind loads, seismic classifications, and localized regulatory regimes.
From wind load calculations to localized customs procedures, we configure complete logistics packs including detailed packing lists, shipping certifications, structural span guides, and mill test certificates.
We verify the physical characteristics of all outgoing panels inside our testing lab:
Ensuring architectural perforated cladding panels match client sound absorption coefficient values (NRC).
Confirming physical load-span variables to withstand regional pressure/suction gusts.
Simulating UV exposure, humidity cabinets, and chemical resistance cycles to confirm panel skin life expectancy.
Technical and logistical insights to assist structural engineers, developers, and global supply managers.
PIR (polyisocyanurate) is an advanced chemical variation of PUR (polyurethane). Standard PUR panels show decent insulation, but PIR provides superior fire performance. When exposed to fire, PIR forms a protective carbon char layer that limits flame propagation, allowing it to meet higher international fire certification standards (such as Class B-s1, d0).
Our cold storage metal wall panels feature factory-applied tongue-and-groove joint systems paired with continuous vapor seals. By eliminating metal-to-metal contact through the joint's depth, we stop heat transmission. This design maintains consistent temperatures, prevents internal condensation, and decreases cooling costs.
Yes. Ningbo Jonas Build Co., Ltd. provides customized envelope solutions. We configure face steel thickness (ranging from 0.4mm up to 0.8mm), sheet profile textures (micro-ribbed, flat, wave-profile), decorative laminates (like marble or wood textures), and specific core thicknesses (from 50mm to 300mm) to align with thermal and aesthetic parameters.
For marine or high-humidity environments, we use PVDF (polyvinylidene fluoride) or HDP (high-durability polyester) coatings on galvanized steel sheets. These specialized coat layers offer superior resistance to corrosion, chemical exposure, and UV rays, ensuring long-term color retention and surface protection.
Standard production lead times are between 15 to 25 days depending on project size and specifications. Located near Ningbo Port, one of the world's largest logistics hubs, we arrange efficient ocean shipping to minimize global delivery timelines.

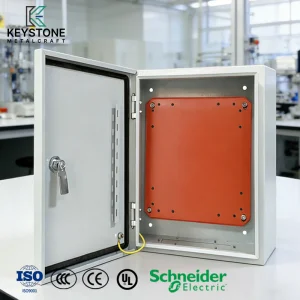

Explore specialized insulation panels, acoustic screens, and distribution wall products manufactured to ISO quality standards.
