| Parameter Item | Technical Index | Description |
|---|---|---|

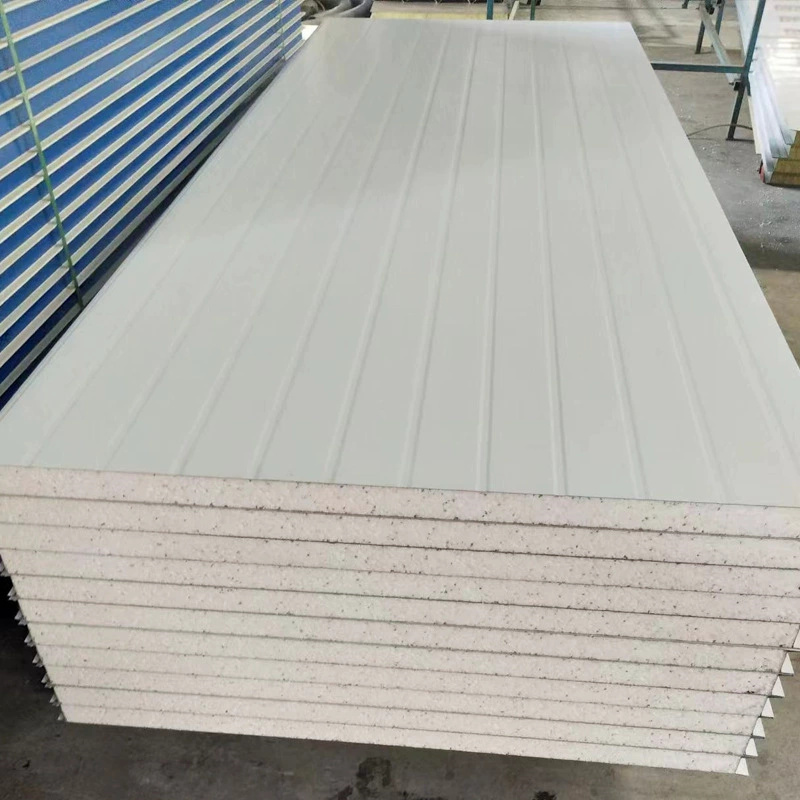

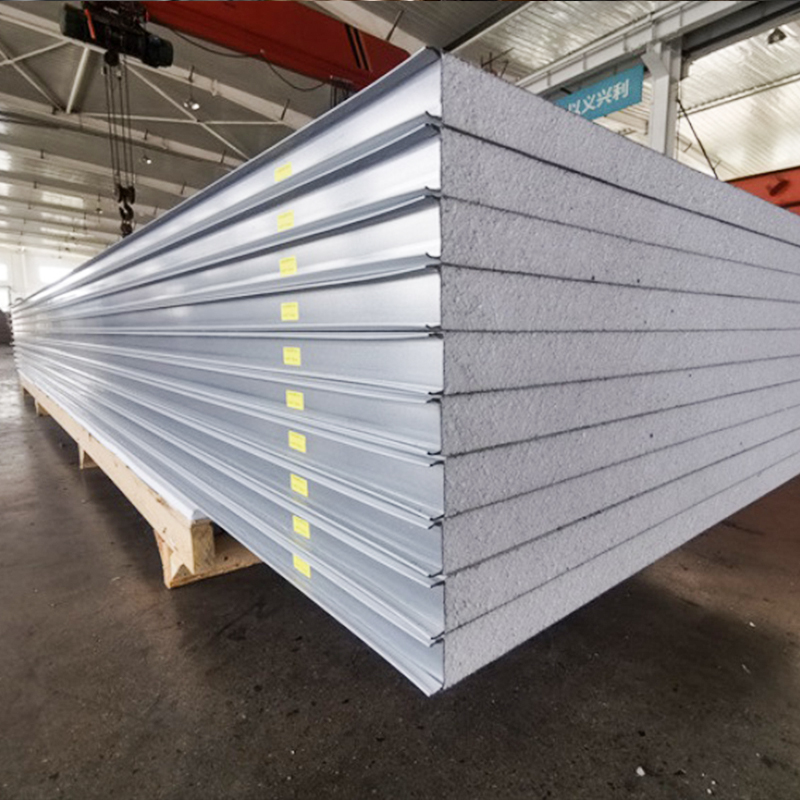

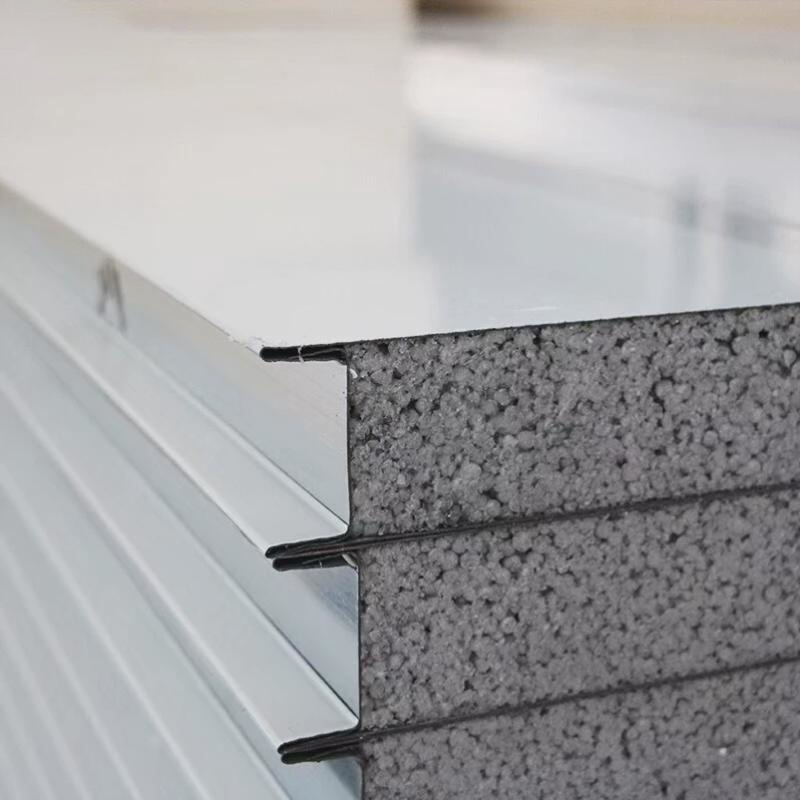

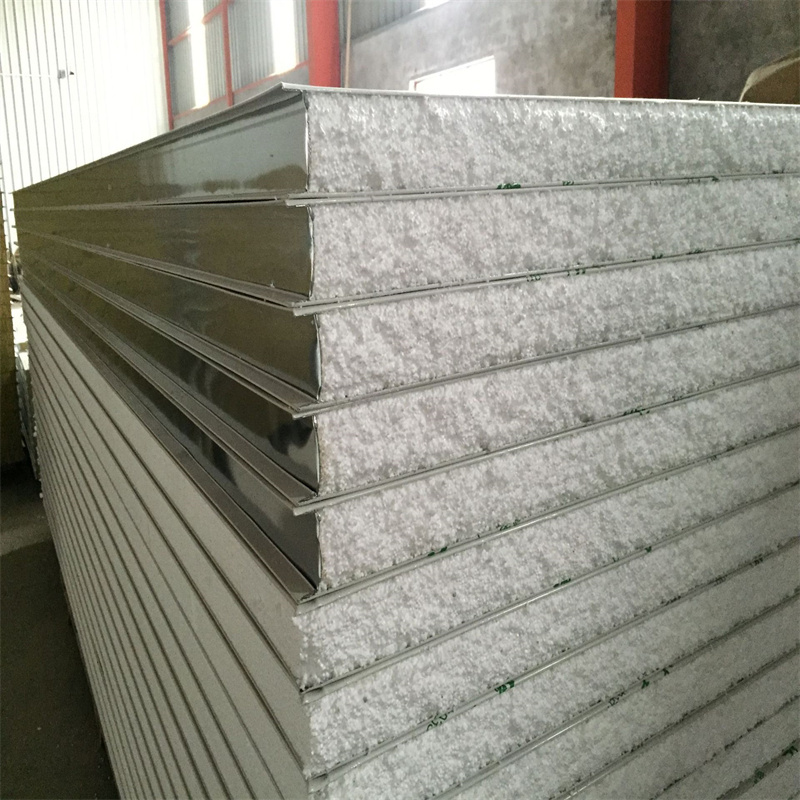

| Product Name | Foam Sandwich Panel | With color-coated steel sheet as the surface layer and foam as the core material |

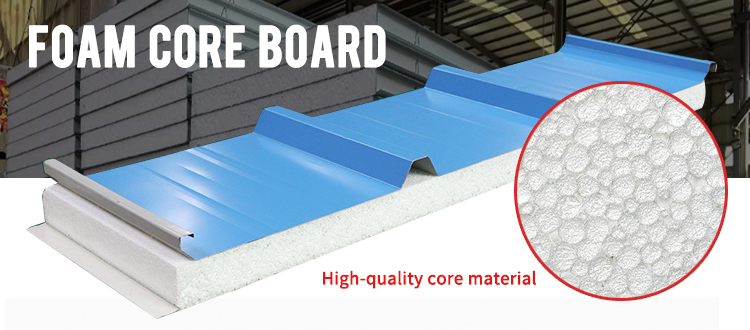

| Common Core Materials | EPS, PU, XPS | Different core materials can be selected according to requirements |
| Surface Material | Color-coated steel sheet / Galvanized steel sheet / Aluminum sheet | Common thickness: 0.3–0.8mm |
| Core Material Density | EPS: 8–20 kg/m³; PU: 30–45 kg/m³ | Determines thermal insulation and compressive performance |

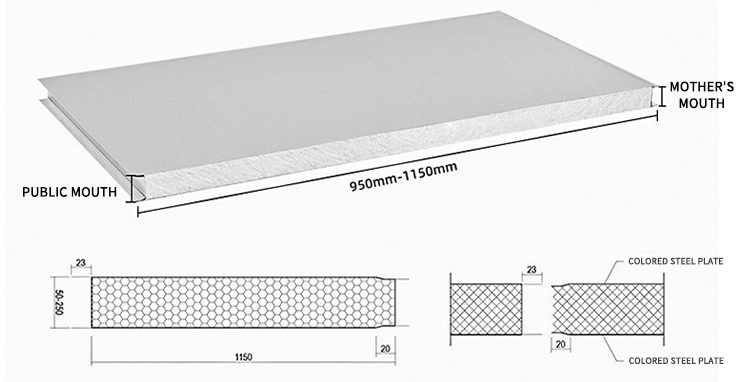

| Core Material Thickness | 50mm, 75mm, 100mm, 150mm, 200mm | Customizable |
| Total Panel Thickness | 50–250mm | Selected according to requirements |
| Width | 950mm / 1150mm (common net width) | Customizable up to 1200mm |

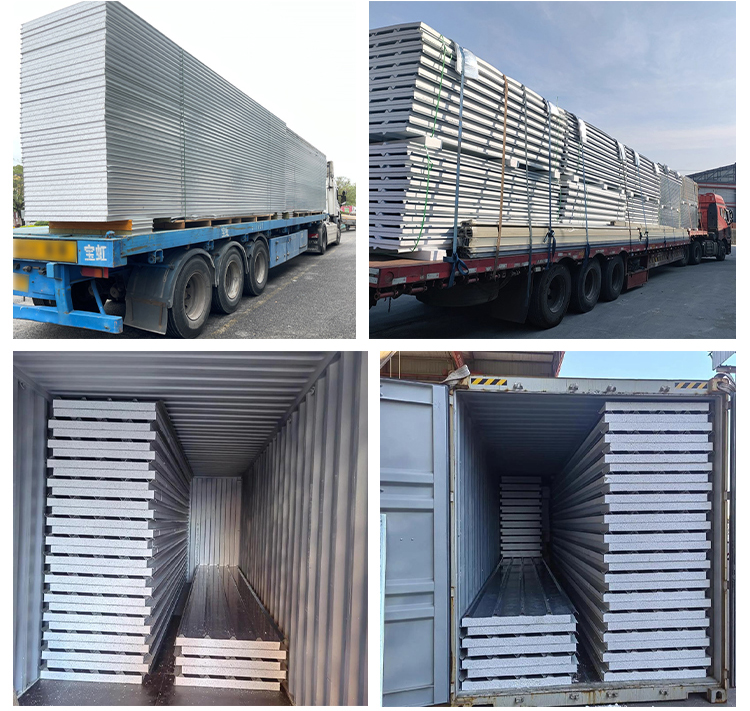

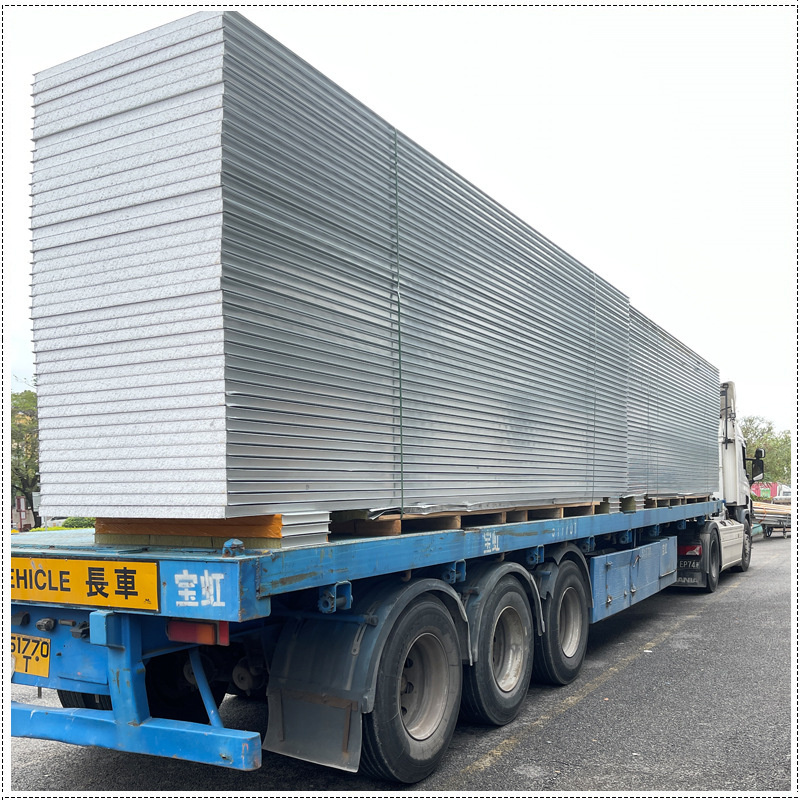

| Length | 2–12m, customizable | Can be segmented when transportation is restricted |
| Thermal Conductivity | EPS: 0.038 W/m·K; PU: 0.022 W/m·K | Reference value for thermal insulation performance |
| Fire Rating | B1 / B2 / A (varies by core material) | PU / rock wool have higher ratings, EPS has lower rating |

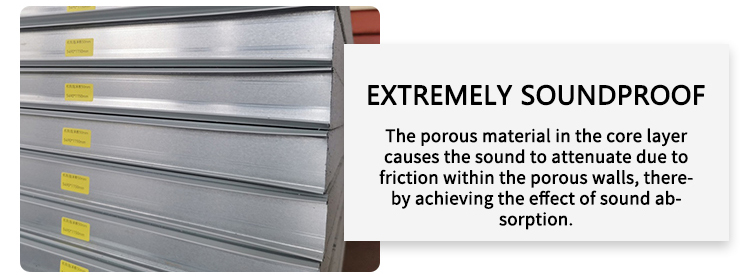

| Sound Insulation Performance | ≥ 30 dB | Suitable for factories and places with sound insulation needs |
| Wind Pressure Resistance | ≥ 0.5–1.5 kN/m² | Depends on thickness and installation method |
| Service Life | 15–30 years | Related to material and environment |

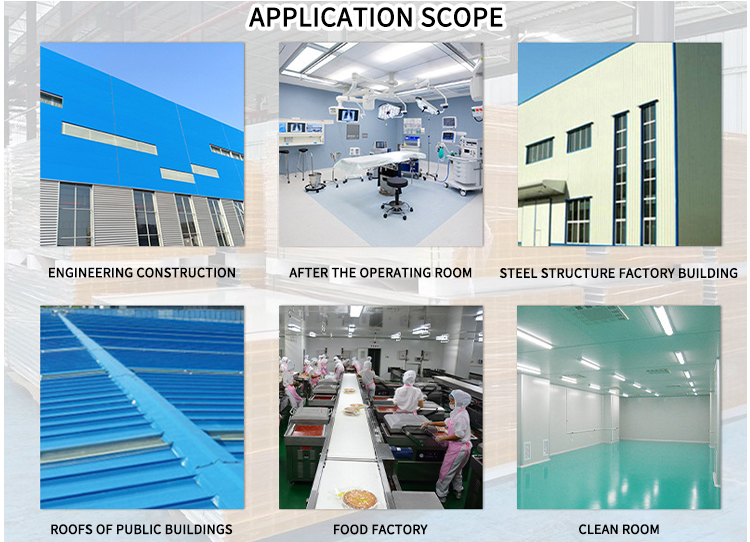

| Application Field | Industrial workshops, warehouses, cold storage, prefabricated houses | Applicable to roofs, walls and partitions |

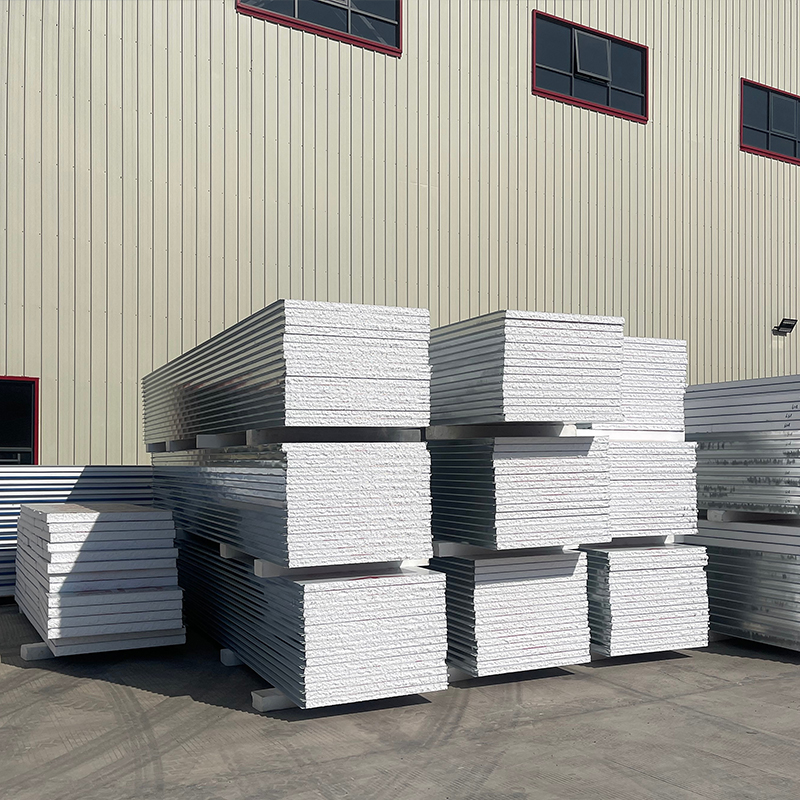

Offers an economical price point with standard thermal insulation performance, ideally suited for temporary buildings.
Delivers superior thermal insulation efficiency, better fire resistance, and long-term durability.

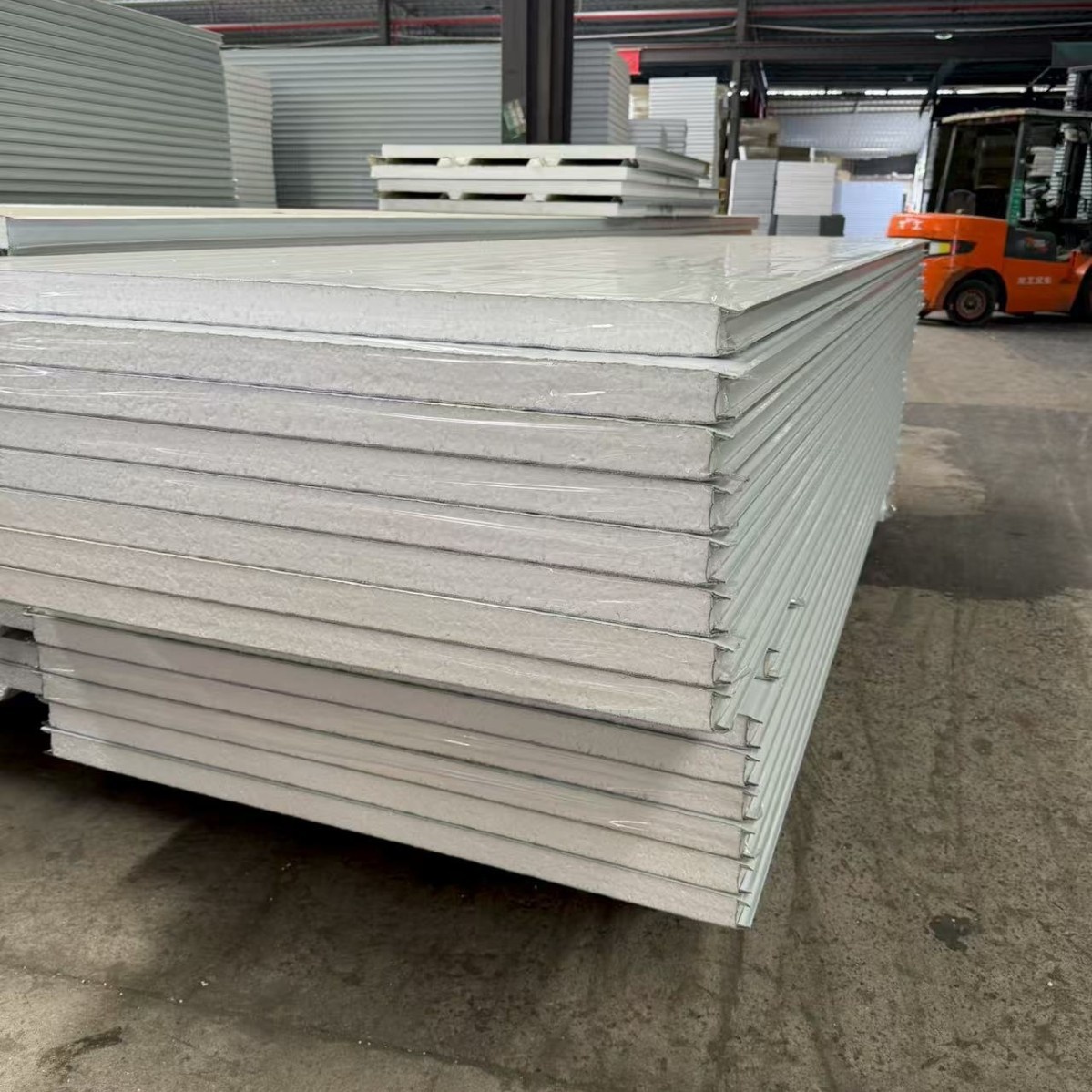

Provides enhanced thermal insulation compared to EPS, making it a high-performance choice with a slightly higher cost.
Established in 2015, we are a comprehensive foreign trade enterprise specializing in the research, development, production, and international sales of high-quality building material products. With a keen insight into global construction market trends and an ultimate pursuit of product quality, we have become a core building materials supplier for construction projects in multiple countries and regions, covering various building scenarios such as residential, commercial, and municipal.
Our main products include scaffolding, Foam Sandwich Panels, rock wool boards, insulation boards, PE pipes, PVC pipes, MPP pipes, HDPE pipes, etc.

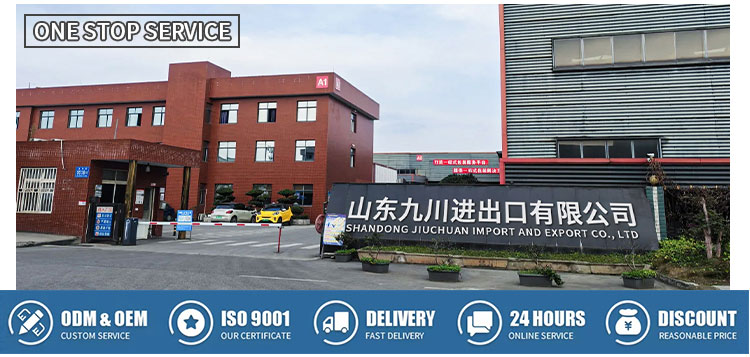

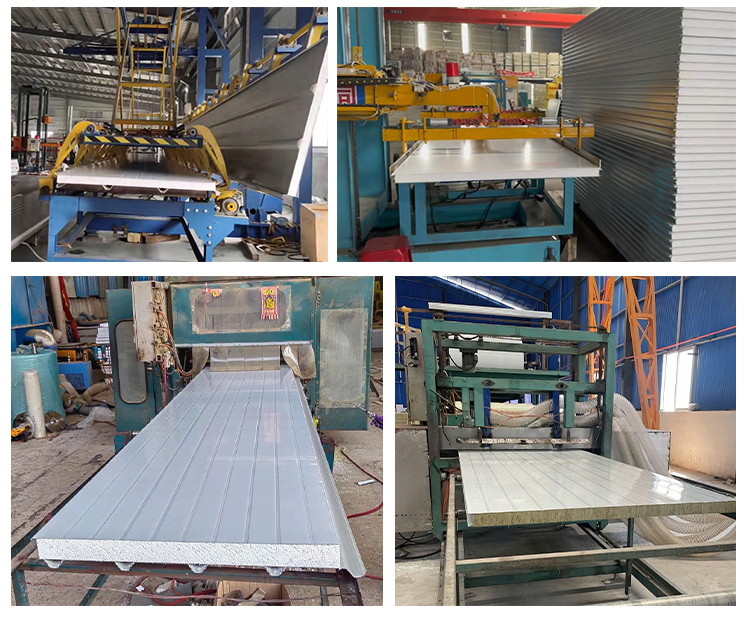

We operate a modern production base covering an area of 12,000 square meters, equipped with a series of advanced production equipment and automated production lines. From cutting and welding of raw materials to assembly and coating of products, every production process has been highly automated and standardized, greatly improving production efficiency and ensuring the stability and consistency of product quality. Additionally, our processes have successfully passed international certification standards such as EU certification and US certification.
If you are looking for a reliable building materials supplier, please feel free to contact us at any time. We will serve you wholeheartedly and look forward to working together with you to create a better future.
