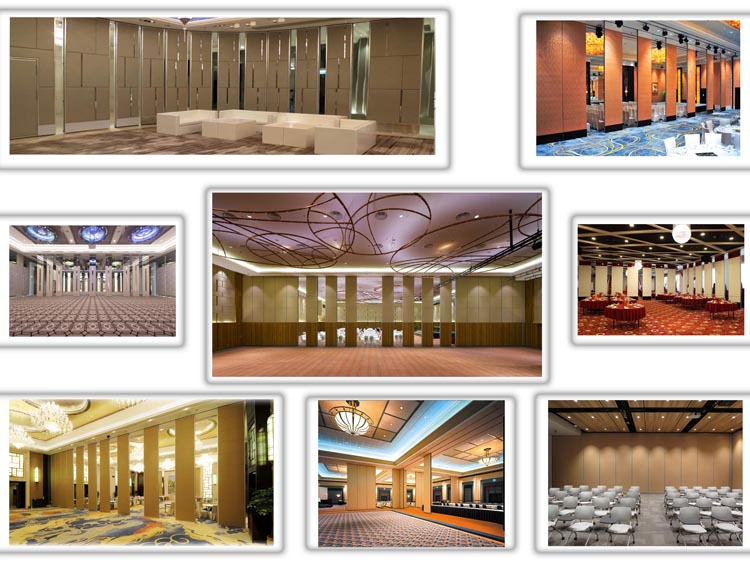

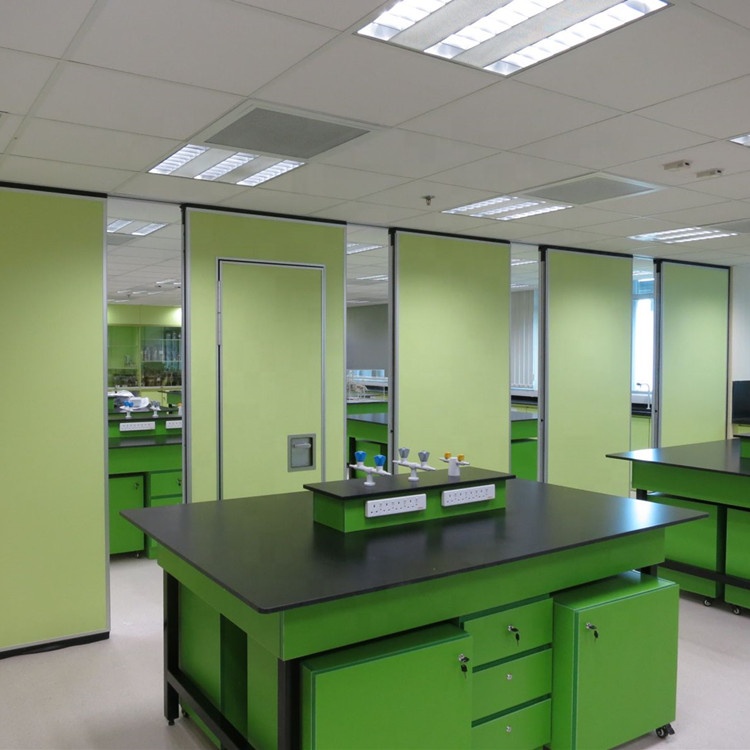

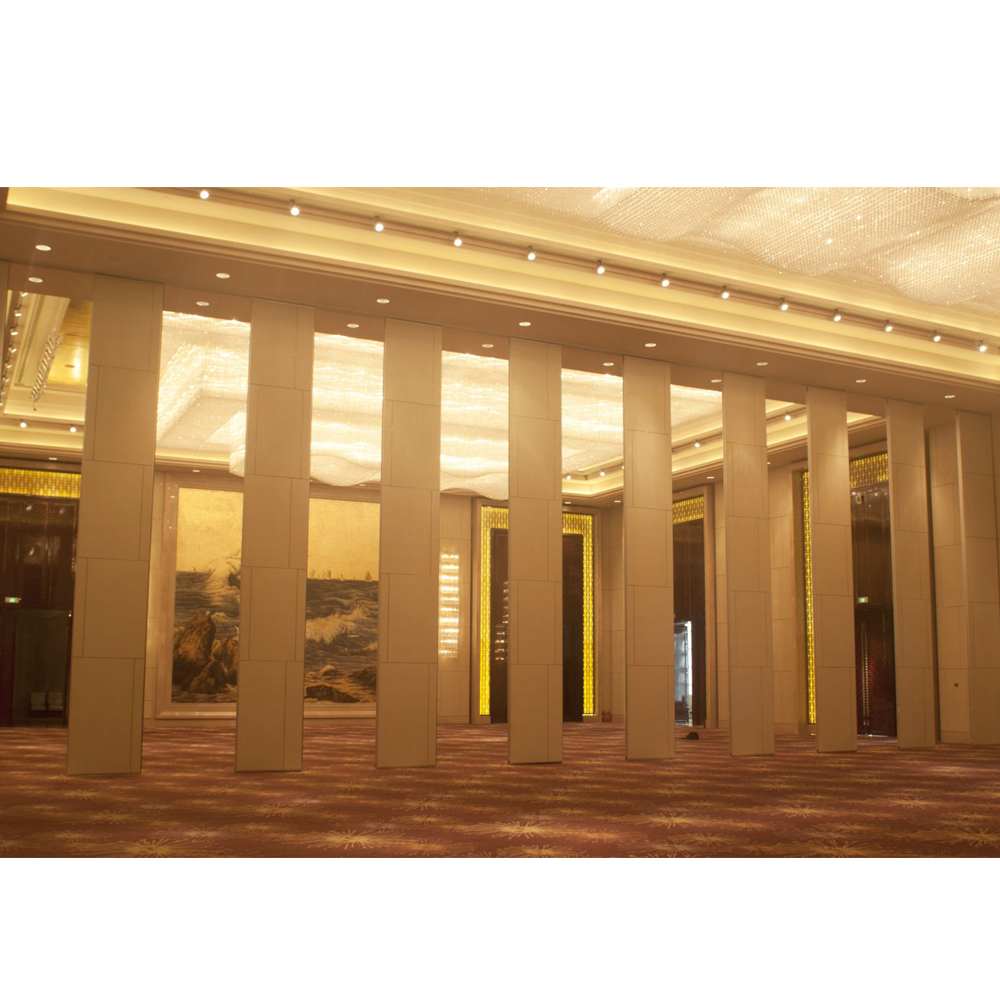

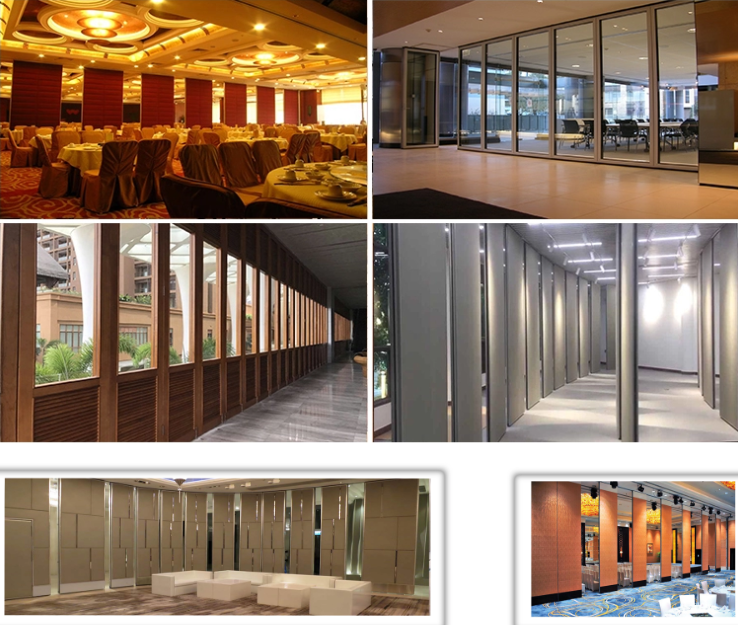

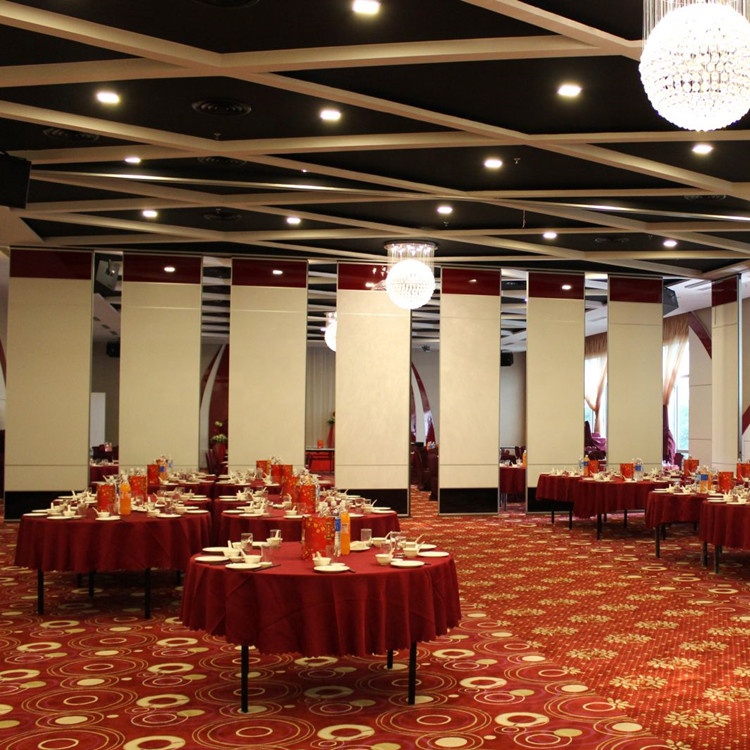

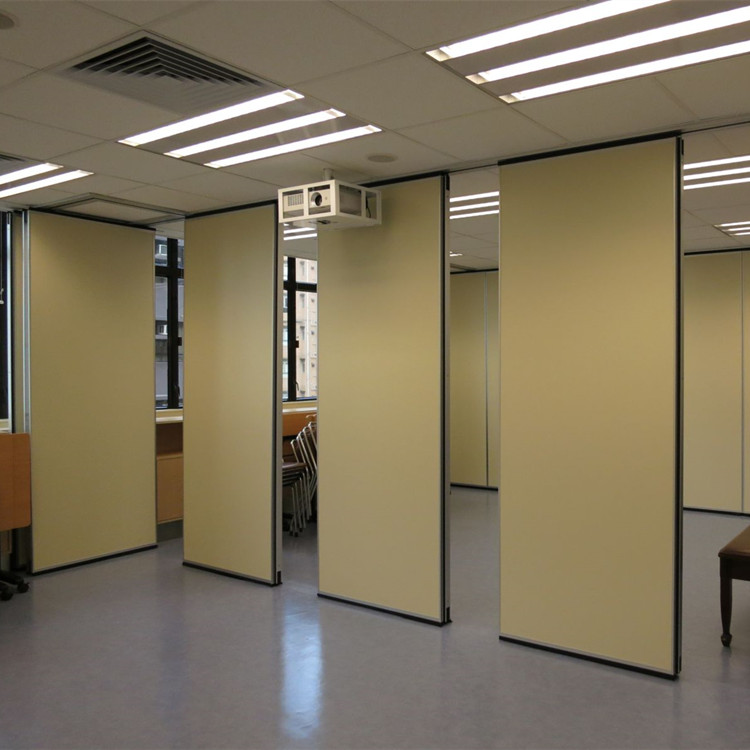

Interior Wall Partition is also called movable acoustic wall. It can separate the space into several small spaces or turn several small spaces into big space according to your different need. Moreover, its flexible sliding combination brings you a special experience.
| Pattern | Hoist Weight | STC | Frame Material | Track Loading Weight | Retractable Range of Top/Bottom | Width (Min/Max) | Height (Min/Max) | Thickness (Min/Max) |
|---|---|---|---|---|---|---|---|---|
| kg/m² | dB | kg/m | mm | mm | mm | mm | ||
| LY-65 | 30 | 32 | Aluminium | 225 | 22.5 | 750-1200 | 2000-3000 | 65 |
| LY-80 | 35 | 38 | Aluminium | 450 | 22.5 | 750-1200 | 3000-5000 | 80 |
| LY-100 | 45 | 45 | Aluminium | 675 | 22.5 | 750-1200 | 5000-10000 | 100 |
A movable acoustic wall partition is a flexible track-supported panel system designed to separate large spaces into smaller sections, or open up smaller sections into one large space, while providing sound reduction.
There are three main standard models available: LY-65 (65mm thickness), LY-80 (80mm thickness), and LY-100 (100mm thickness), each customized to support different weights, heights, and acoustic requirements.
The Sound Transmission Class (STC) ranges from 32dB to 45dB depending on the model. The LY-65 offers 32dB, LY-80 offers 38dB, and LY-100 offers the highest sound isolation performance at 45dB.

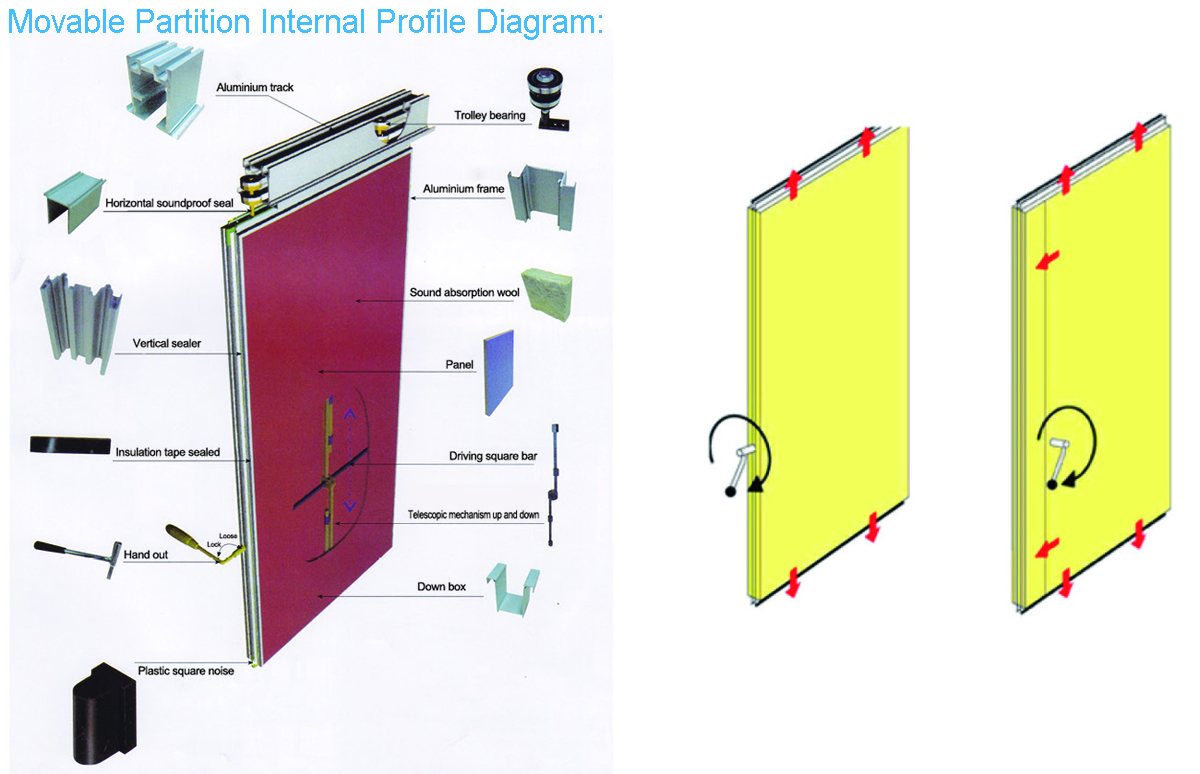

The partition frames are constructed with premium-grade extruded Aluminium, which offers high structural strength, lightweight properties, and long-lasting durability.
Yes. The system supports a broad height range. The LY-65 supports up to 3000mm, the LY-80 up to 5000mm, and the heavy-duty LY-100 system can accommodate heights up to 10000mm (10 meters).

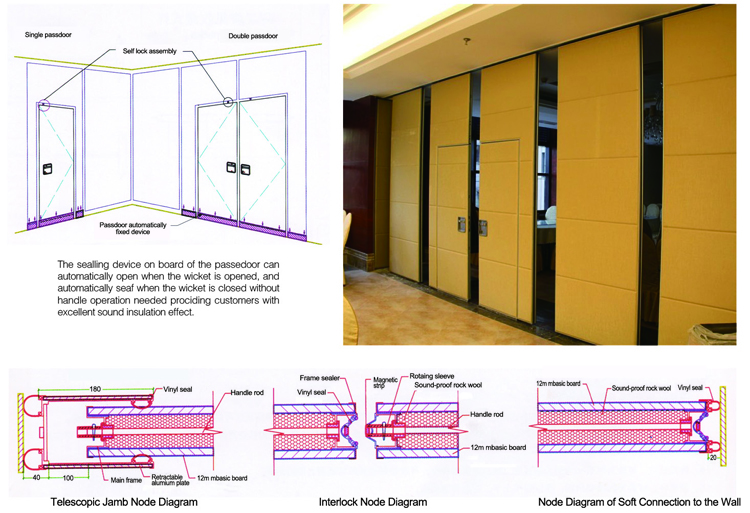

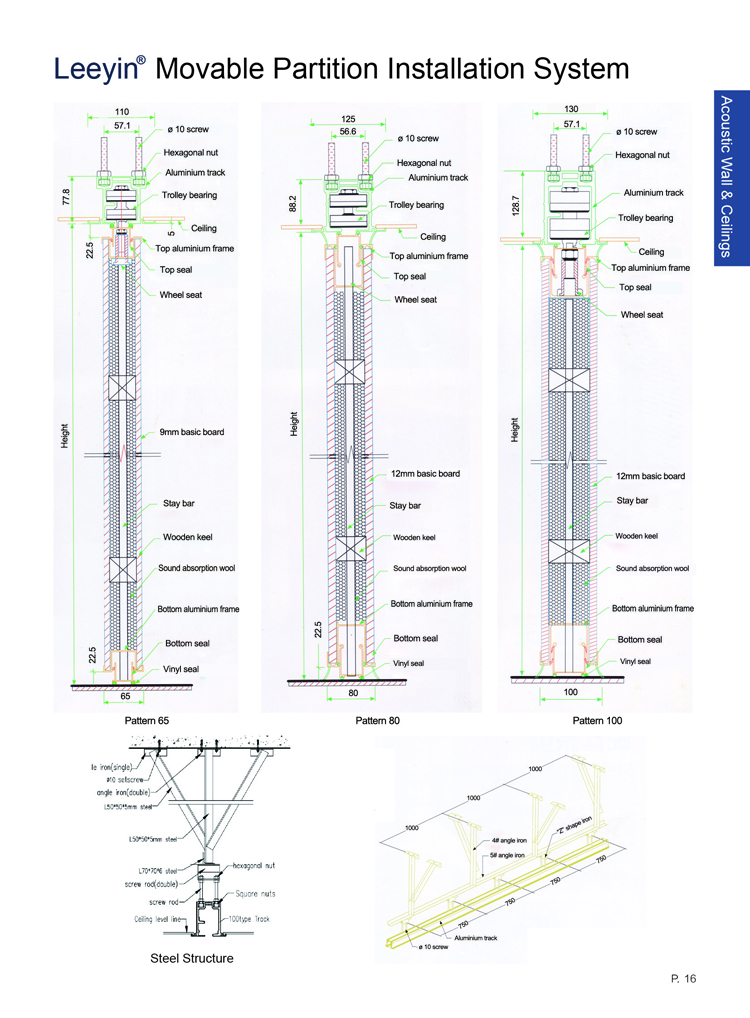

The standard retractable movement range of both top and bottom pressure seals is 22.5mm, which ensures a tight, stable fit against floors and ceilings for maximum acoustic isolation.
