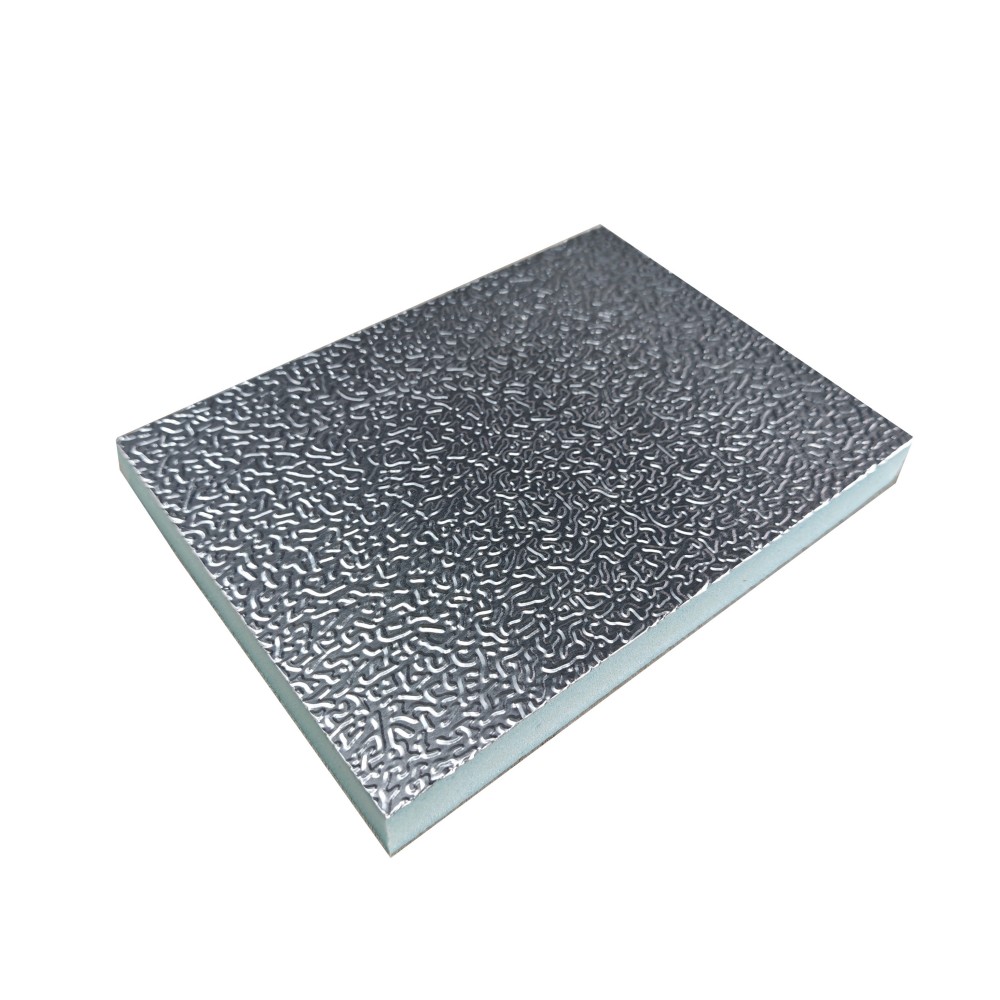

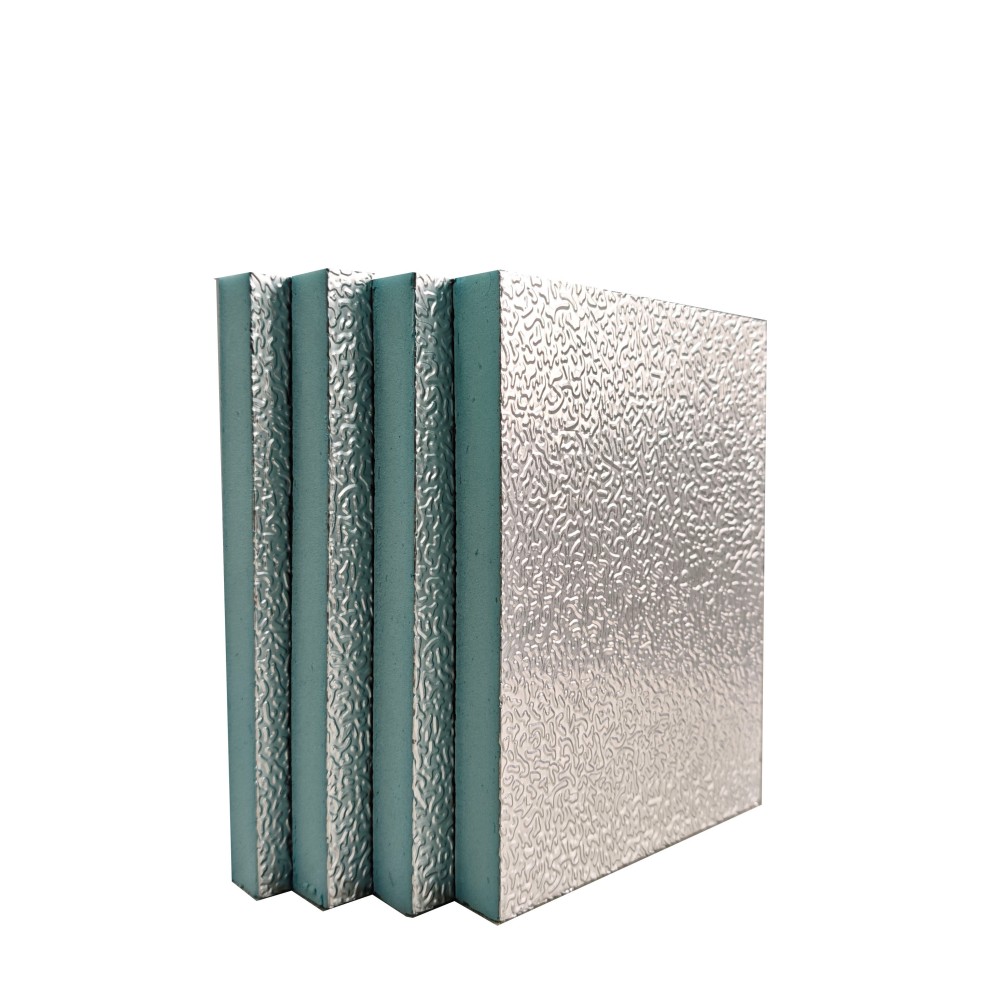

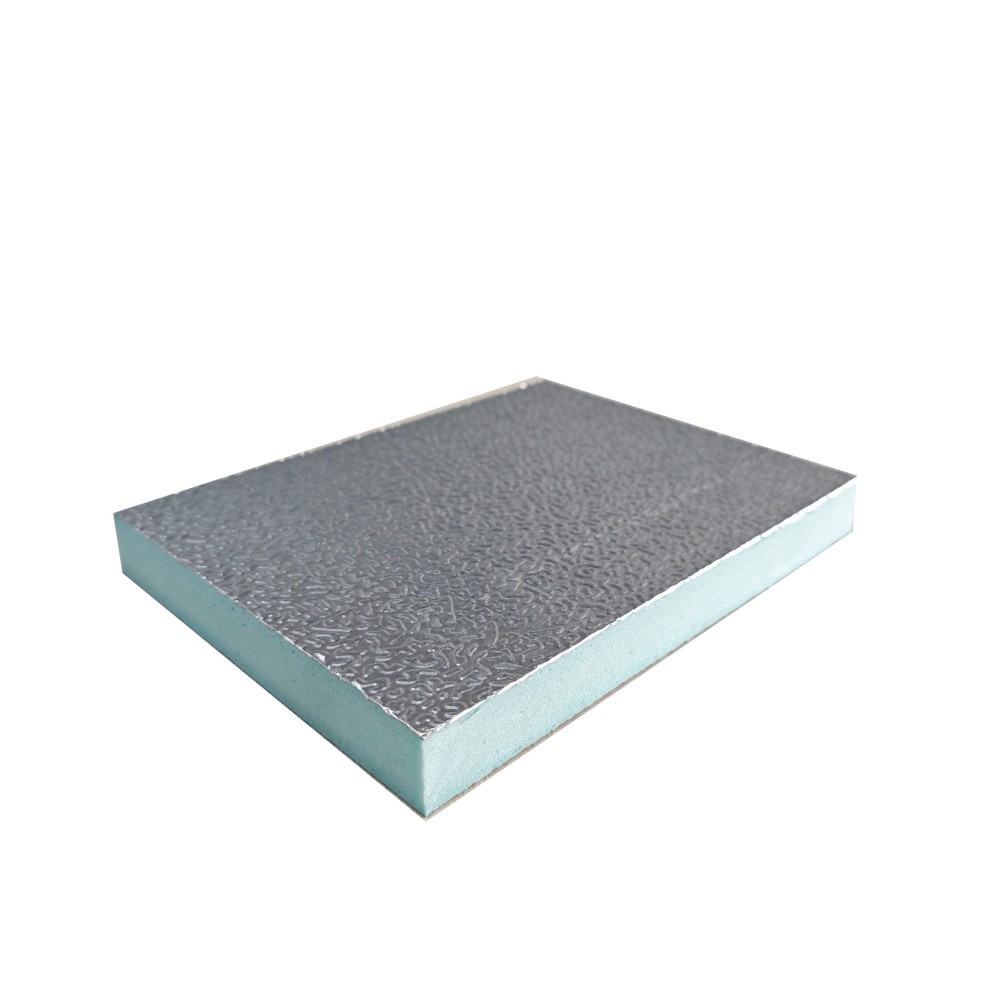

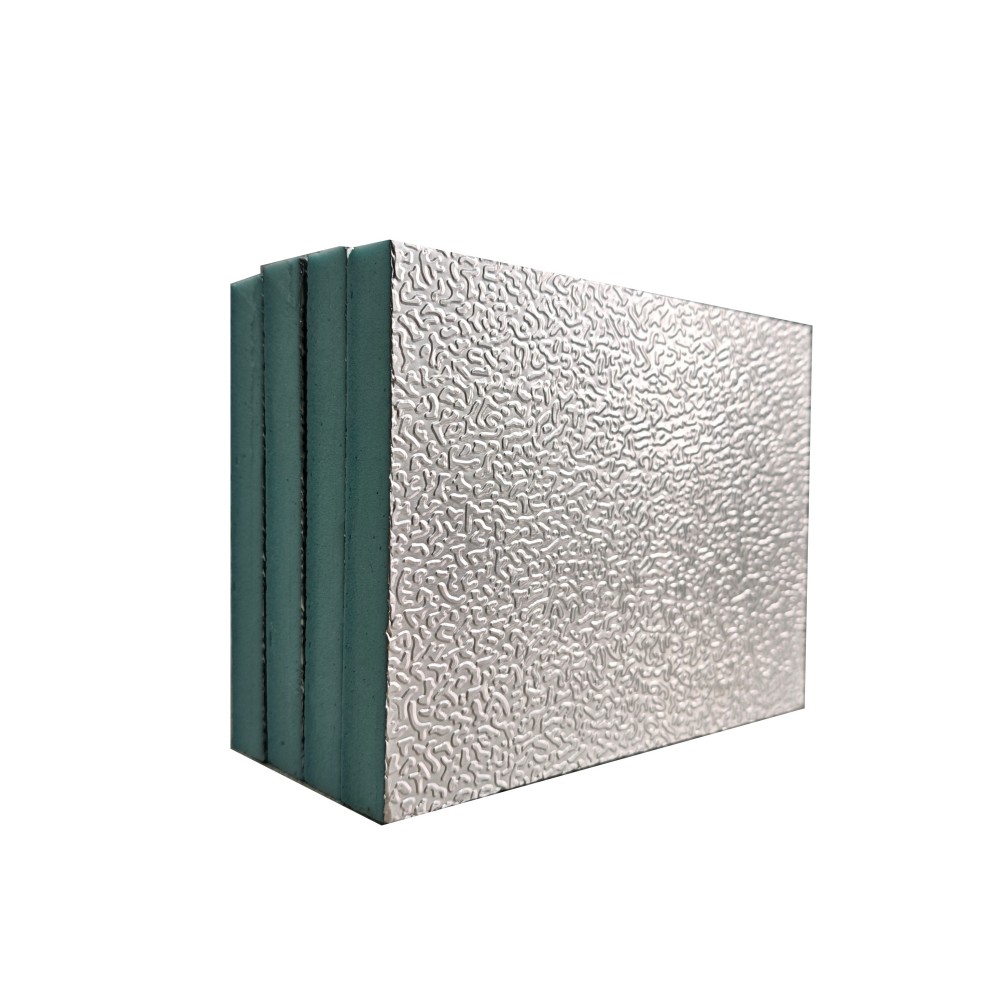

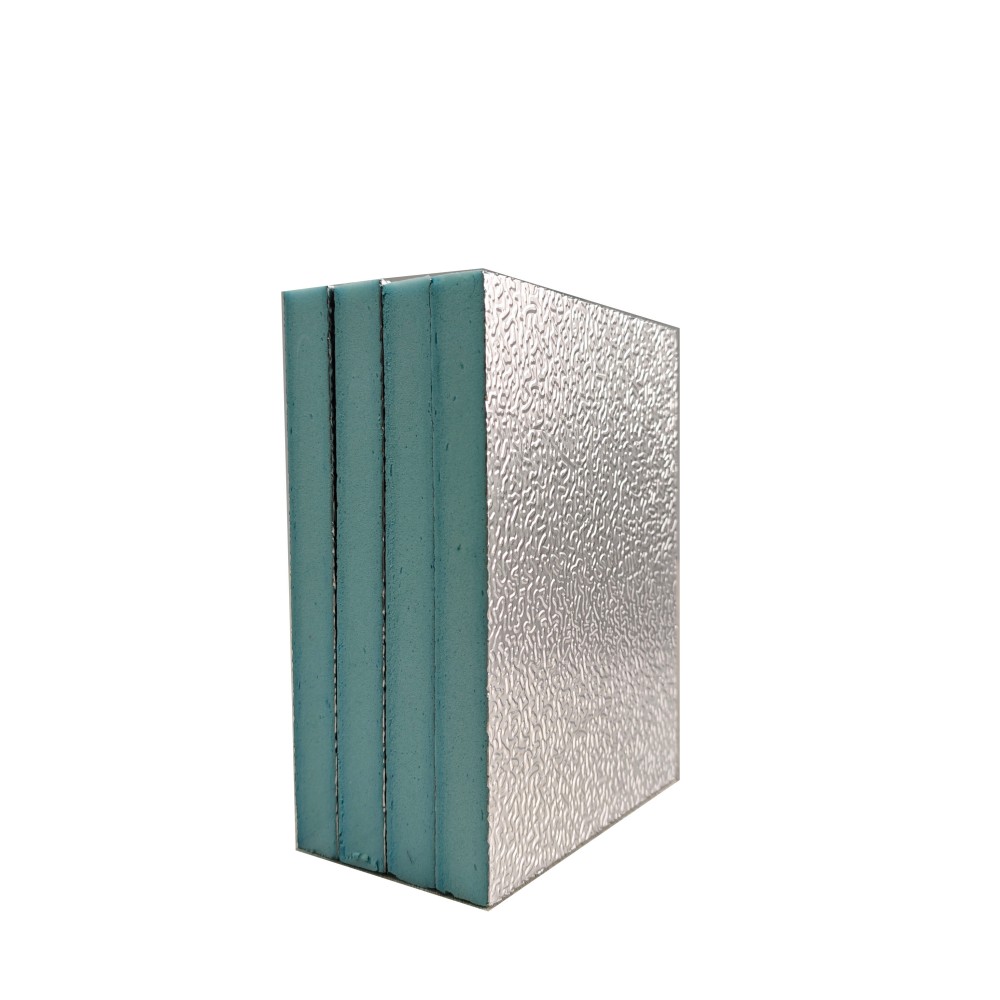

The PIR System is not only based on pre-insulated aluminium panels, but it also consists of accessories, tools and know-how necessary for the construction and installation in a masterly fashion. The Panel is a sandwich panel with external aluminum sheet covering a closed cell insulating material polyisocyanurate (PIR) foam which has a density of 50 kg/m³.
PIR pre-insulated panels achieve extremely high quality ducting as a direct result of the excellent insulation properties of PIR foam. The system also provides excellent internal air quality, a fine external finish, longlife material, and is lightweight, easily transported, manipulated, and constructed.
Ducting systems constructed with PIR pre-insulated panels can be installed either in the interior or on the exterior of a building, visible or with a false ceiling in residential and commercial use. As well, PIR pre-insulated panels are an excellent option in industry sectors such as food processing, electronics, pharmaceuticals, hospitals & medical centers, etc., where there is a need for a provision of a high level of quality and hygiene.
| Item | Unit | Specifications |
|---|---|---|
| Panel Structure | Alu.Foil/Foam Board/Alu.Foil | |
| Standard Panel Size | mm | 3950*1200*20 |
| Panel Thickness | mm | 20 |
| Alu. Foil Thickness | mm | 0.06 or 0.08 |
| Foam Density | kg/m3 | 50 |
| Thermal Conductivity | w/m.k | 0.022 |
| Compressing Strength | MPa | 0.2 |
| Bending Strength | MPa | 2 |
| Water Absorption Rate | % | ≤0.1 |
| Dimension Change | % | 0.3 |
| Working Temperature | ℃ | -40 to +70 |
| Continuous Running Maximum Temperature | ℃ | ≤70 |
| Maximum Allowable Wind Velocity | m/s | 12 |
| Lifespan of PIR Air Duct | years | >20 |
| Fire Safety | BS 476 Part 6 & 7 /ASTM E84 | Class 0/ Class A |
| Oxygen Index | GB8624-2012 | 30 |
| Air Leakage Rate | % | ≤2 |
| Closed Cell Rate | % | >95% |
