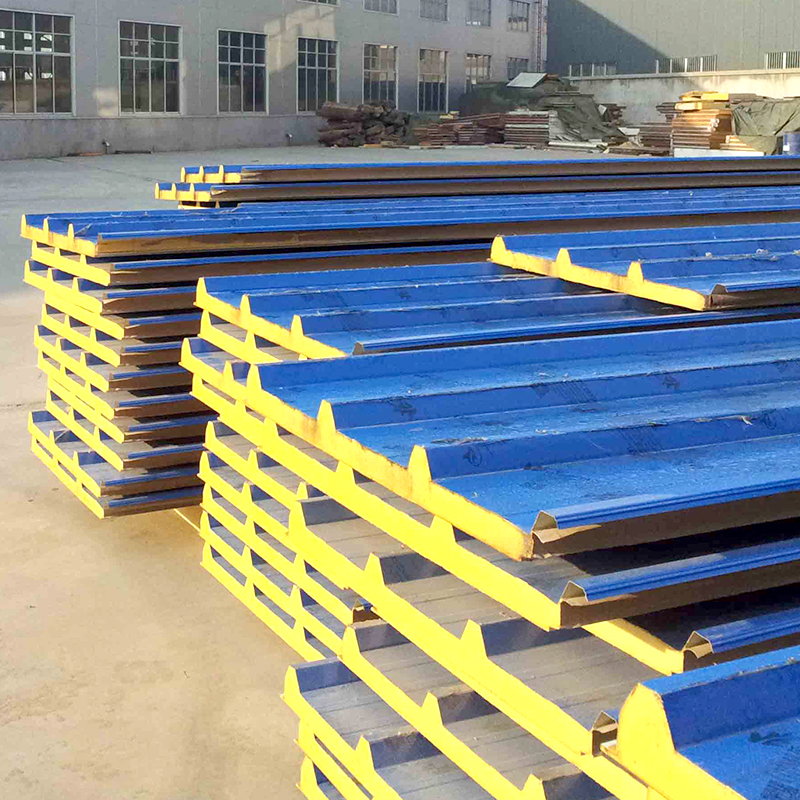

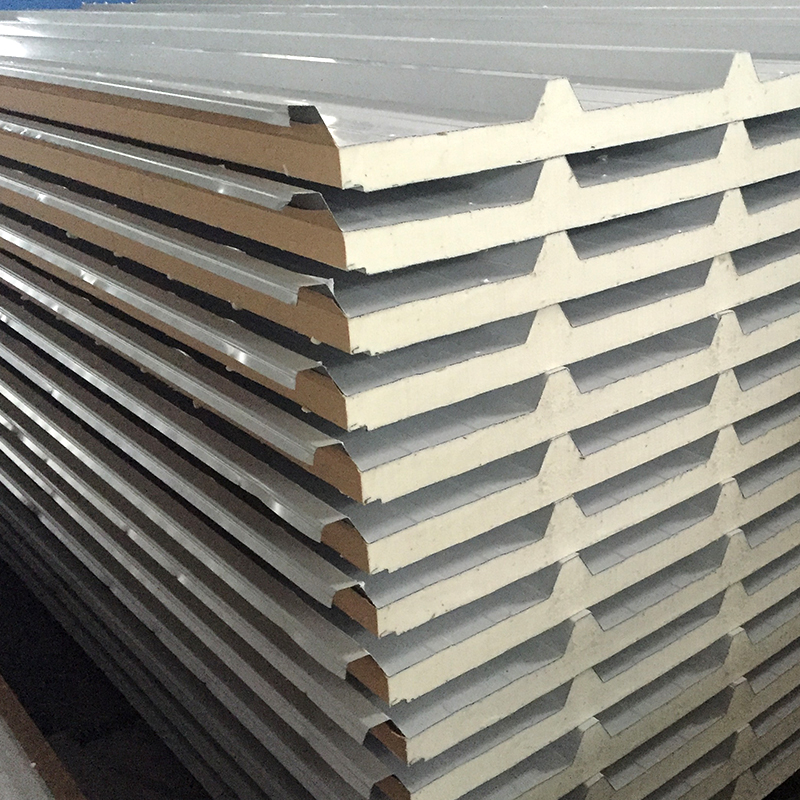

Wall/roof Sandwich Panels Cold Room Panels Insulated Panels Insulate Wall Roofing Sandwich Sheet/boards

Our insulation panels has been FM certified

Cold room parameters

Parameter	Details
Dimension	Length(m) * Width(m) * Height(m) - customization

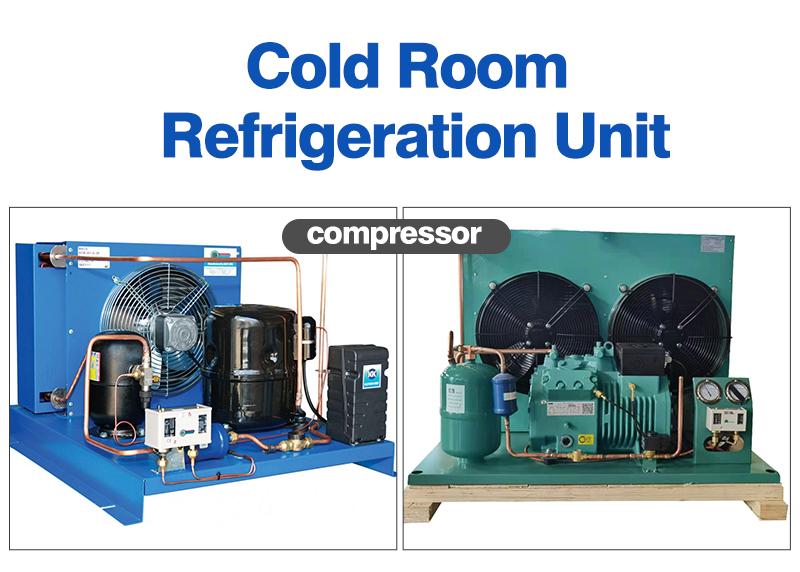

Refrigeration unit	Copeland/Bitzer etc.
Refrigeration type	Air cooled / water cooled / evaporation cooled
Refrigerant	R22, R404a, R447a, R448a, R449a, R507a
Defrost Type	Electric defrosting
Voltage	220V/50Hz, 220V/60Hz, 380V/50Hz, 380V/60Hz, 440V/60Hz optional
Panel	New material polyurethane insulation panel, 43kg/m³
Panel thickness	50mm, 75mm, 100mm, 150mm, 200mm
Type of door	Hanged door, sliding door, double swing electric sliding door, truck door
Temp. of room	-60°C ~ +20°C optional
Functions	Fruit, vegetable, flower, fish, meat, chicken, medicine, chemical, electronics, etc.
Fittings	All necessary fittings are included, optional
Place to assemble	Indoor / outdoor (concrete construction building / steel construction building)

How to get a suitable cold room? The following factors should be fully considered:

What is the application of the cold room?
It will affect the temperature of cold room needed to be, and the choice of thickness of pu panel and material covered on panel.
What is the size of the cold room?
It will affect the choice of condensing unit and air cooler, basing on the cold room temperature.
Which country will the cold room be located in? How about the climate?
It will affect the choice of voltage and condenser. If the temperature is high all the year, we need to choose condenser with bigger evaporation area.

Application Example	Recommended Room Temperature
Fruit & Vegetable	-5 °C to 10 °C
Chemical factory, medicine	0 °C to 5 °C
Ice cream, ice storage room	-10 °C to -5 °C
Frozen meat storage	-25 °C to -18 °C
Fresh meat storage	-40 °C to -30 °C

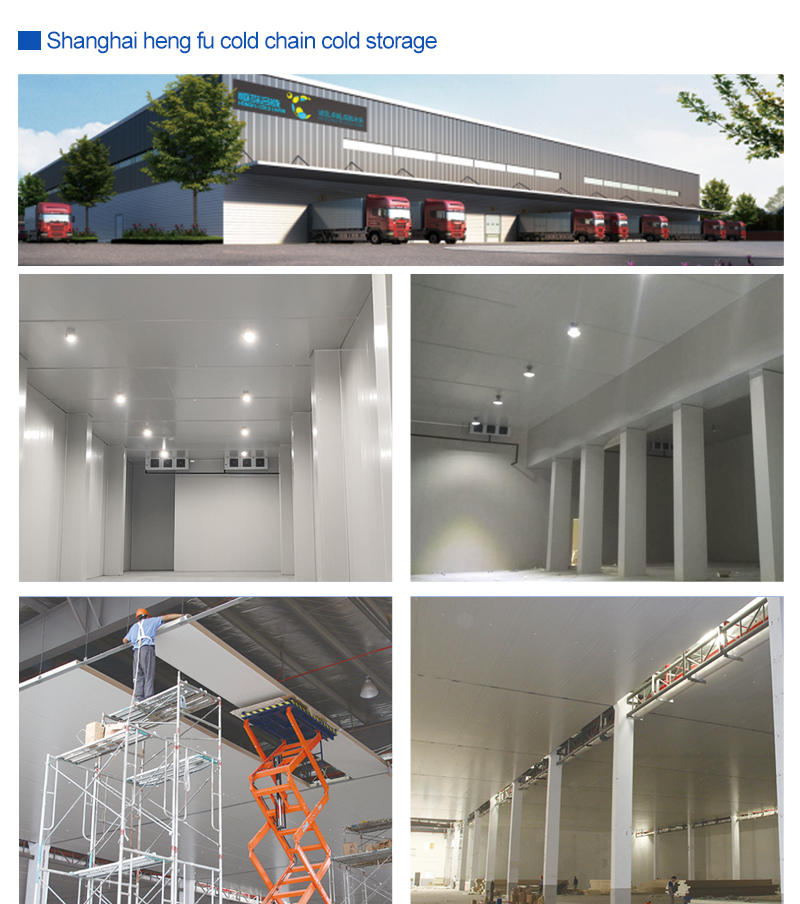

Our custom engineering cases

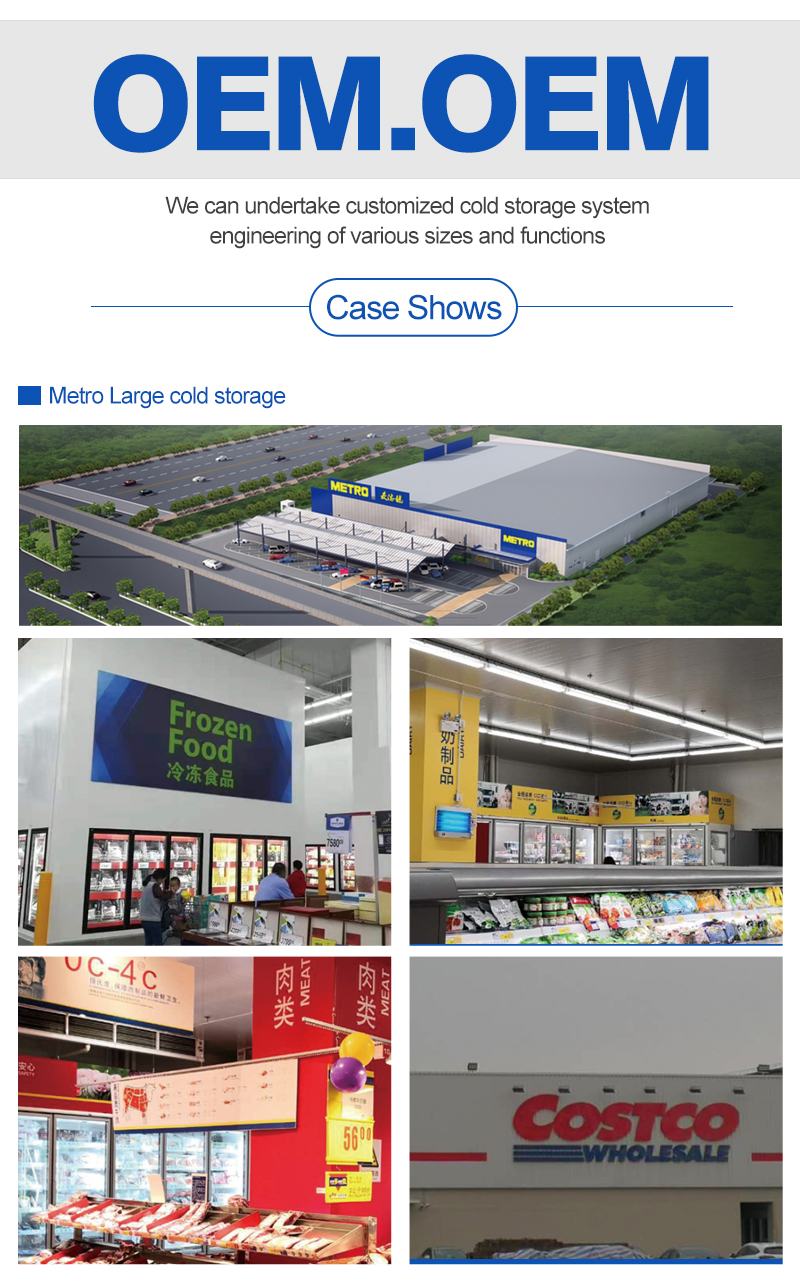

Walmart

Walmart, COSTCO projects with metro supermarket project photos.

Period: 2 months (production to installation)

Temperature: -18°C ~ -20°C / 0°C ~ 4°C

Panel: 7.5cm / 15cm PU plug-in panel

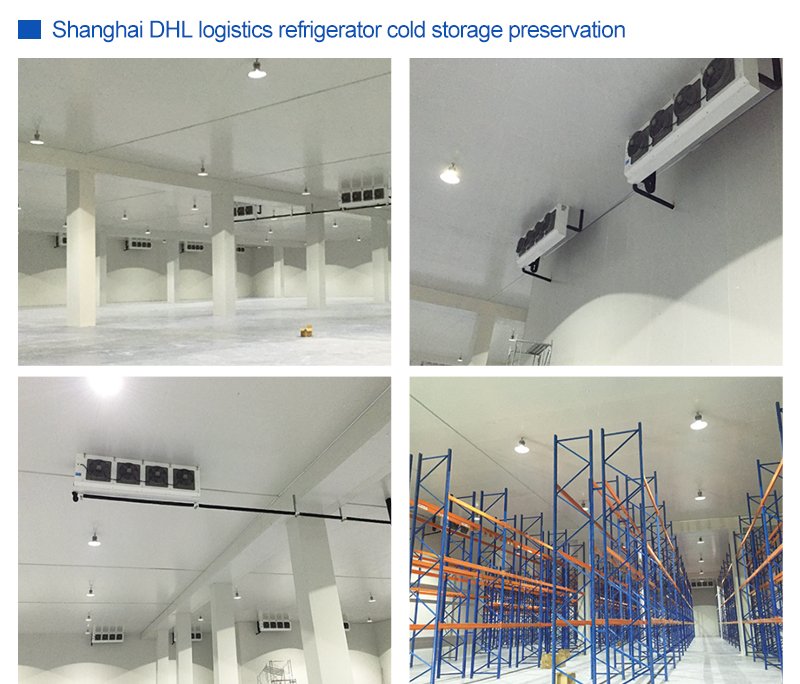

DHL

DHL is a famous global delivery and logistics group. This project provides supply chain management logistics solutions.

Period: 2 months (production to installation)

Temperature: -18°C ~ -20°C / 0°C ~ 5°C / -35°C

Panel: 20cm / 15cm / 10cm PU plug-in panel (Top + Wall)

Blowing Machine Project

Semi-Automatic PET Bottle Blowing Machine / Bottle Making Machine suitable for producing PET plastic containers and bottles in all shapes.

Blowing Machine Project II

Semi-Automatic PET Bottle Blowing Machine / Bottle Making Machine suitable for producing PET plastic containers and bottles in all shapes.

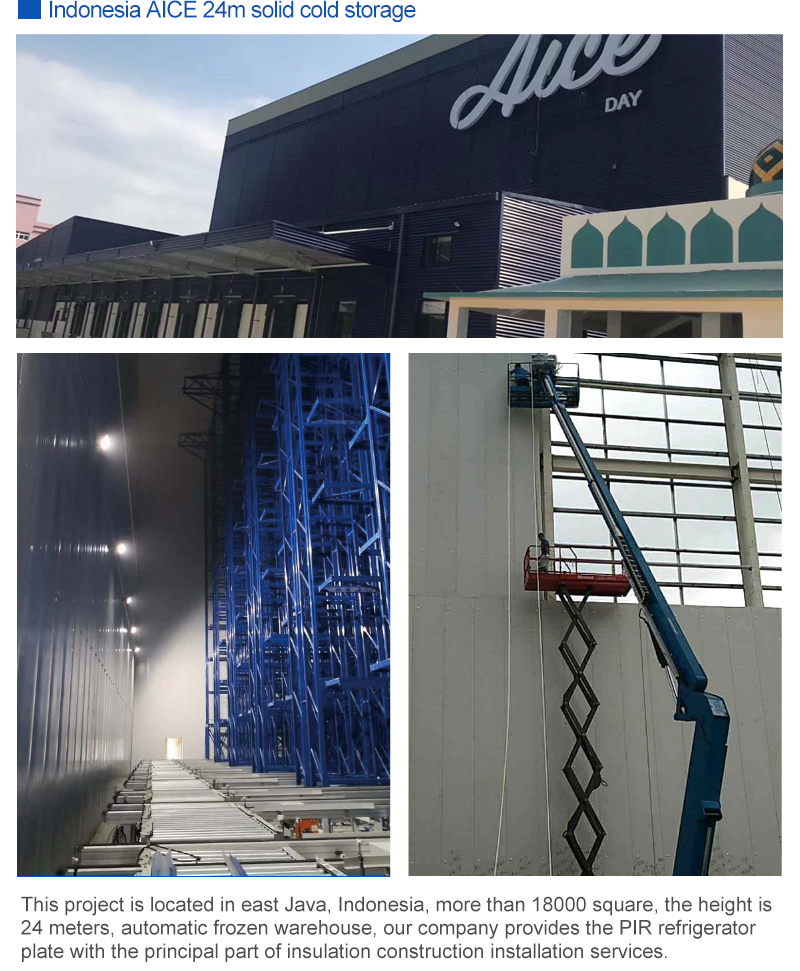

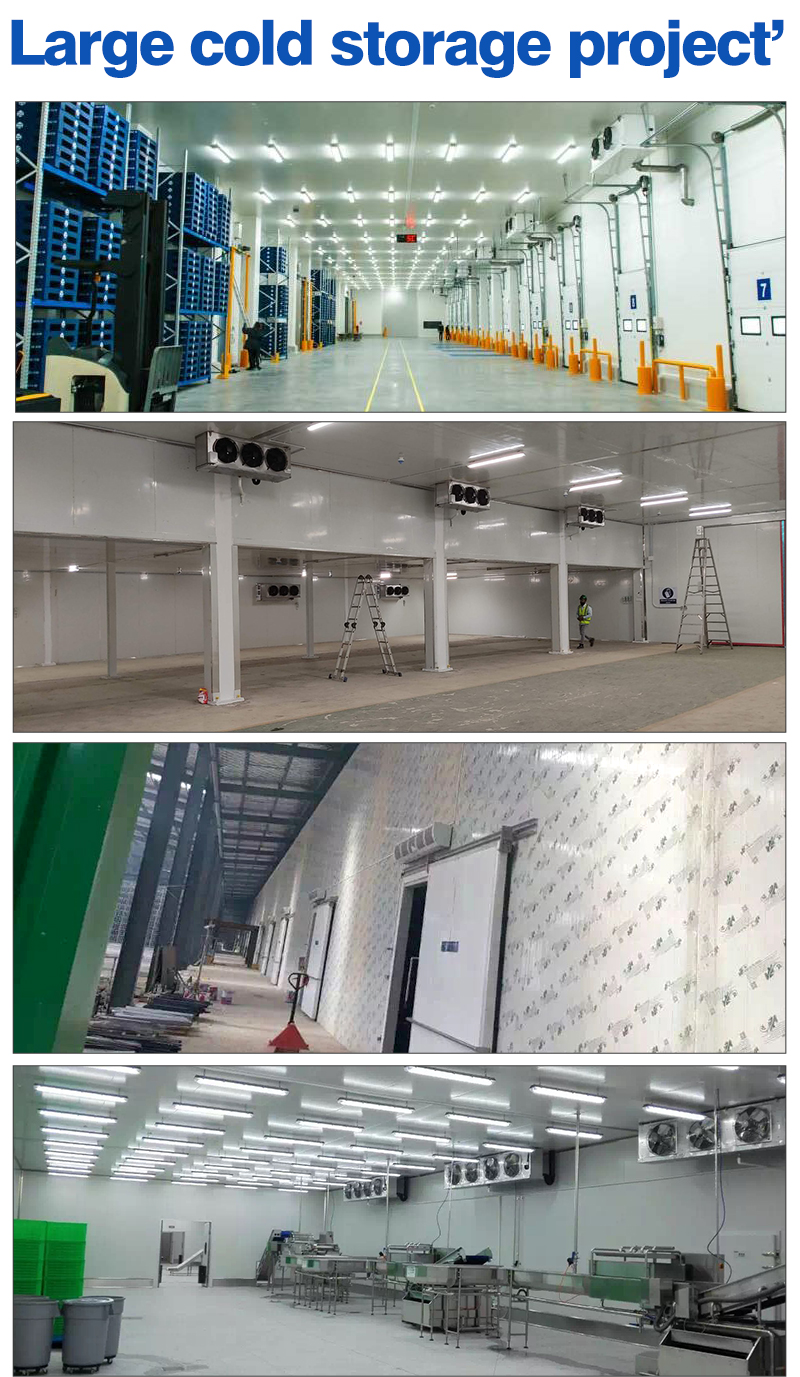

East Java, Indonesia Project

Located in East Java, Indonesia, this project spans more than 18,000 square meters with a height of 24 meters. This automatic frozen warehouse utilizes PIR refrigerator plates with principal insulation construction installation.

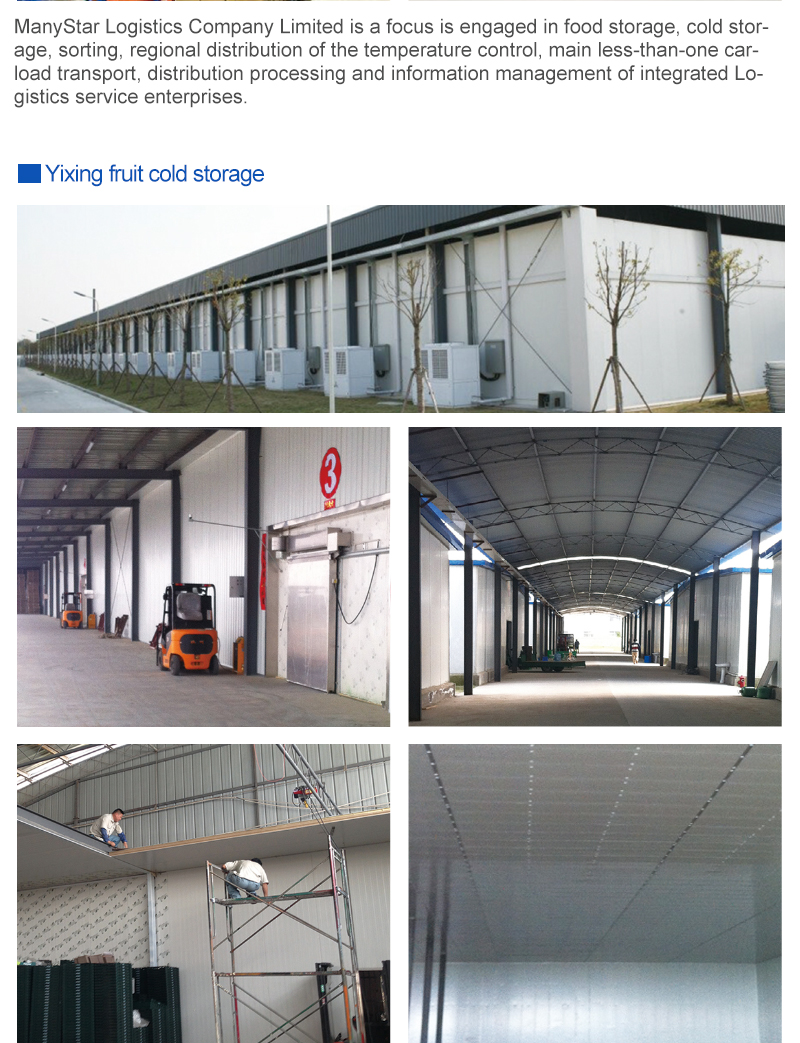

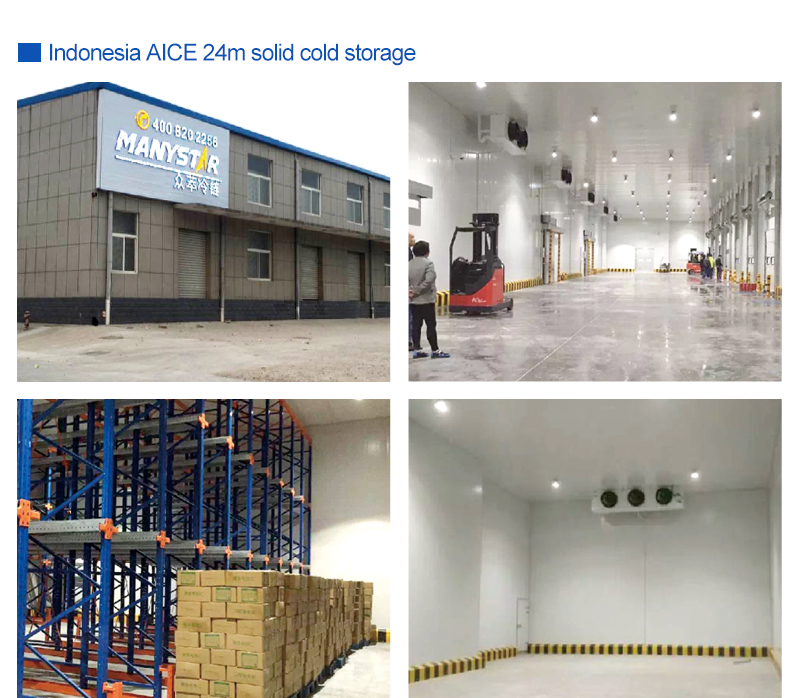

ManyStar Logistics Project

This project focuses on food storage, cold storage, sorting, regional distribution under temperature control, less-than-carload transport, distribution processing, and integrated logistics management.

Green Ring Vegetable Cooperatives

A vegetable professional cooperative featuring a production base of 2,000 mu steel frame greenhouses and a fruit/vegetable trading center of 6,000 square meters. It applies unified planning, technical guidance, sales, and packing.

Anhui Prosperous Industry Project

Located in Modern Agricultural Demonstration Zone, this project covers 60 mu with a total construction area of 47,020 square meters. The first phase includes a slaughter processing workshop for duck and goose with a 6,000-ton capacity cold storage. Phase II expands the cold storage and adds feather processing and poultry meat deep processing.

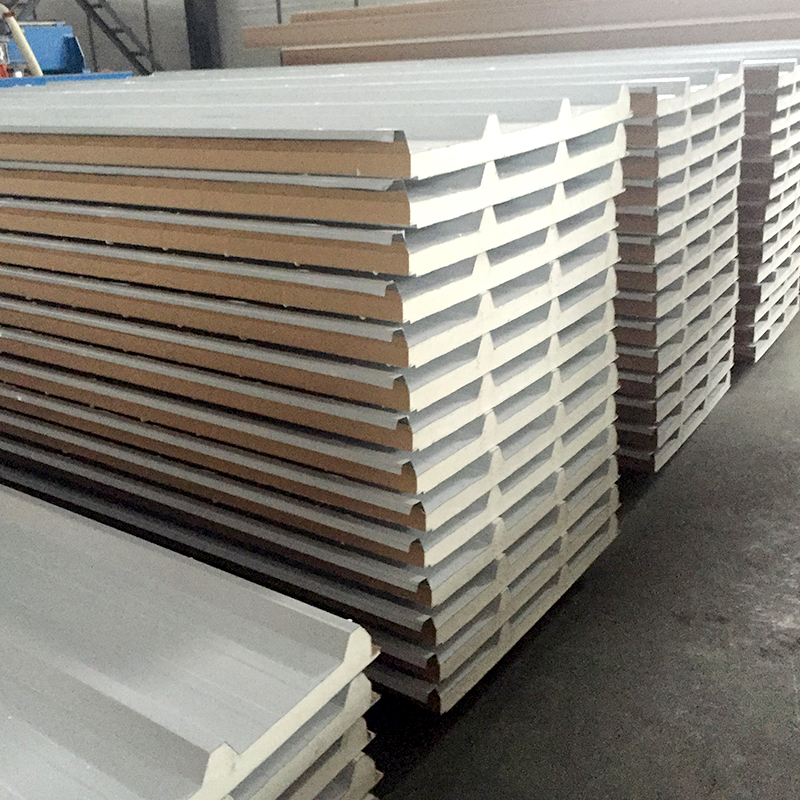

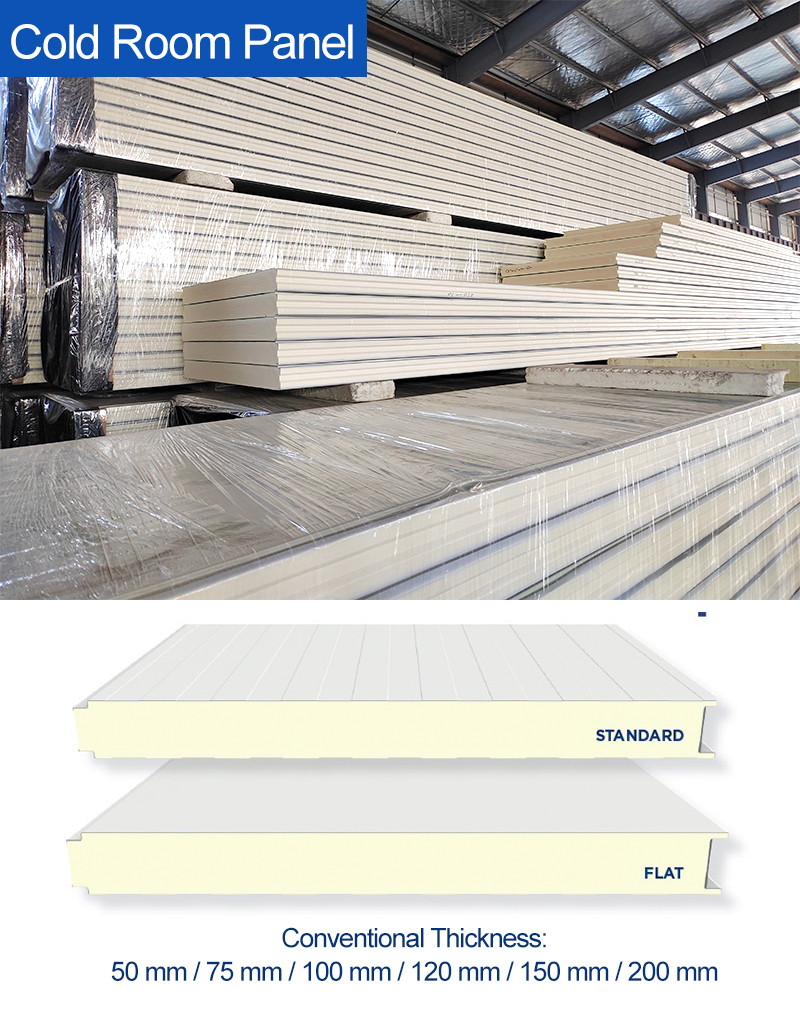

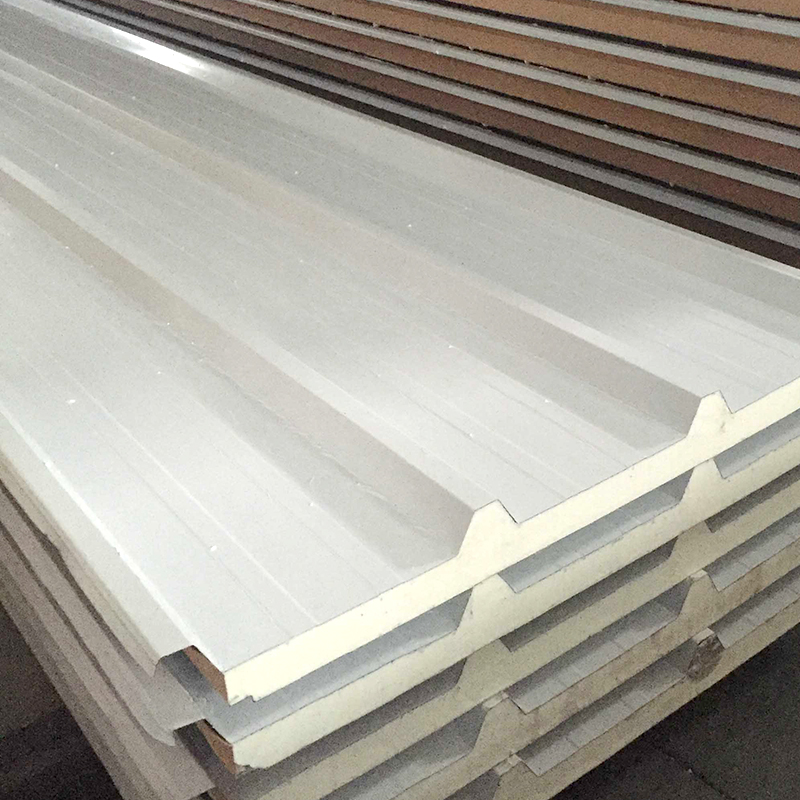

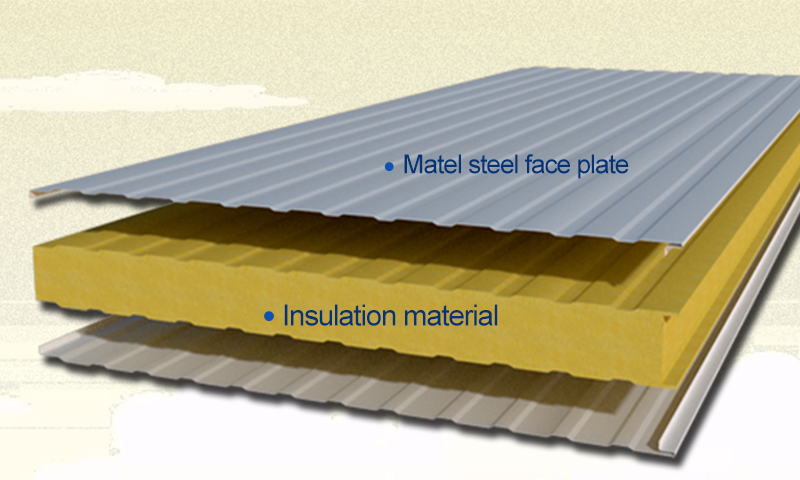

Cold room panel

PU PANEL

Self-extinguishes within 3 to 5 seconds
Lightweight and non-toxic
Anti-corrosion and moisture-proof
Fluorine-free environmental protection, non-volatile to ensure food safety
Strong enough to protect the panel from bending and breakage
Beautiful and smooth appearance, percentage of closed area > 8.
Low thermal conductivity of 0.018 ~ 0.023 W/(m·K), half of EPS for high thermal insulation
Safe and long service life

PIR PANEL

Better insulation properties
Enhanced fire retardant class, matching B1 class fire retardant
CFC-free materials

Thickness	Application Temperature
50MM	Above 15°C
75MM	Above 5°C to 15°C
100MM	Above -5°C to 5°C
120MM	Above -18°C to -5°C
150MM	Above -40°C to -18°C

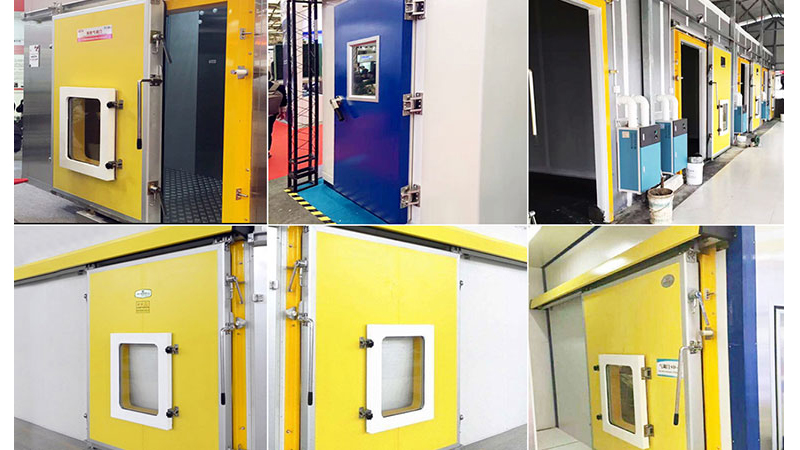

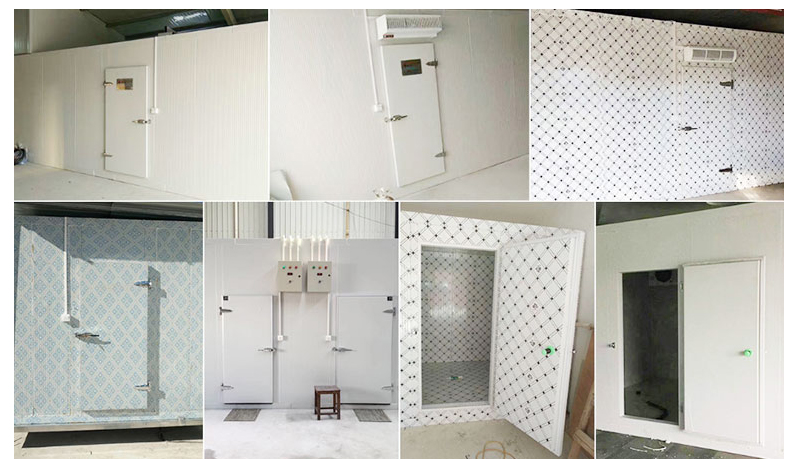

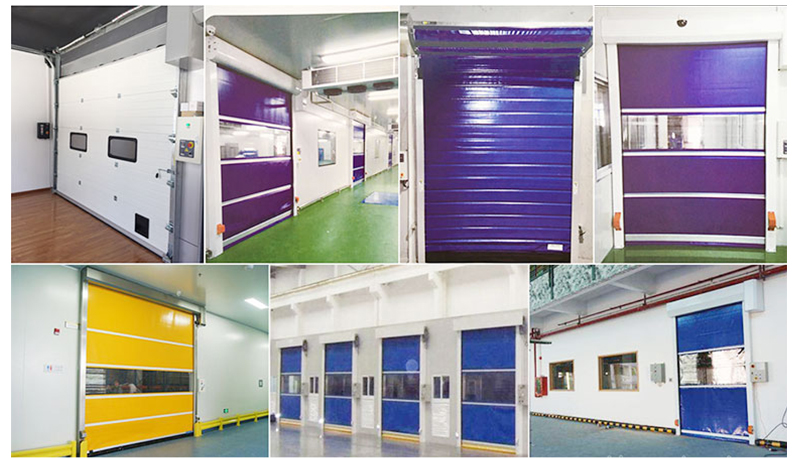

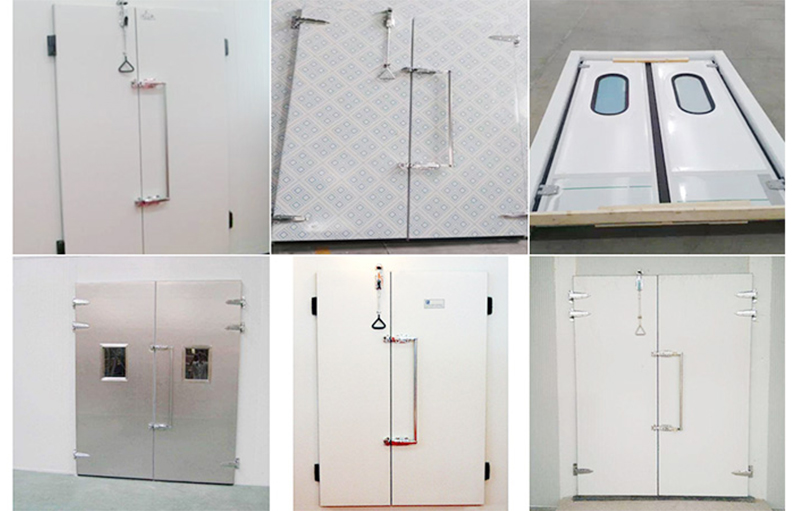

Cold room door show

The customization of cold storage door needs to be combined with the specific requirements of the cold storage.

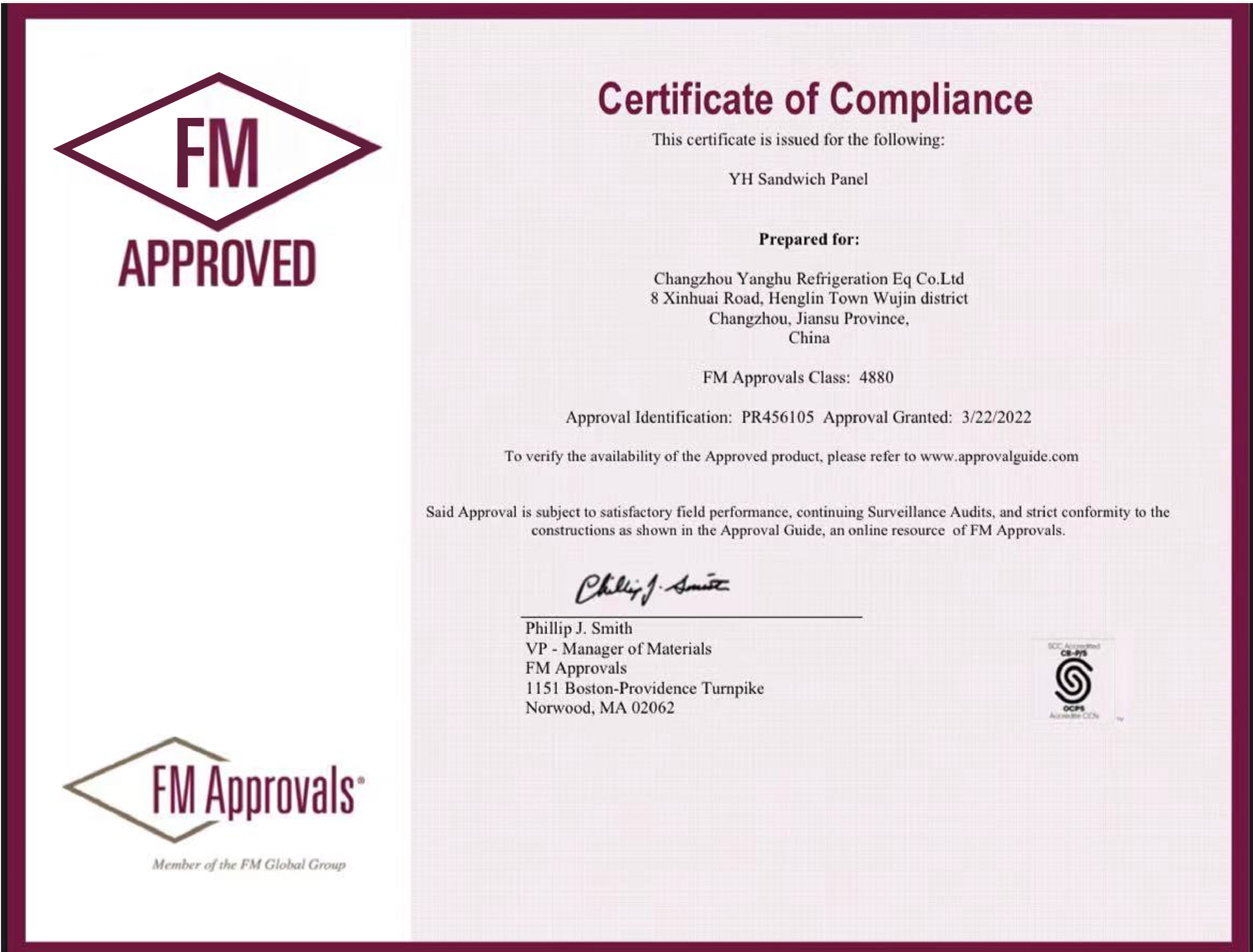

Certificate

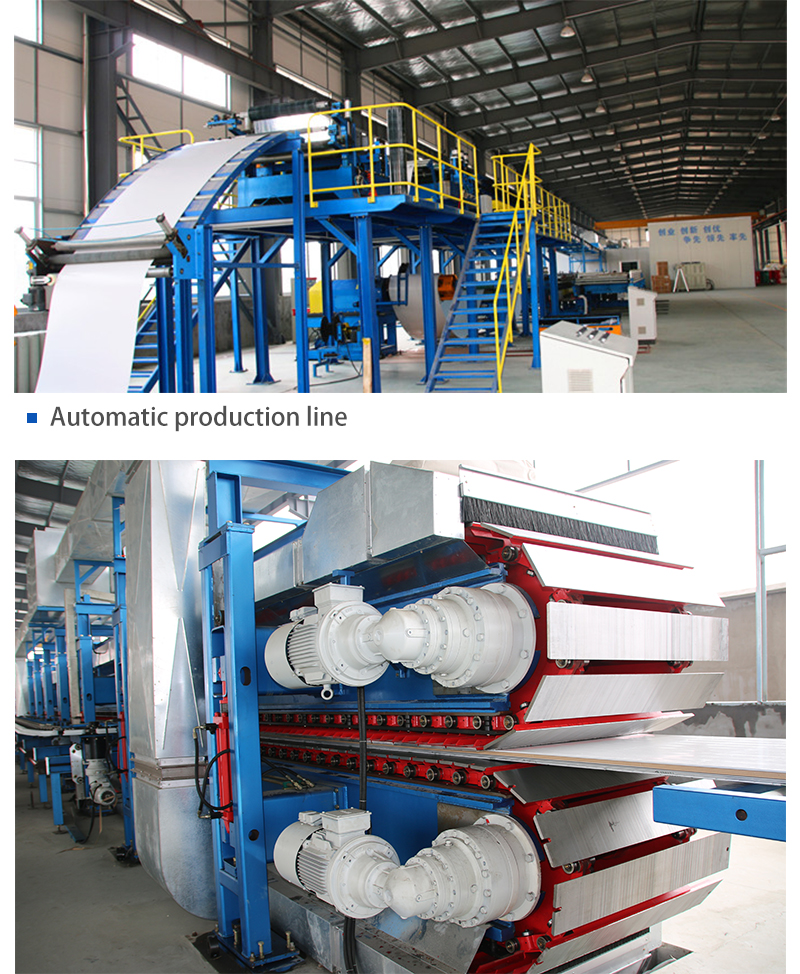

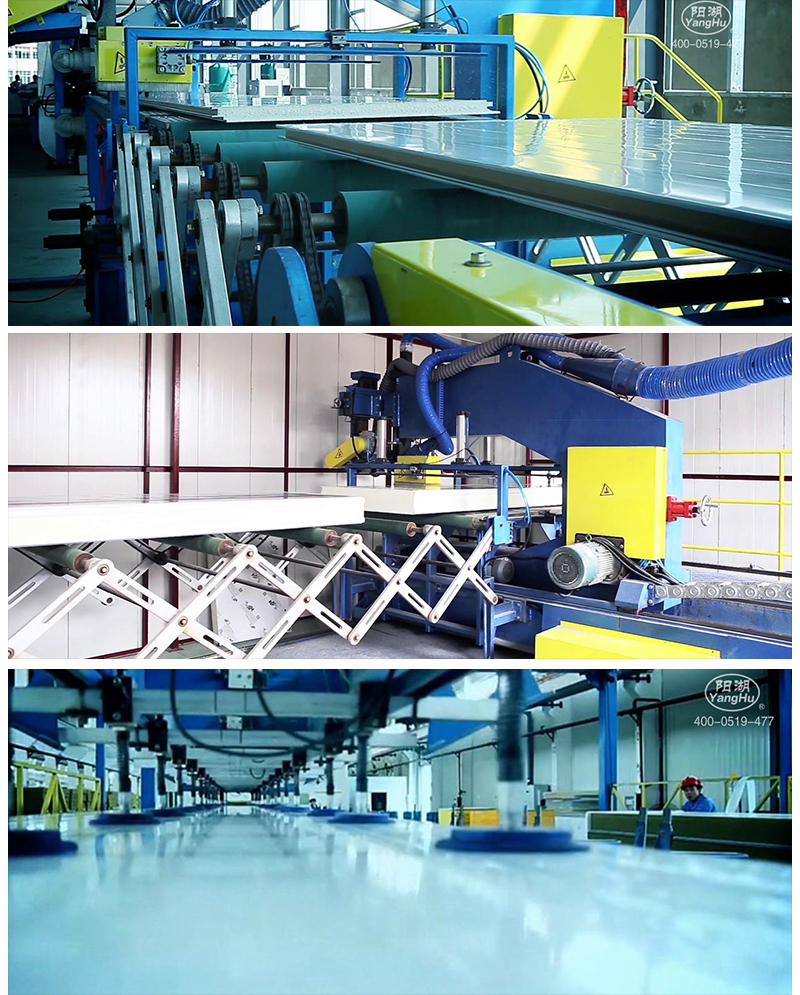

Production equipment

FAQ

Can the power supply be single phase?

Yes, we will evaluate your needs and provide a suitable configuration plan.

Do you make testing and commissioning before delivering the equipment?

Yes, all of our equipment is fully tested and commissioned for at least 3 days to ensure stable performance and output prior to delivery. Upon arrival, you only need to connect to your water and power supply.

Do you provide samples? Is there a cost?

Yes, we can offer the sample for free, but we do not cover the cost of freight.

Do you accept third-party inspection?

Yes, we accept third-party inspection services.

What brand of compressor can you offer?

Normally, we provide original, brand-new Bitzer and Copeland compressors, which are globally recognized.

What are the advantages of the FM sandwich panel?

The chemical formulation of the insulation core layer has passed the testing of FM Global. Its fire prevention and insulation index exceed general industry panel standards, helping guarantee insurance compliance.
