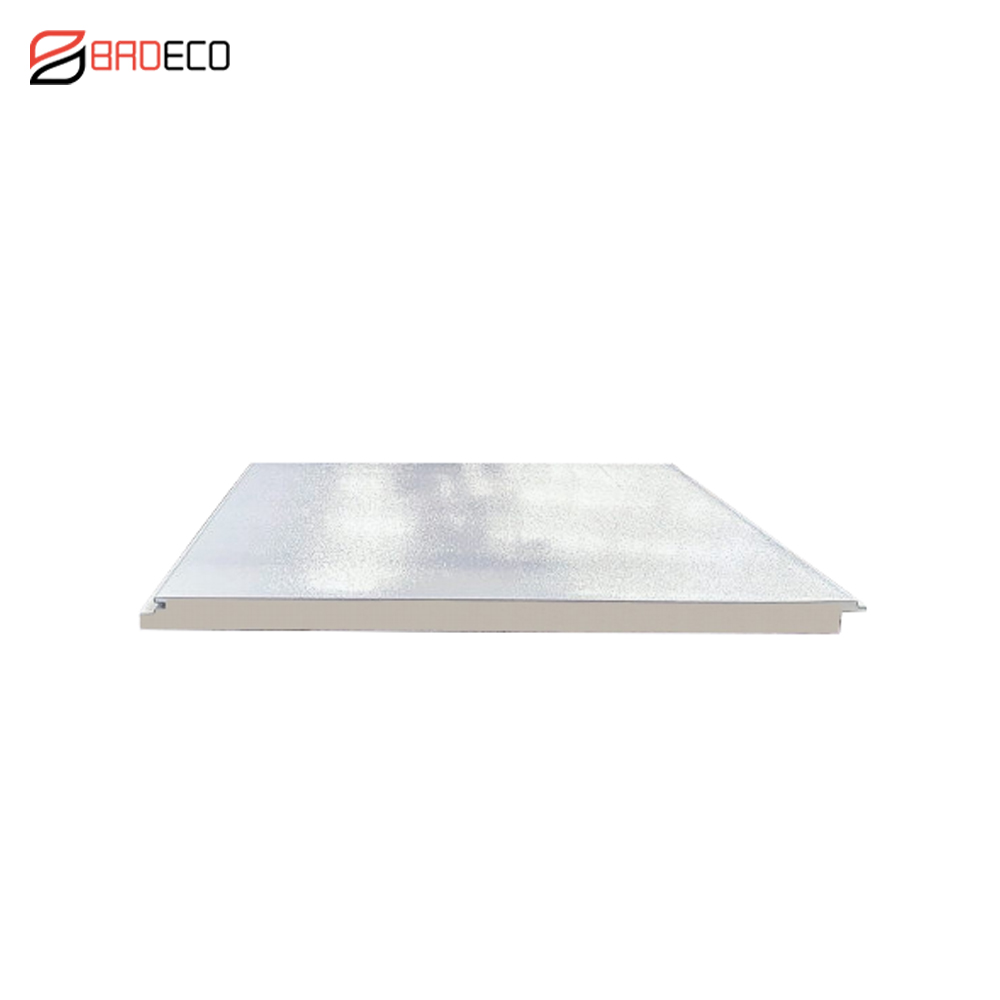

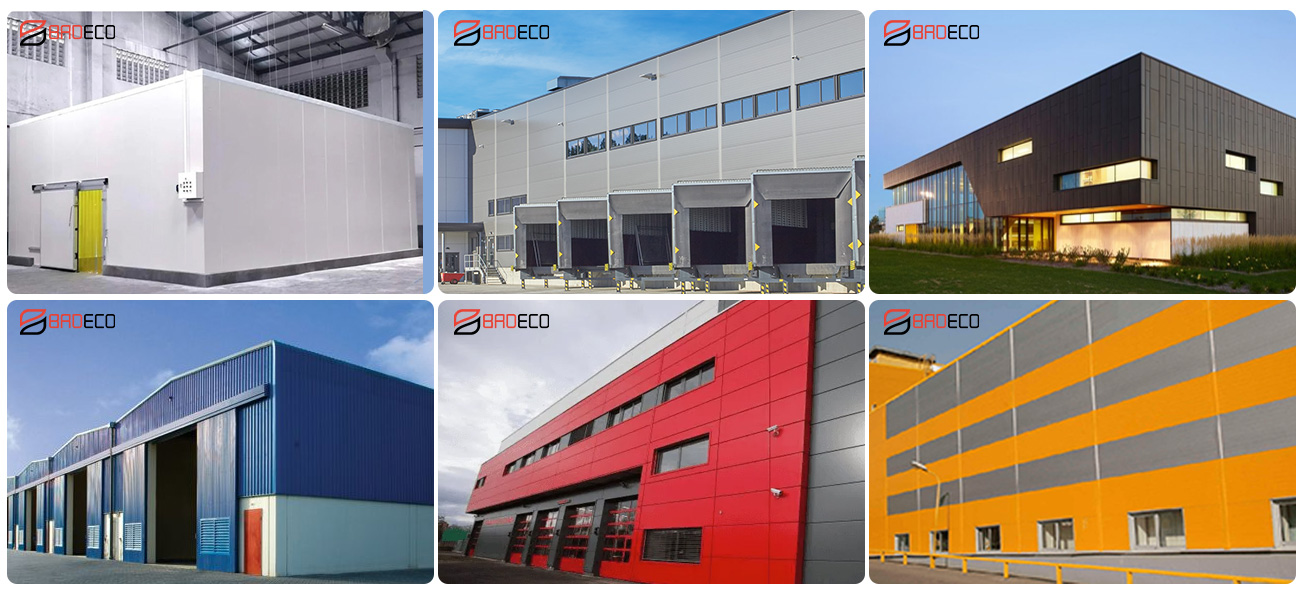

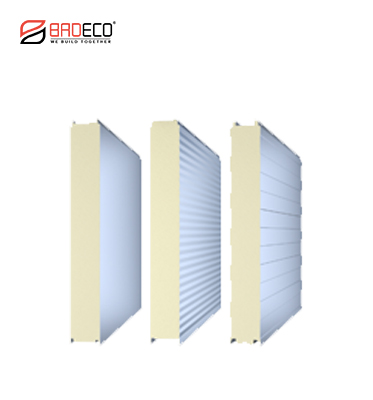

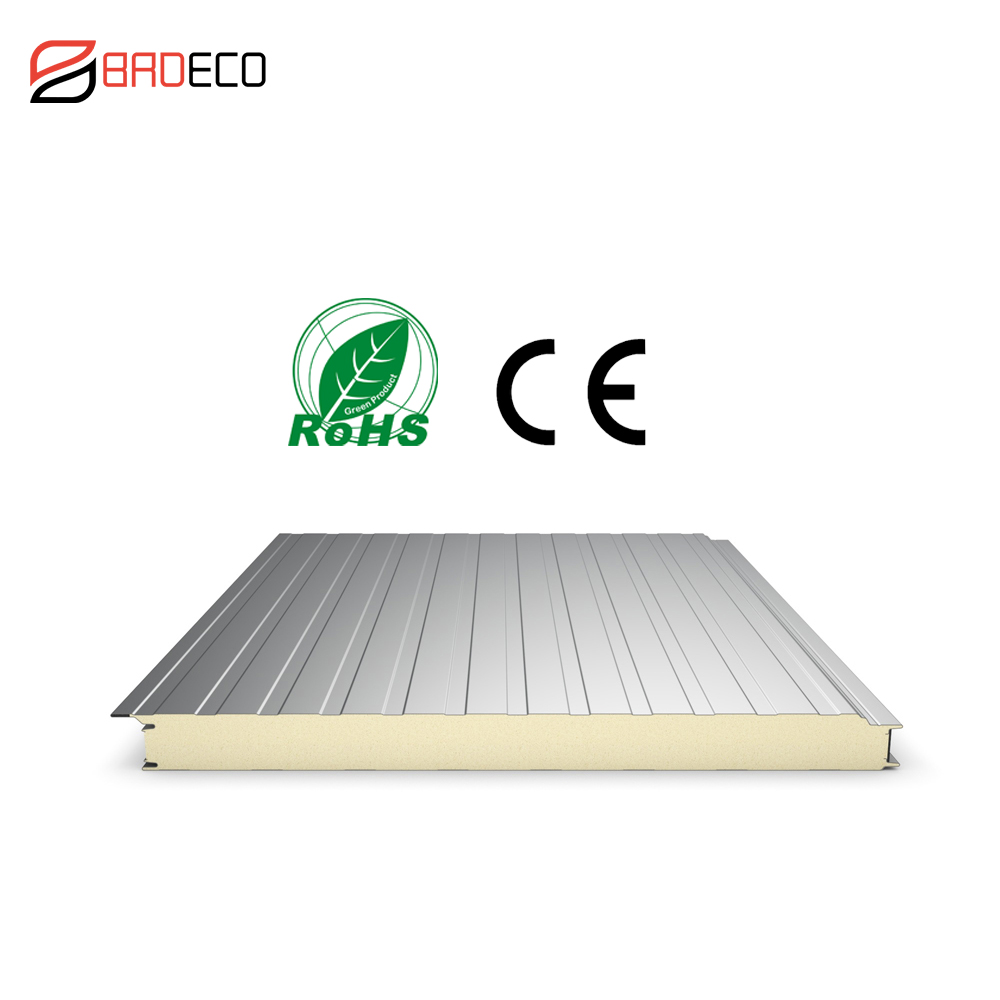

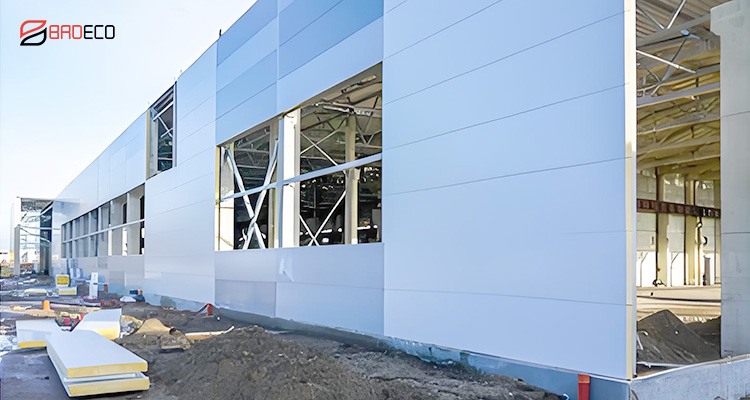

Polyurethane sandwich wall panels are high-performance building envelope materials. They are formed through a continuous molding process, combining two metal panels (or non-metallic panels) with a polyurethane rigid foam insulation layer. They combine thermal insulation, decoration, and structural benefits, mainly used in industrial logistics buildings, cold chain, public commercial facilities, agricultural and animal husbandry buildings, etc.
Our group has successively introduced Italy's fully automatic continuous production line Puma Line and Germany's KraussMaffei Line, which have the characteristics of high automation, high control accuracy, and high safety and stability. It can produce various types of continuous self foaming PUR/PIR polyurethane color steel sandwich panels of 5 million square meters per year, thereby completing customer orders with high quality and efficiency, meeting the personalized enclosure system construction needs of different customers in a one-stop manner.
| PU Wall Sandwich Panels Specifications | |
|---|---|
| Standard Width | 1000mm |
| Length | ≤ 11800 mm |
| Surface Material | Coated steel |
| Surface Thickness | 0.35-0.7 mm |
| Coating | PE/SMP/HDP/PVDF |
| Core Material | PU (Polyurethane) |
| Volume Weight | 40+2 kg/m³ |
| Thickness | 50-200 mm |
| U Value | ≤0.024 w/mk |
| Fire Rating | CLASS B2 |

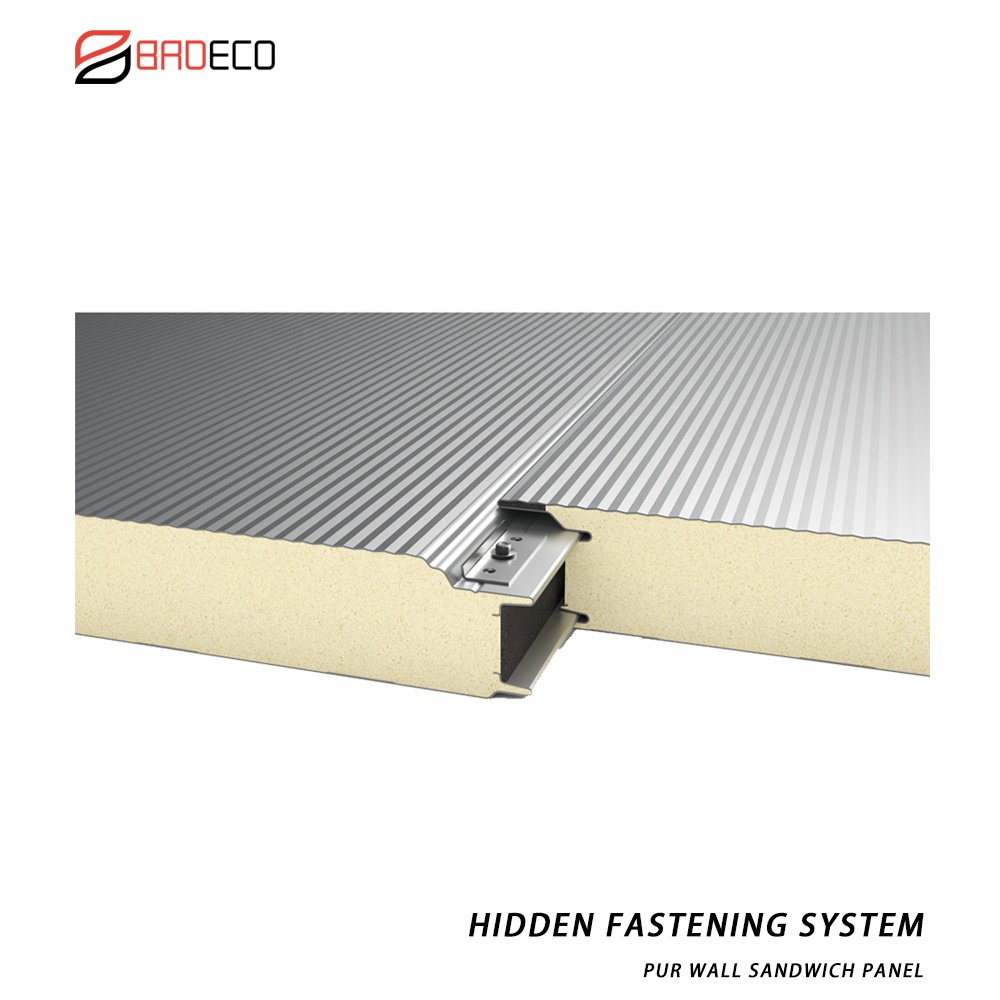

| Joint Type | Hidden fastening system |
| Process | Continuous production line |

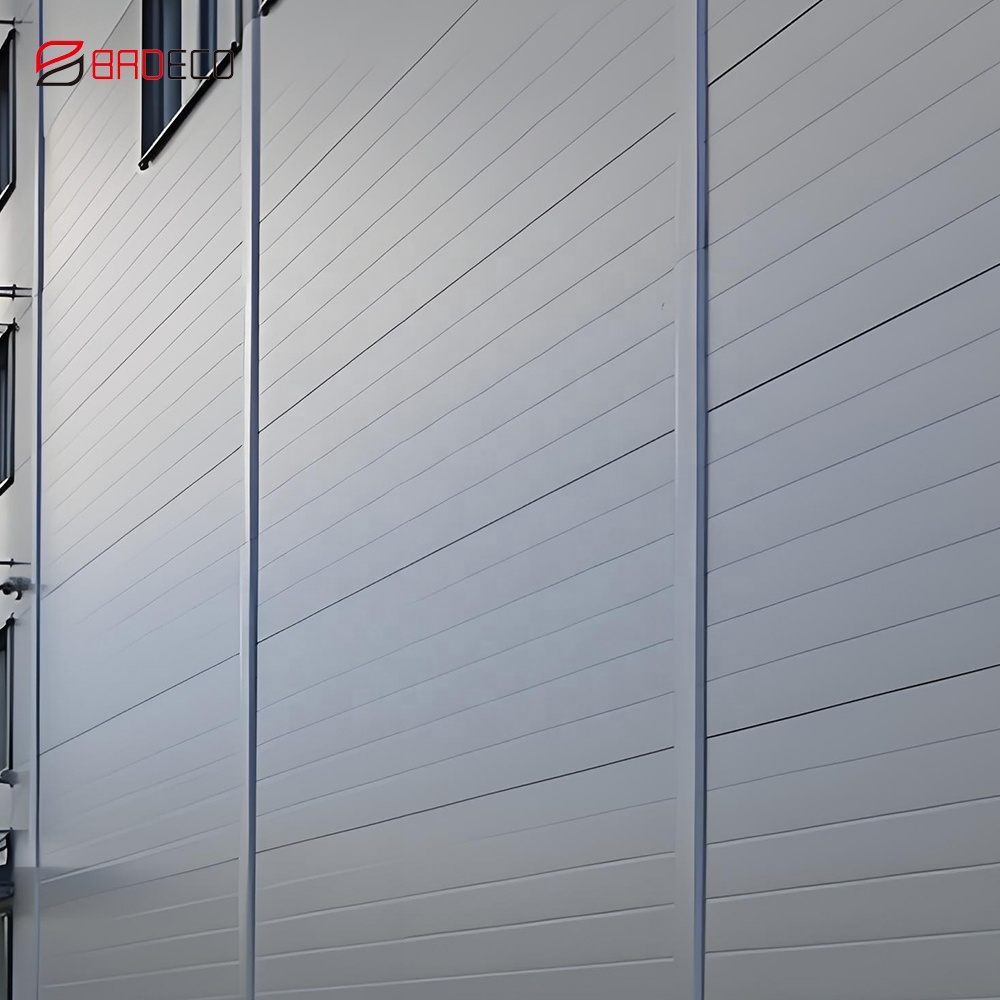

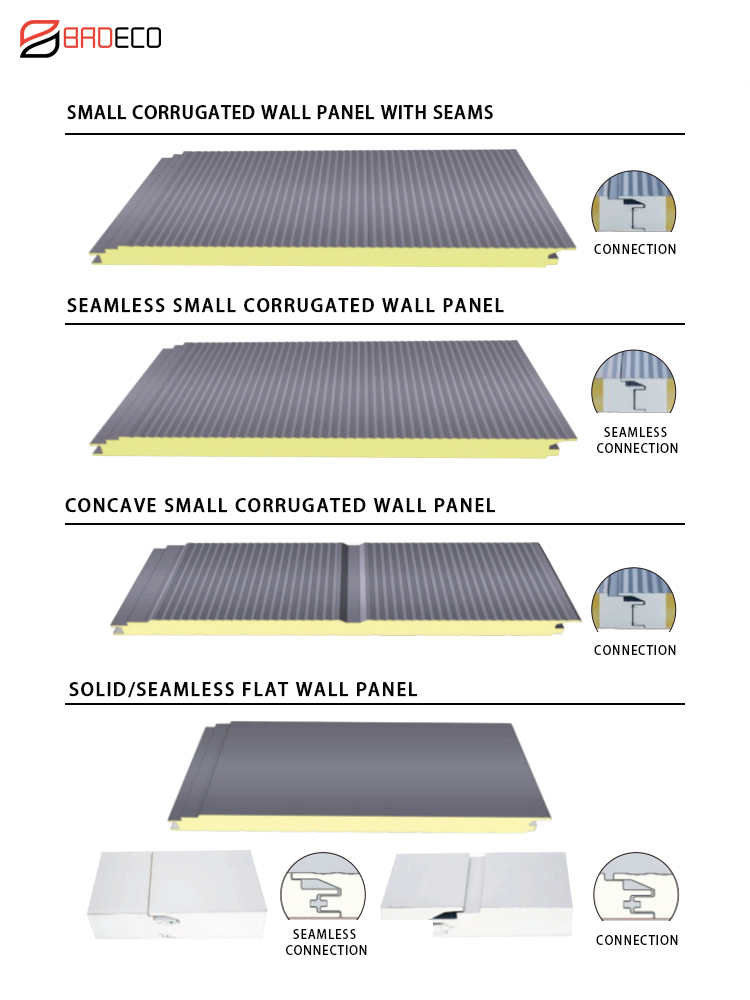

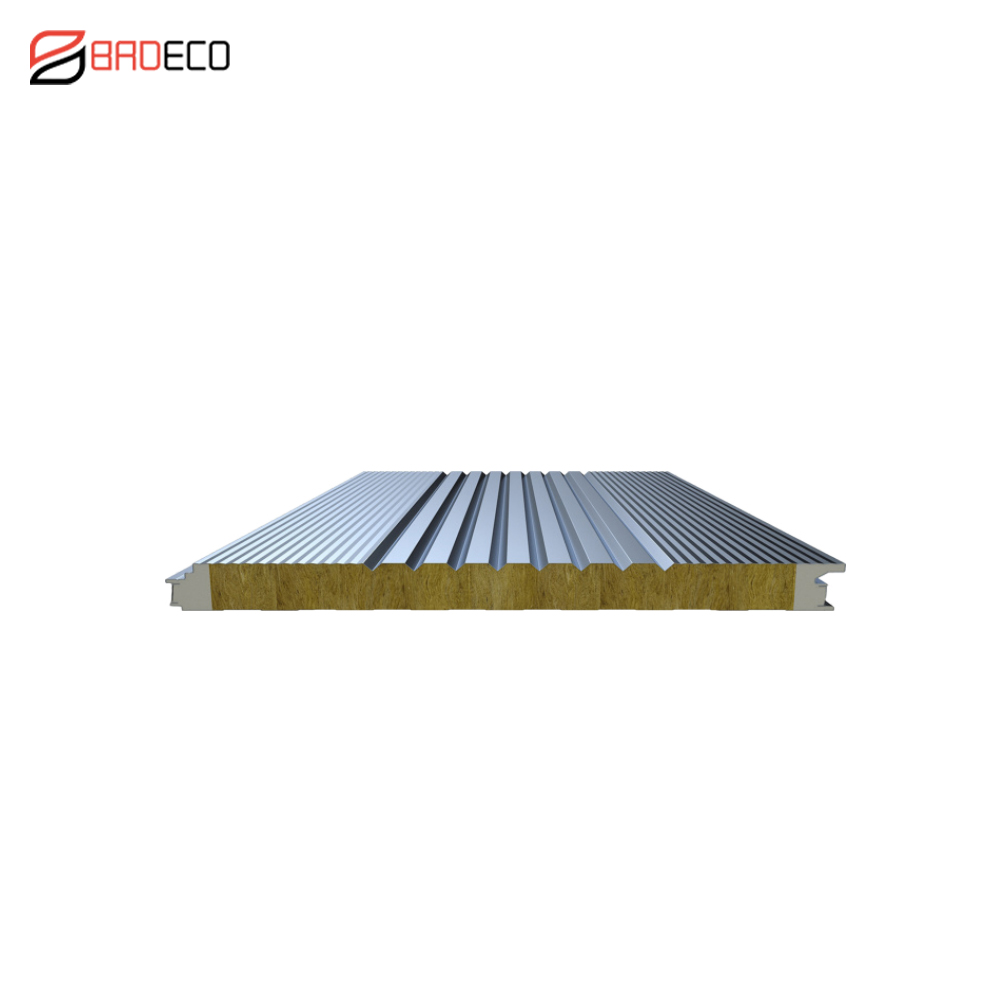

| Surface Texture | Flat, orange grain, rib grain, corrugation, V8 corrugation |
1. For special surface materials like aluminum or stainless steel, please contact technical support.
2. The length can be customized. We recommend a length of ≤ 11800 mm for easy transport in standard containers.
3. Custom widths range: 500 mm - 1200 mm. We recommend the 1000 mm standard width, which eliminates the need for additional molds and offers the best production costs.

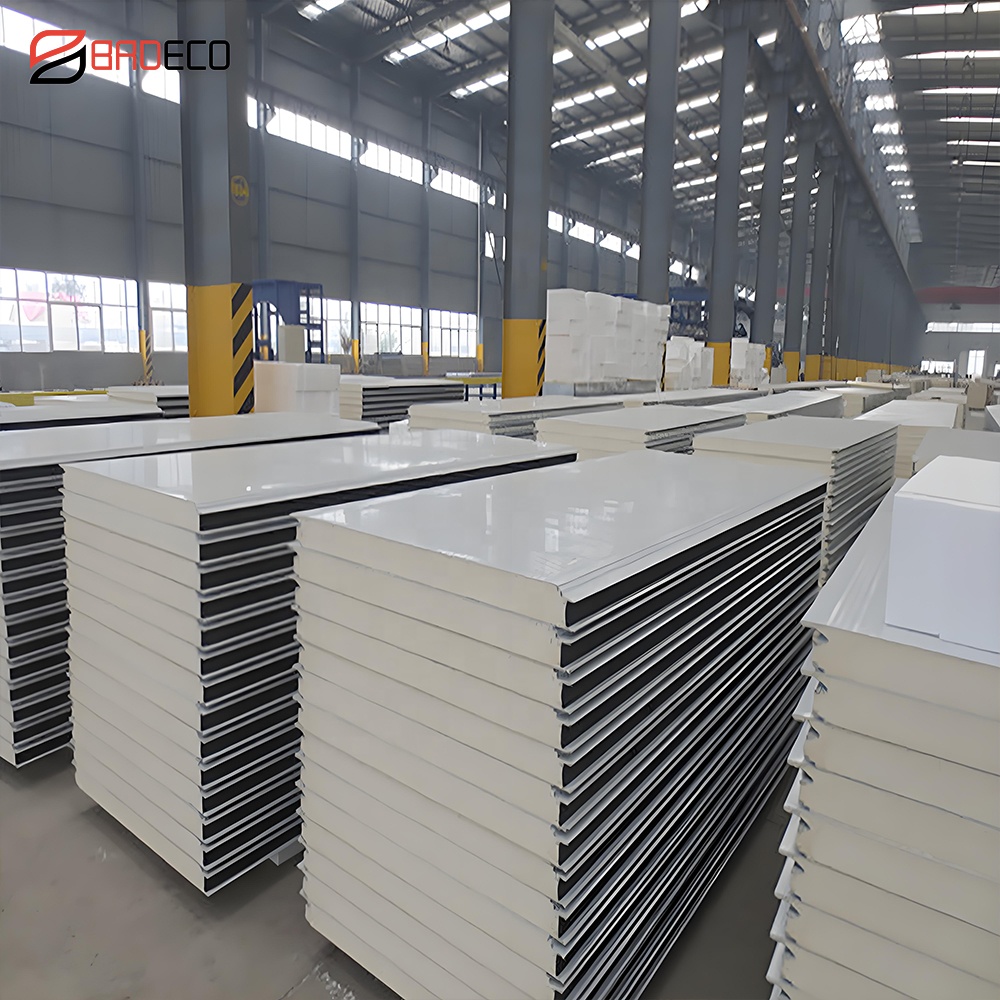

PU/PIR sandwiches offer excellent heat preservation, insulation, and soundproofing. Additionally, the core material is non-combustible and meets fire safety standards. With the joint action of the upper and lower panels and polyisocyanurate, the system delivers high strength and rigidity. The lower panel is smooth and flat with clear lines, which increases the aesthetics and flatness of the room. It is a modern building material featuring easy installation, a short construction period, and a beautiful appearance.

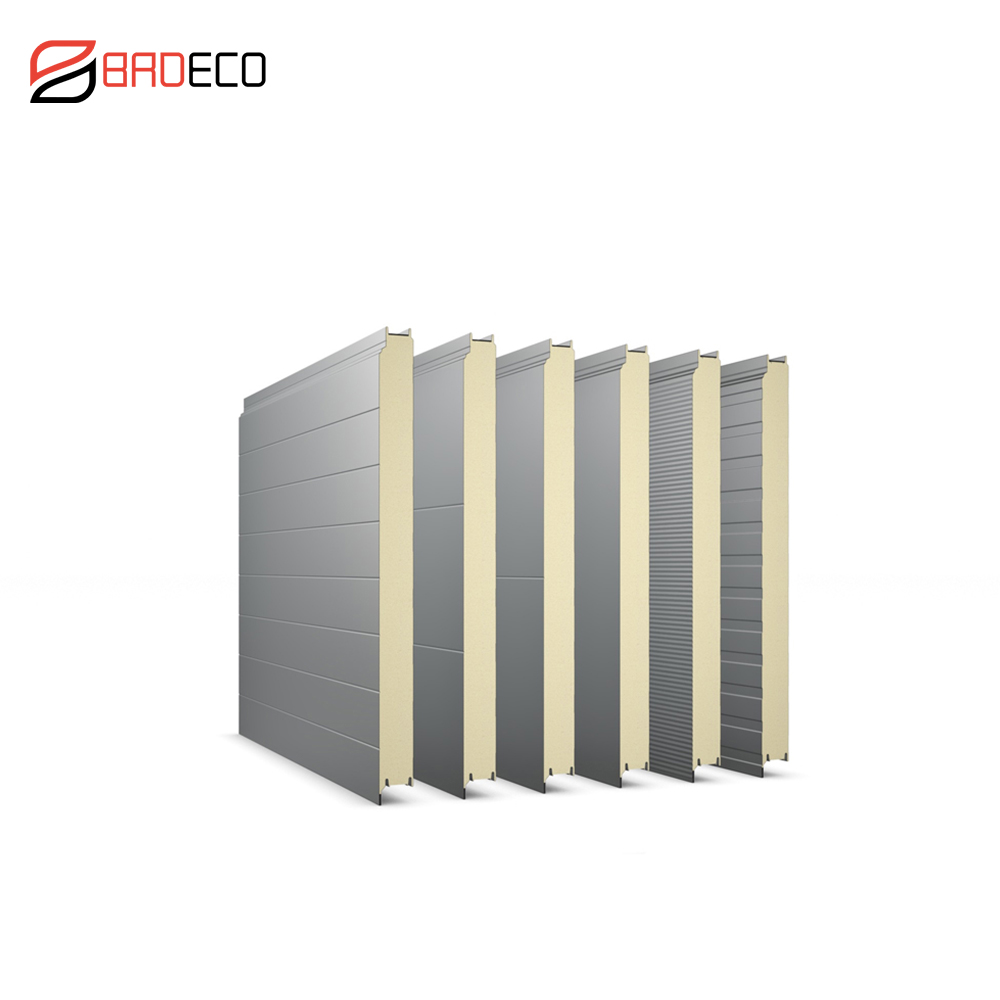

The thermal conductivity of polyurethane rigid foam is typically between 0.018 and 0.024 W/(m·K). This is significantly lower than most common insulation materials (such as EPS foam, rock wool, and glass wool). Thinner sheets can achieve the same or even better insulation performance.
PU sandwich panels, with their excellent thermal insulation properties, can reduce building energy consumption, significantly reduce air conditioning and heating operating costs, bring long-term and significant economic benefits, and comply with green building energy-saving standards.

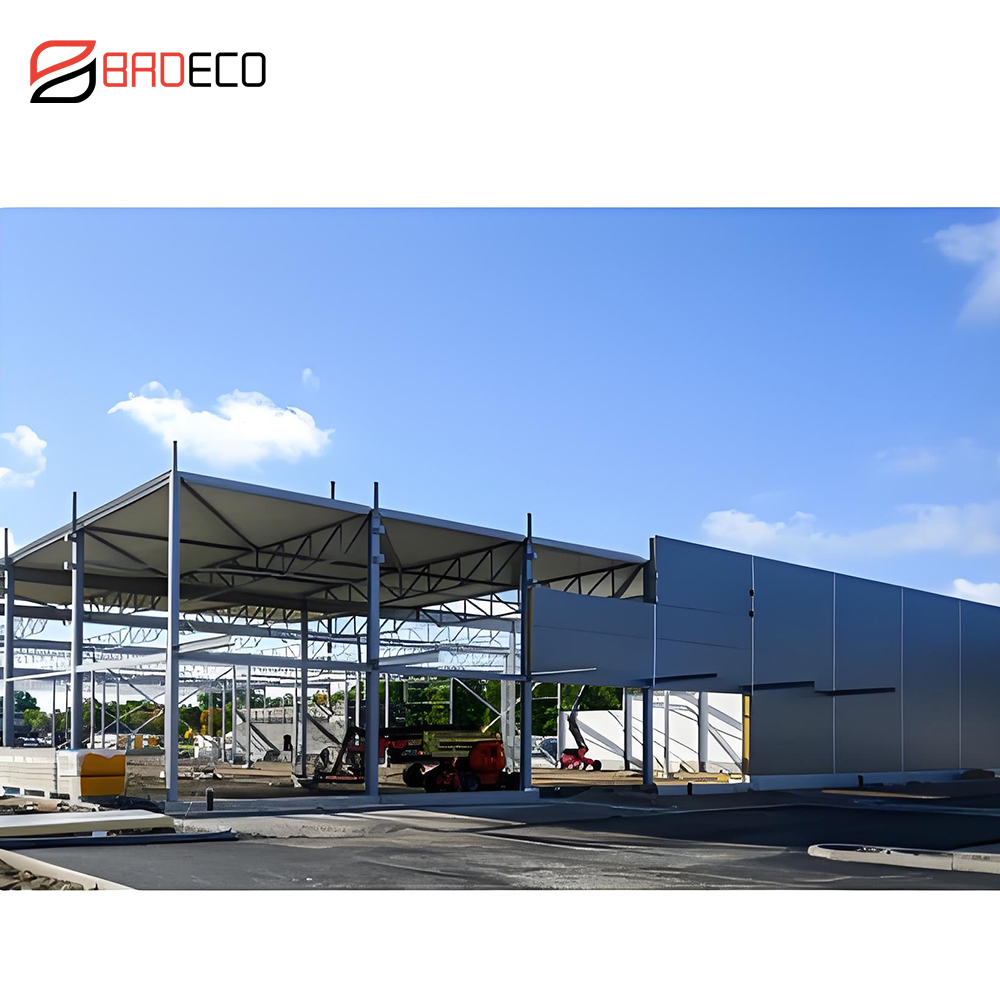

The lightweight nature of these panels reduces building loads, while their excellent compressive and bending resistance allow them to serve as both load-bearing and envelope structures. The integrated molding process ensures resistance to delamination and deformation.

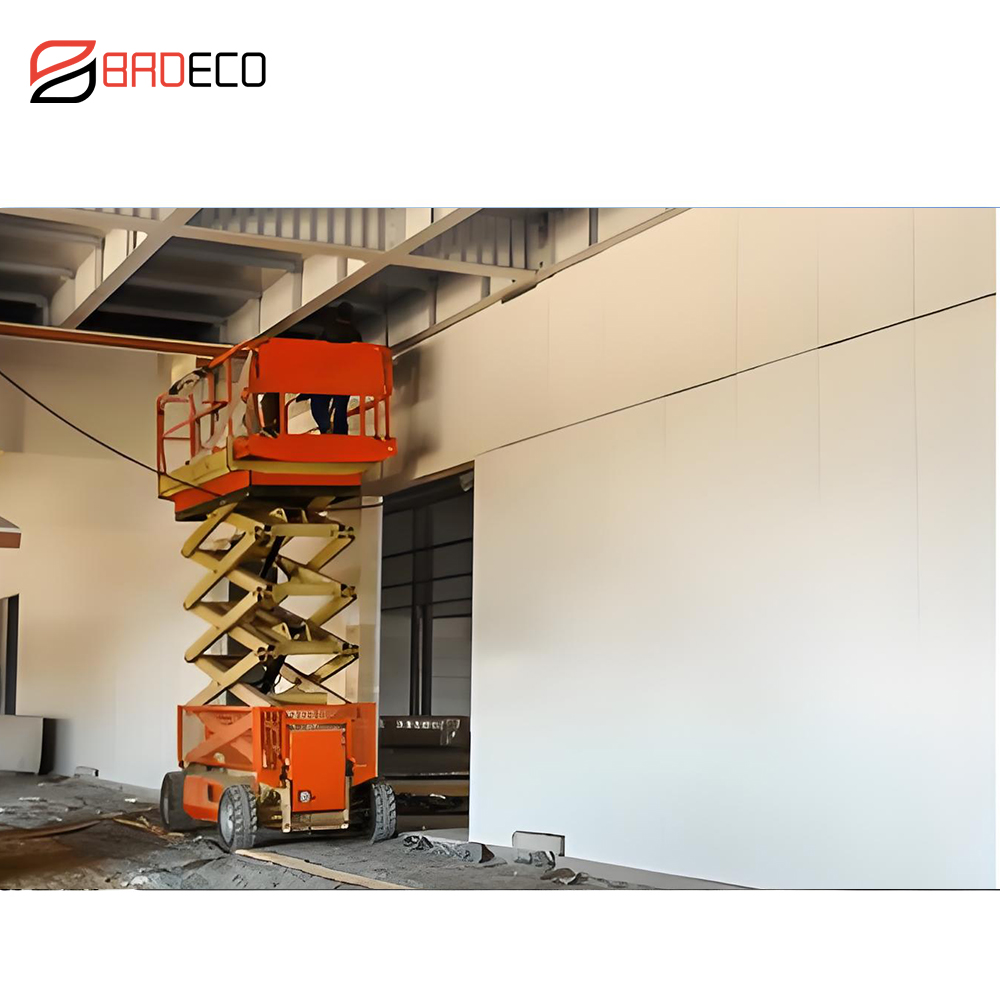

The panels are prefabricated in the factory, ensuring precise dimensions and consistent quality. Upon arrival at the construction site, they can be assembled directly (e.g., using tongue-and-groove plug-in installation). This fast installation process significantly shortens construction time and saves labor costs.

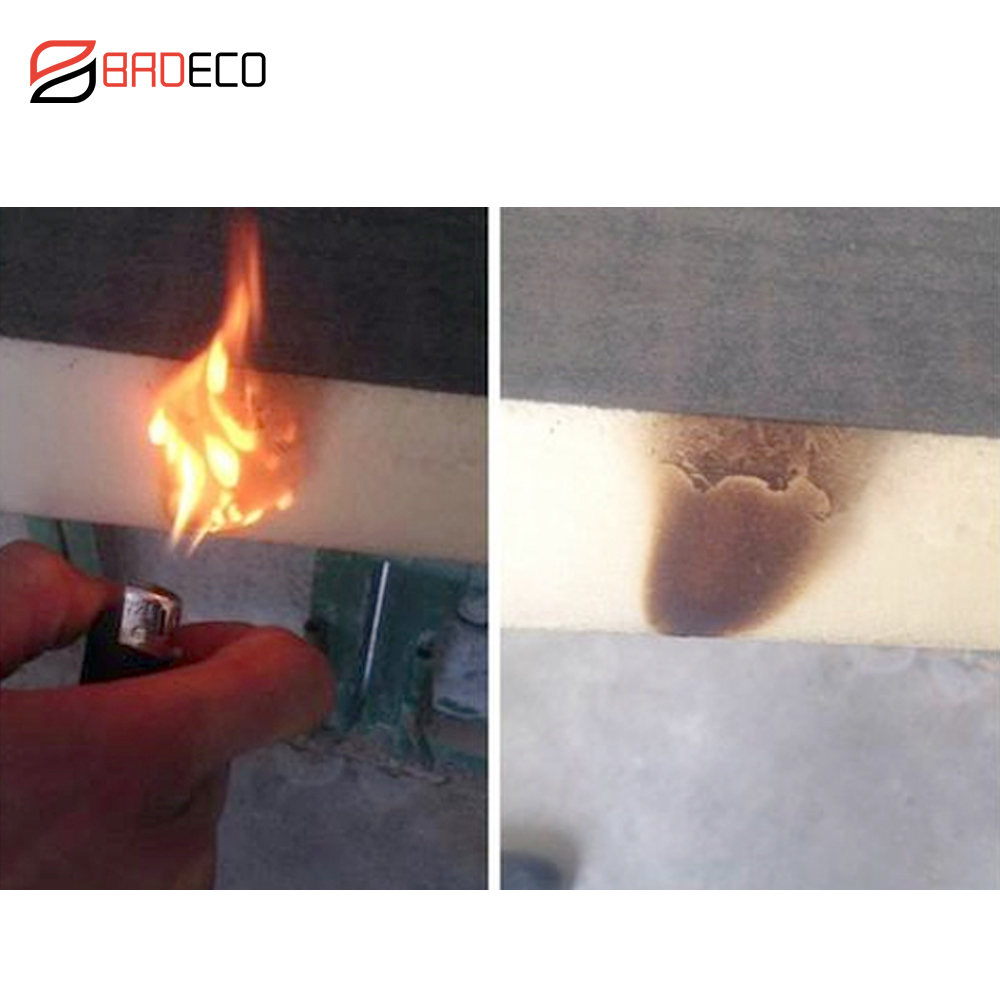

By adding flame retardants, polyurethane sandwich panels can achieve Class B1 (flammable) or Class B2 (combustible) fire protection standards. High-quality B1-rated products effectively slow the spread of fire and meet the fire safety requirements of most commercial projects.

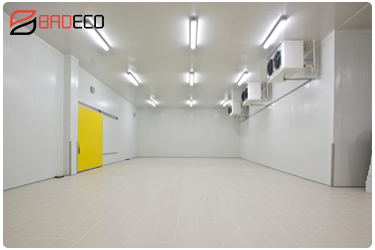

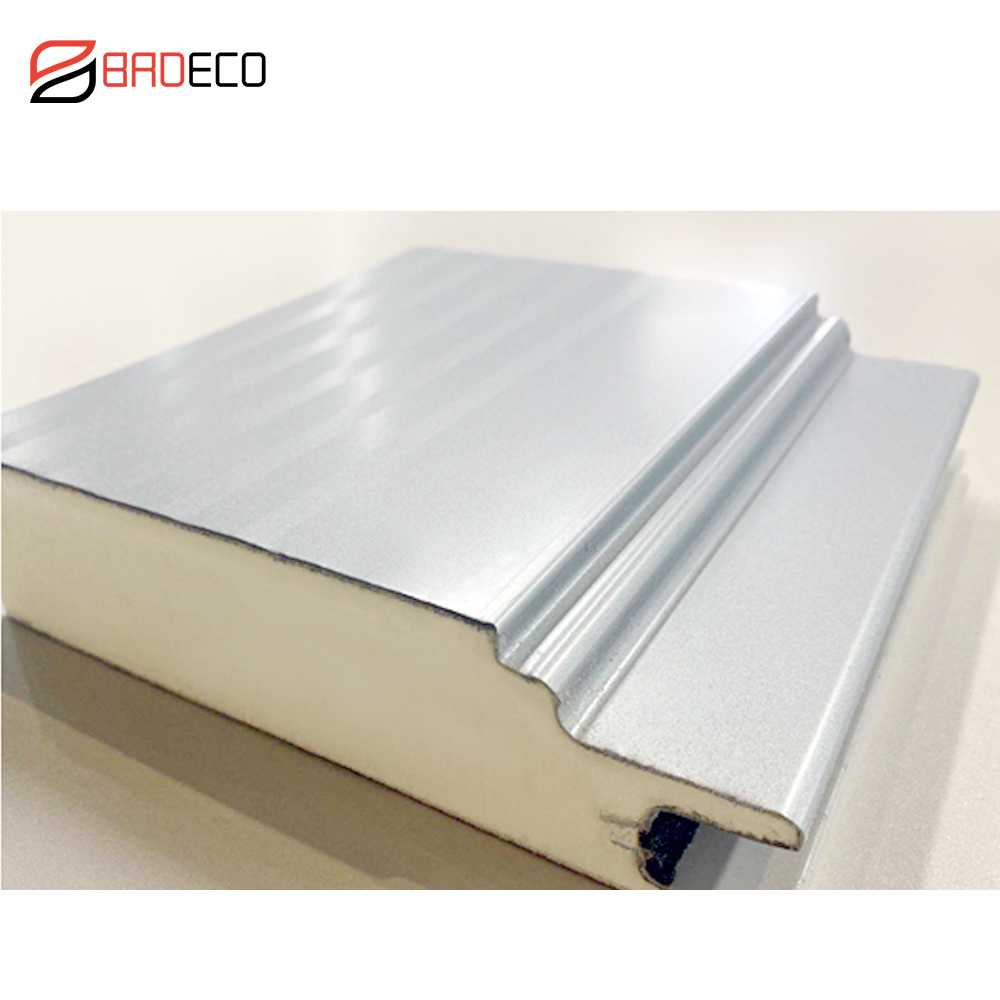

Rigid polyurethane foam features a high closed-cell ratio (≥90%). These pores are not interconnected, making them less susceptible to moisture absorption and providing excellent waterproof properties. This is particularly important for cold storage and humid environments.

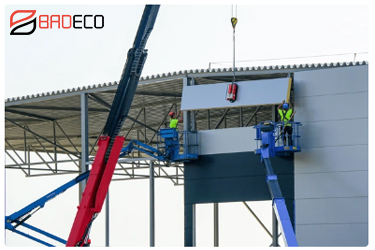

Our sandwich facade products are highly innovative in terms of material structure, system design, and manufacturing processes. Its advanced prefabricated building design concept allows the advantages of standardized design, factory processing, and modular construction to be fully utilized. Please contact us for more information on the sandwich facade systems.

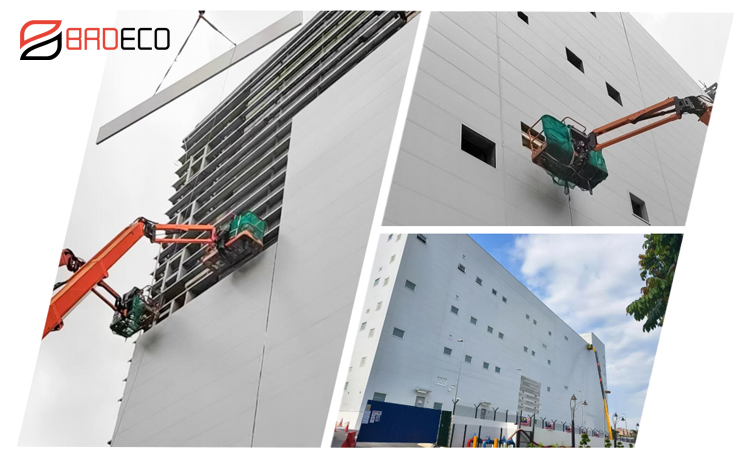

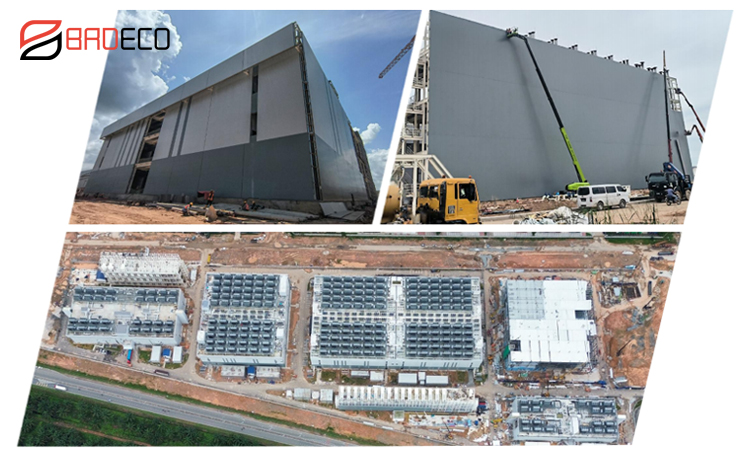

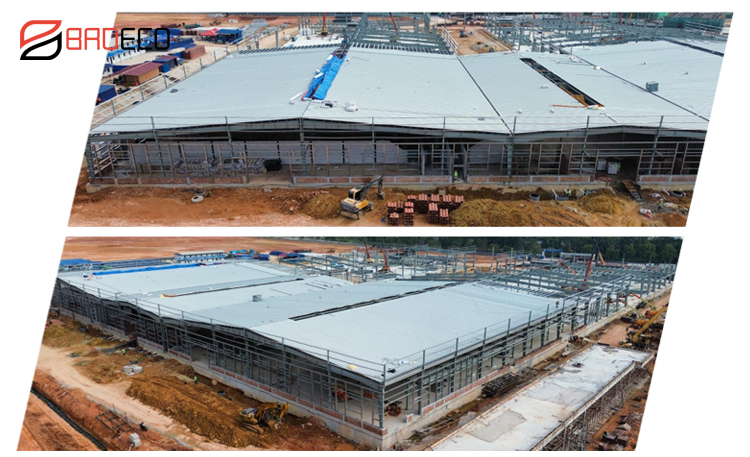

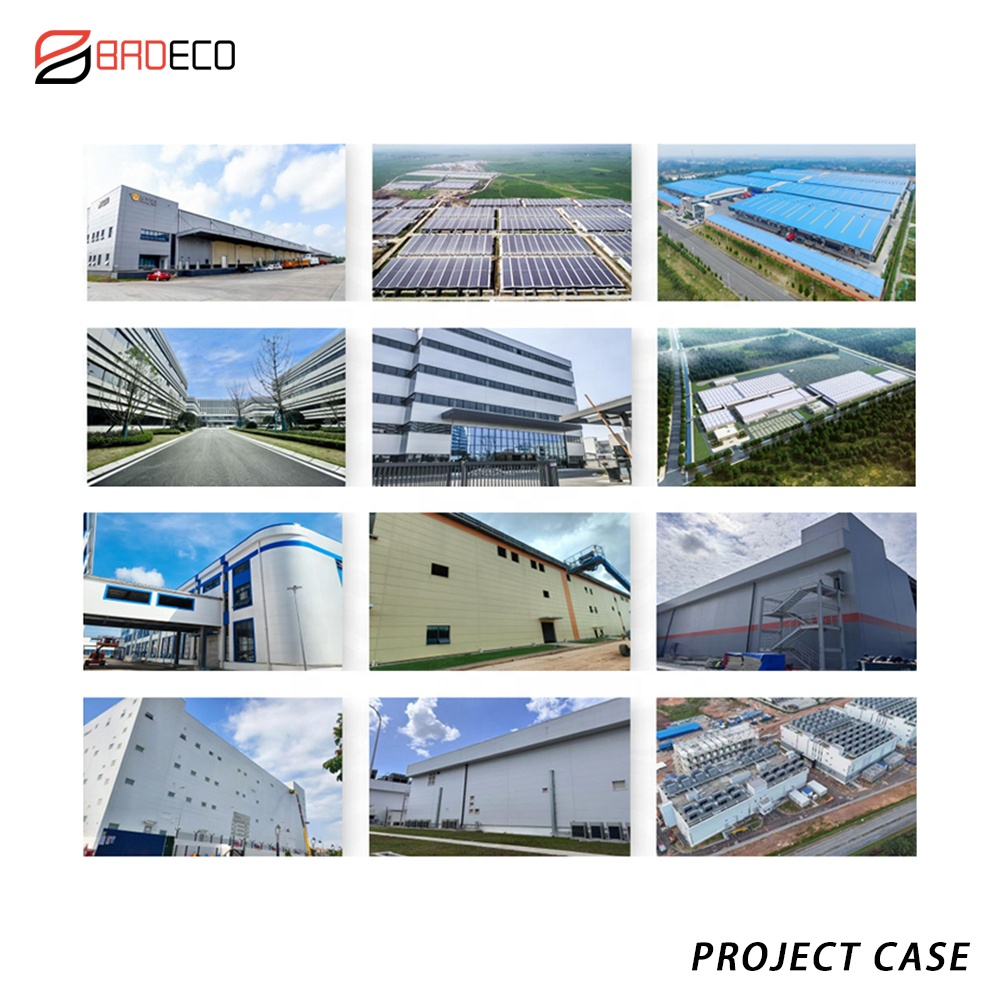

Over 17,000 successful project cases. We have a professional design team equipped with high-standard equipment to provide solutions according to customer needs.

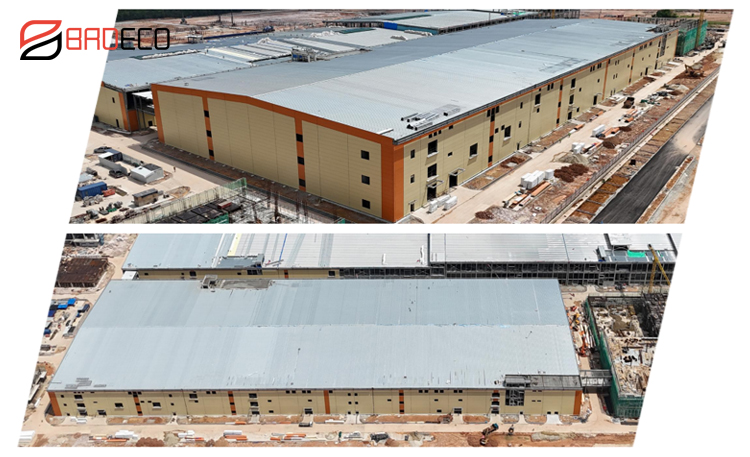

Project Time: 2024
Project Location: Johor, Malaysia
Project Scale: 50,000 square meters
Product Specification: Steel structure + Rockwool Panel
Project Time: 2024
Project Location: Johor, Malaysia
Project Scale: 20,000 square meters

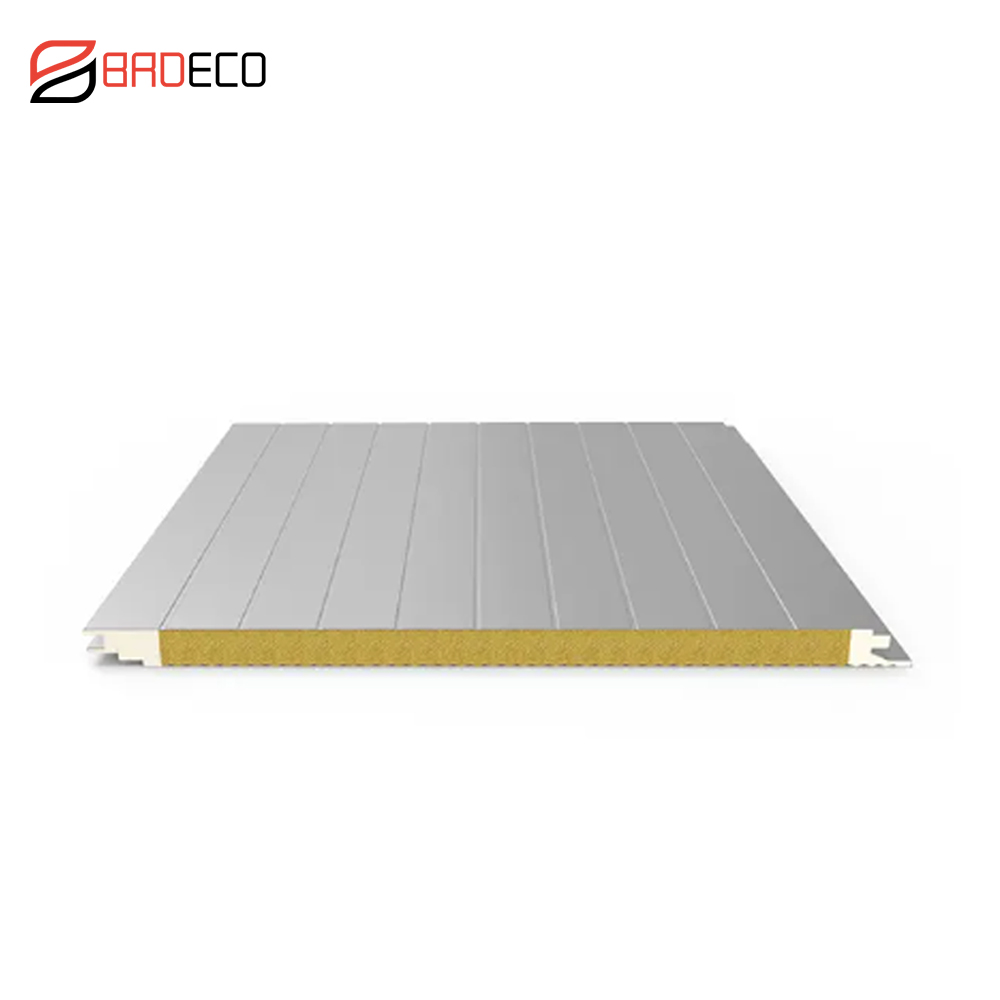

Product Specification: 100mm Polyurethane Sealing Rockwool Panel
Project Time: 2024
Project Location: Pontian, Johor
Project Scale: 40,000 square meters
Product Specification: Interior cleanroom panels + Metal rock wool sandwich exterior wall panels
Project Time: 2024
Project Location: Kuala Lumpur
Project Scale: 8,000 square meters
Product Specification: Clean sandwich panels + Polyurethane edge-sealed rock wool panels

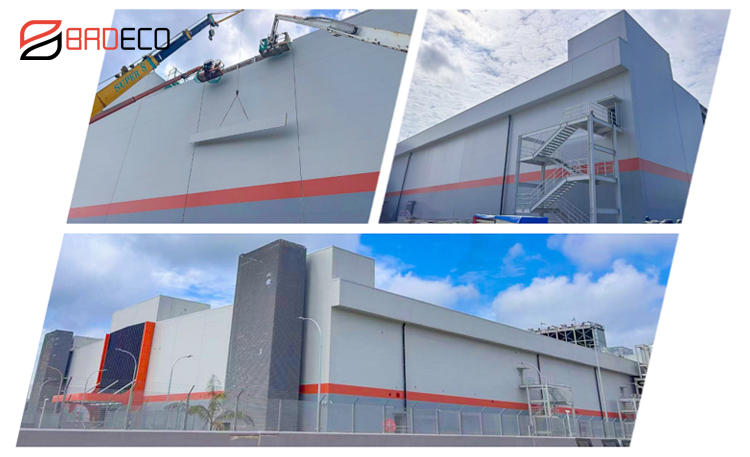

Project Time: 2025
Project Location: Port Dickson, Negeri Sembilan
Project Scale: 60,000 square meters

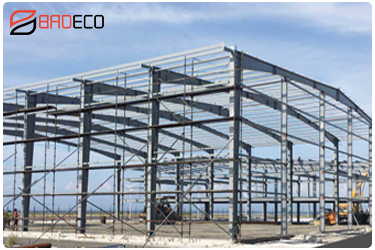

Product Specification: Steel structure + roof panel + wall panel
Project Time: 2025
Project Location: George Town
Project Scale: 200,000 square meters
Product Specification: Clean panels + PU edge-sealed rock wool panels

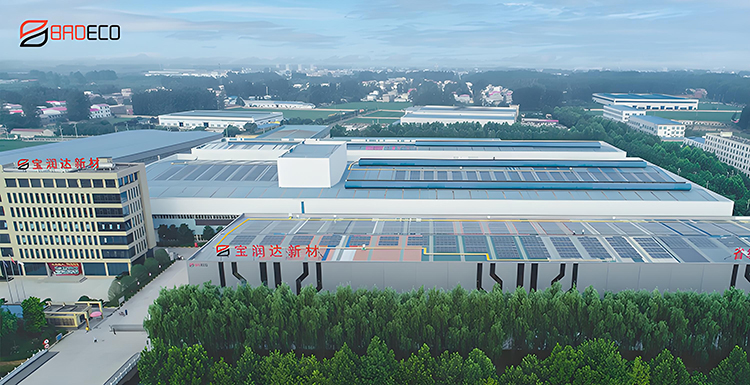

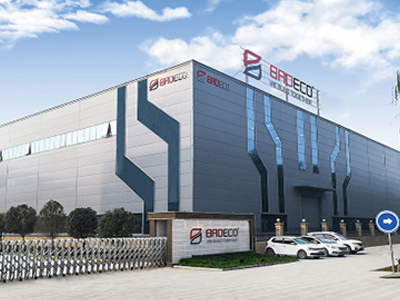

The enterprise was founded in 2011 (Stock Code: 873445). It is a national high-tech enterprise specializing in the research, development, manufacturing, and service of green, energy-saving, and environmentally friendly new materials. Our main business focuses on the following key areas: Cold storage and industrial insulation materials, Integrated decorative and insulation panels, Other mainstream international green, energy-saving, and environmentally friendly new materials.
Corporate Vision: Building a better world, making life more comfortable for people and architecture on Earth.
Corporate Mission: To be the world's most beautiful factory, creating products and nurturing talent, achieving both spiritual and material prosperity for employees. To provide professional and systematic brand services for customers, complement strengths with peers, and coexist harmoniously. To save energy and contribute to society through public welfare.

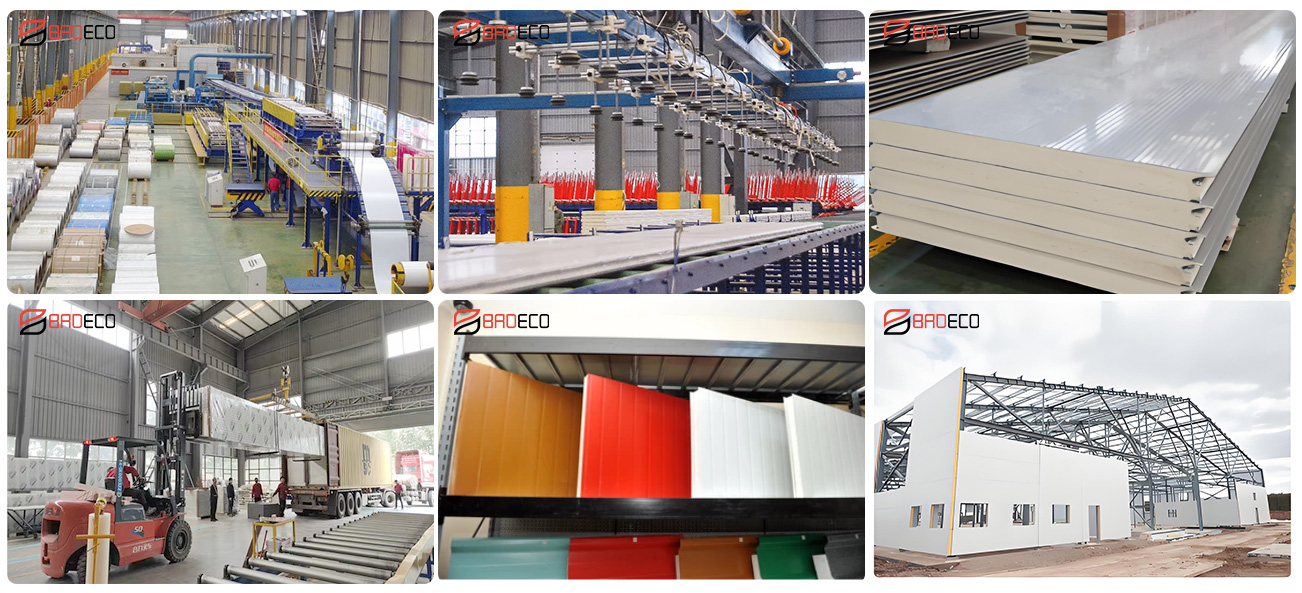

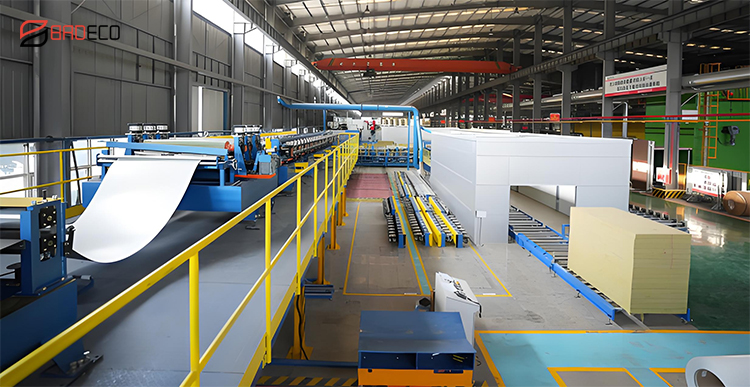

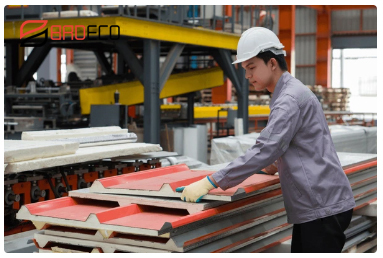

We offer world-leading intelligent, fully automated workshops, including the German Klaus Maffei production line, Italian fully automatic continuous production line Puma line, Korean automatic cutting line, Italian OMS company's 14 meter extended feeding system, wiring PIR hook plate cyclopentane foaming system, etc. Please send us an inquiry for an in-depth discussion.

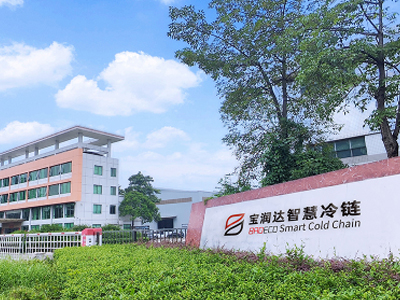

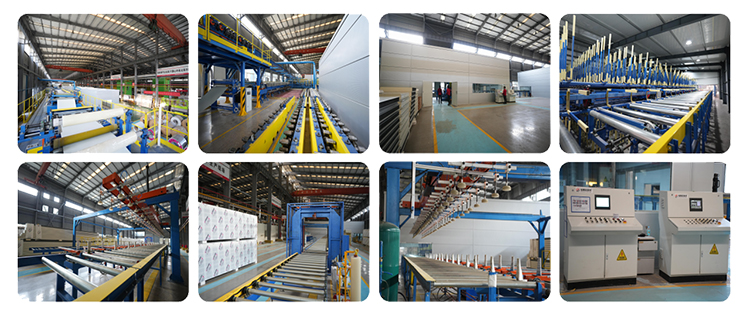

The manufacturing group has built 10 product lines, including 3 automatic polyurethane energy-saving panel production lines, 3 automatic clean room panel production lines, 3 fully automatic insulation integrated panel production lines, and 1 curtain wall aluminum plate production line. The annual production capacity is about 30 million square meters, ranking in the top three in the industry.

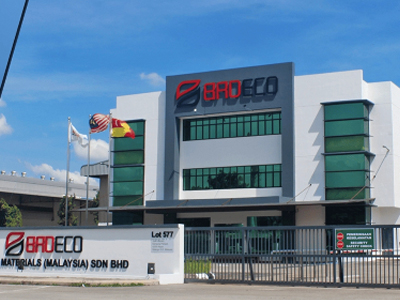

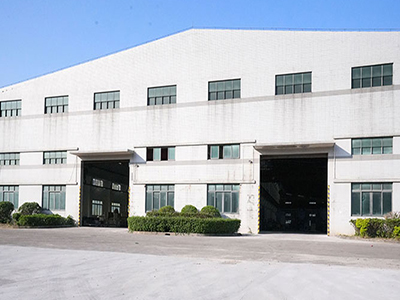

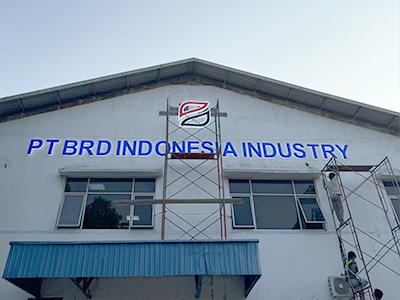

The company employs nearly 500 staff members, including 50 R&D personnel. The company has established six major manufacturing bases, and operates 10 domestic business centers and 6 overseas business centers. It also features a provincial-level technology center, a provincial engineering technology center, and two standard laboratories.
We have served over 17,000 domestic and foreign customers. Promoting the intensive use of social resources through the innovation and circulation of industrial products. Committed to being a respected and sustainable business.
Our sandwich composite panels are designed using high-quality raw materials combined with mature panel profiles and scientific installation systems. They provide exceptional fire resistance, heat preservation, watertightness, weatherability, wind resistance, and pressure resistance, as well as outstanding sound absorption and insulation, satisfying the personalized architectural requirements of any structural development.
