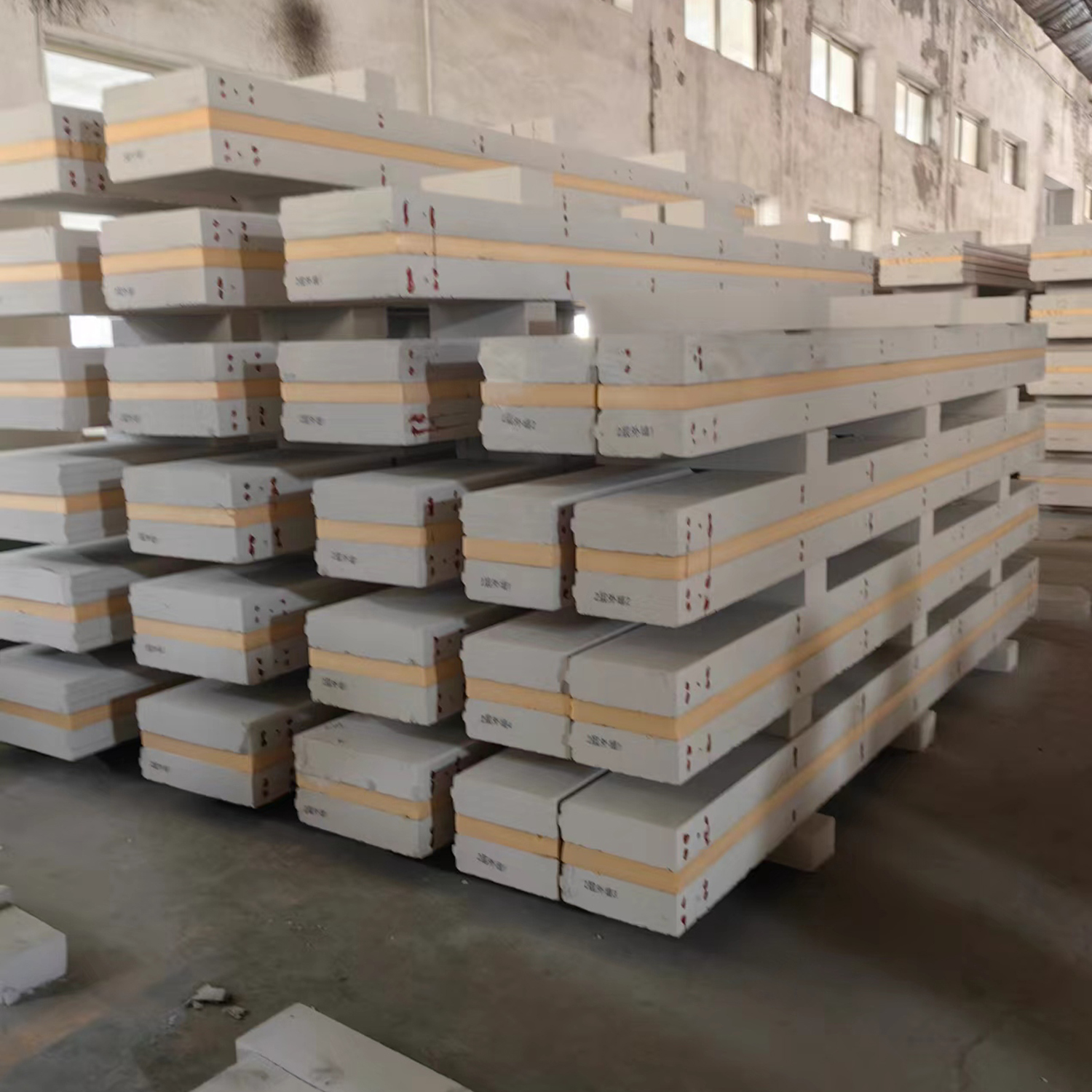

Best Factory's Prefabricated Insulated Wall Structure Modular Kit Panels for Hotels and Home From China

Product Description

Prefabricated Insulated Wall Structure Modular Kit Panels
Parameter table
Parameter Specification Chart
What is Integrated Wall Panel?
Autoclaved Sand Aerated Concrete Low Internal Stress Thermal Insulation Composite Wall Panel is a patented wall system independently researched and developed by our professional building materials group. It is a prefabricated lightweight self-insulating external wall panel product designed specifically for non-load-bearing external walls.
It effectively improves the thermal insulation performance of ordinary aerated concrete slats, realizing that a single wall can meet the requirement of 80% and above energy saving. The wall is factory-finished, which effectively improves construction efficiency and reduces overall construction costs.
  • Built-in high-efficiency heat preservation layer prevents the shedding disadvantages common in traditional external paste heat preservation practices.
  • The grass-roots level of the facade decoration is the aerated concrete outer surface, which is flat and avoids quality problems like traditional external insulation hollow drum and surface layer cracking.

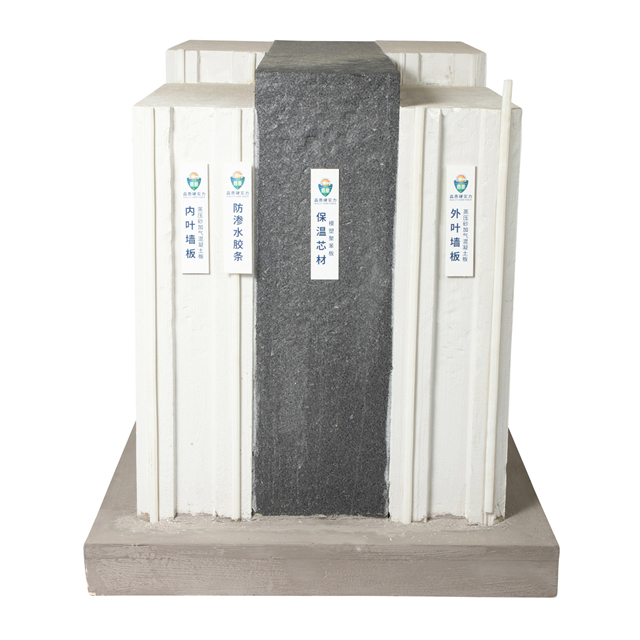

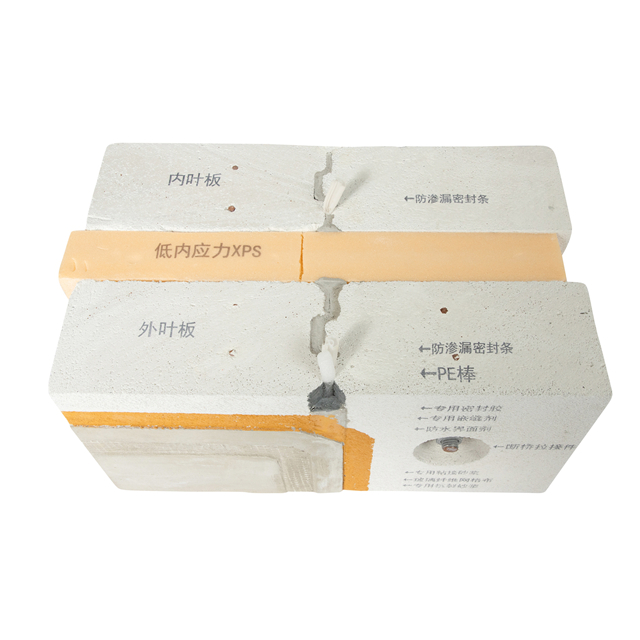

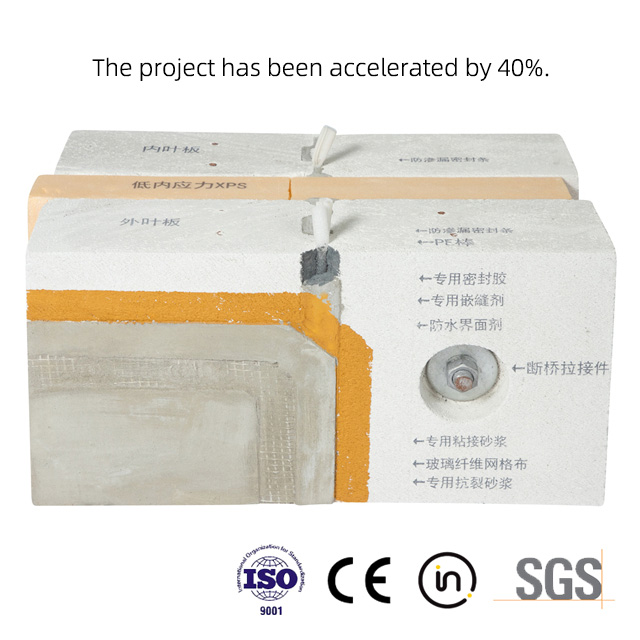

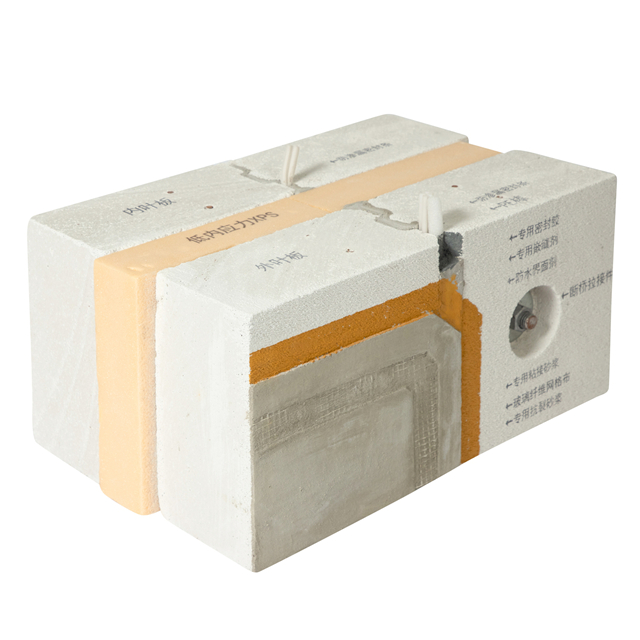

Integrated Wall Panel (Outside)
80% Energy Saving 100mm autoclaved aerated concrete panel for inner leaf
40mm graphite extruded polystyrene board
100mm autoclaved aerated concrete panel for outer leaf
83% Energy Saving 100mm autoclaved aerated concrete panel for inner leaf
50mm graphite extruded polystyrene board
100mm autoclaved aerated concrete panel for outer leaf
Ultra-low Energy Consumption 150mm autoclaved aerated concrete panel for inner leaf
0.15W/(m2K) 140mm graphite extruded polystyrene board
  100mm autoclaved aerated concrete panel for outer leaf
Standard size
Length (mm) Height (mm) Thickness T
1200 ~ 6000 600 Based on energy efficient design requirements
300 Module Feed
Note: Other sizes to be agreed upon above supply and demand.
Product Description
Wall Structure System Overview
Wall Panel Specification Header
Technical Specifications and Layers
Packaging & Shipping
Secure Packaging and Logistical Loading

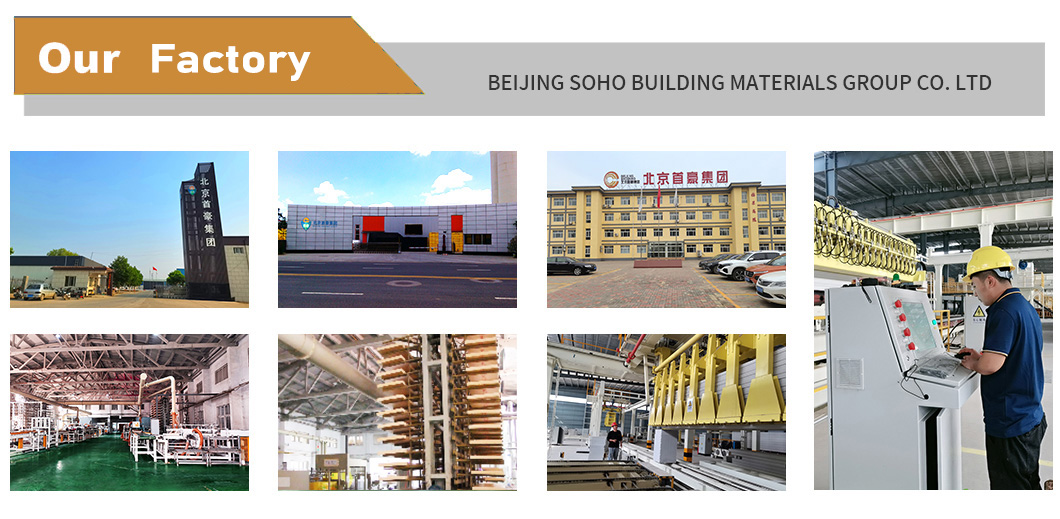

Manufacturing Facility
Production Facility Aerial View
Automated Manufacturing Line

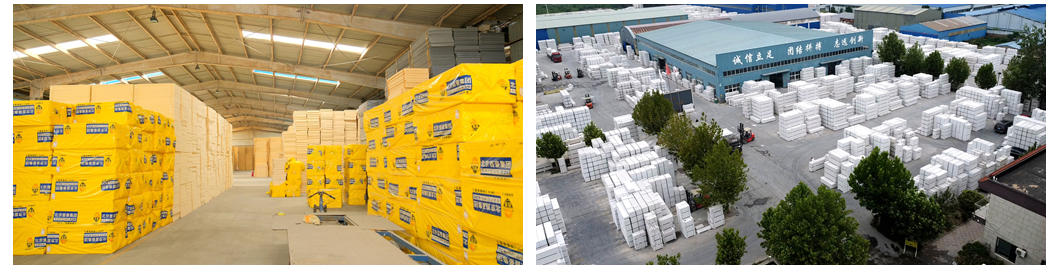

Raw Materials Processing
Panel Curing Area
Quality Control Testing
Finished Product Storage
Logistics Center Loading Bay
Frequently Asked Questions
FAQ Overview Support
What services and customization do you offer for building materials?
We provide comprehensive OEM/ODM services, allowing customer logos and specific design requirements to be built directly into the products. Samples can be provided upon request.
What is your factory's production capacity for insulation products?
Our annual production capacity includes 800,000 cubic meters of XPS series, 600,000 cubic meters of EPS series, 250,000 tons of mortar products, 800,000 cubic meters of AAC concrete panels, and integrated AAC insulation wall panels.
How do XPS extruded polystyrene boards compare to other traditional insulation materials?
Compared to other insulation materials, XPS offers a higher R-value per inch, superior moisture resistance, and is less prone to damage from pests or mold compared to traditional fiberglass or cellulose.
Can XPS extruded polystyrene boards be used in outdoor applications?
Yes, extruded polystyrene boards are highly suitable for outdoor applications, particularly below grade or as part of waterproofing systems due to their excellent resistance to moisture.
What are the primary applications of graphite polystyrene insulation foam boards?
Graphite polystyrene boards are widely used in building interior and exterior wall insulation systems, roof insulation, composite insulation panels, refrigeration equipment, cold storage, and as protective layers for waterproofing.
Why should I choose graphite insulation board over traditional options?
Graphite XPS/EPS insulation boards feature polymer foam integrated with graphite powder, which dramatically improves thermal efficiency. They are lightweight, easy to install, have excellent fire resistance properties (Class B classification), and offer superior energy saving performance.
